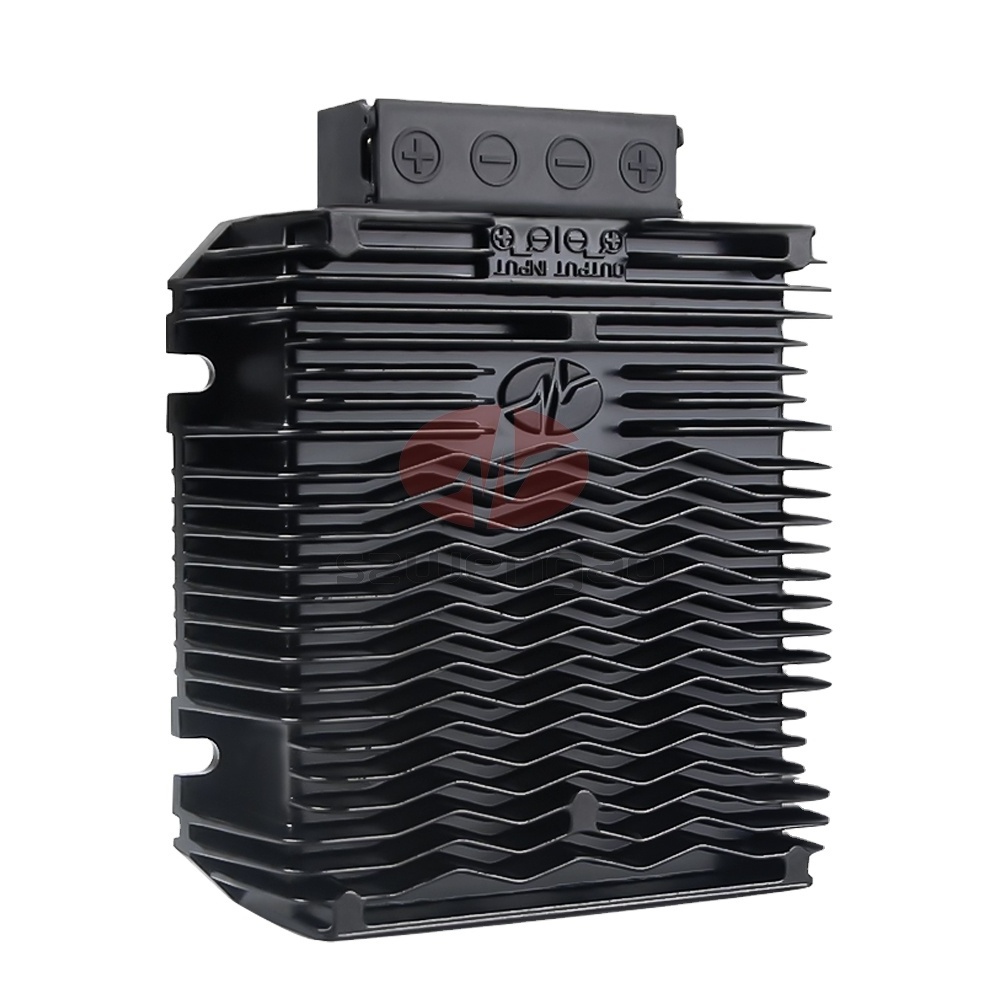

DC 10-30V 12V 24V to DC 58.4V 10A 600W LiFePO4 LiMn2O4 Battery Charger
DC 10-30V 12V 24V to DC 58.4V 10A 600W LiFePO4 LiMn2O4 Battery Charger
DC 10-30V 12V 24V to DC 58.4V 10A 600W LiFePO4 LiMn2O4 Battery Charger
DC 10-30V 12V 24V to DC 58.4V 10A 600W LiFePO4 LiMn2O4 Battery Charger
DC 10-30V 12V 24V to DC 58.4V 10A 600W LiFePO4 LiMn2O4 Battery Charger
DC 10-30V 12V 24V to DC 58.4V 10A 600W LiFePO4 LiMn2O4 Battery Charger
DC 10-30V 12V 24V to DC 58.4V 10A 600W LiFePO4 LiMn2O4 Battery Charger
DC 10-30V 12V 24V to DC 58.4V 10A 600W LiFePO4 LiMn2O4 Battery Charger

DC 10-30V 12V 24V to DC 58.4V 10A 600W LiFePO4 LiMn2O4 Battery Charger

FOB Reference Price: Get Latest Price
≥5 Pieces
US $79
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
szwengao
Model Number:
WG-12C4810M
Output Frequency:
50/60HZ
Size:
140*120*42.5mm
Weight:
1.2kg
Product name:
DC DC charger
Application:
LiFePO4 and LiMn2O4 batteries charger
Protection:
Short Circuit
Warranty:
2 Years
Efficiency:
94.5%
Input voltage range:
10-30V
Output Voltage:
58.4V
Waterproof:
IP65
Low voltage protection:
YES
Over temperature protection:
YES
Certificate:
CE/RoHS

Quick Details

Output Current:
10A
Network:
NONE
Customized support:
YES
Place of Origin:
Guangdong, China
Brand Name:
szwengao
Model Number:
WG-12C4810M
Output Frequency:
50/60HZ
Size:
140*120*42.5mm
Weight:
1.2kg
Product name:
DC DC charger
Application:
LiFePO4 and LiMn2O4 batteries charger
Protection:
Short Circuit
Warranty:
2 Years
Efficiency:
94.5%
Input voltage range:
10-30V
Output Voltage:
58.4V
Waterproof:
IP65
Low voltage protection:
YES
Over temperature protection:
YES
Certificate:
CE/RoHS
Product Paramenters

  • * Product Features

● Design meeting by CE, RoHS
● High efficiency: 94.5%
● Special design for LiFePO4 and LiMn2O4 batteries CC/CV Value
● Mount in almost any location
● Over temperature protection
● Over-current protection
● Low -voltage protection
● Short circuit protection
● Epoxy potting, w aterproof protection
● Aluminum shell, surface mountable
● Cooling by free air convection
● 2 years limited warranty
Product name
DC to DC Waterproof Battery Charger
Brand
szwengao
Model no.
WG-12C4810M
Input rated voltage
12V/24V DC
Input voltage range
10-30V DC
Efficiency
94.5%
Output voltage
58.4V DC
Output max. rated current
10A
Output max. rated power
600W
Voltage regulation
< 1%
Load regulation
< 2%
No load loss
72mA
Ripple & noise
100-500mVp-p
Working temperature
-40℃ ~ +55℃
Working humidity
10% ~ 90%RH
Storage temperature
-40 ~ +100°c
Weight
≤ 1.2kg
Dimension
140*120*42.5mm ( 5.51*4.72*1.67 inch )
Input connect type
Terminals
Output connect type
Terminals
Packing type
Box
Cooling
Cooling by free air convection
Note: specifications typical @ Ta=25 °C(77°F), Vin =12V/24V,  Vout =58.4V, unless otherwise specified.
Product Pictures
NOTICE
A. Be sure to make the correct connection according to the product nameplate and the wire marking. The wrong connection will cause the damage of the product, and even result in the danger of fire and so on.
B. To ensure safety, a fuse should be connected to the input terminal to prevent the permanent damage caused by wrong connection of positive and negative pole and over-voltage. Some products have been installed the fuse before leaving the factory, and due to the current reason, you’d better match fuse for those products with no fuse.
Details Images

ALUMINUM SHELL

Three-sided heat sinks, better heat conduction effect.

ORGANIC SILICA GEL POTTING

IP68 protection grade, waterproof, dustproof and anti-seismic.

NICKEL-PLATED TERMINALS

Simple, Reliable and Stable

IMPORTED COMPONENTS

Import of original industrial chips & capacitances ( such as TI, NCC, NICHICON and so on).

GIFT BOX

12PCS/CTN, Outer carton size 40*25*23CM
Total weight 15KGS/CTN

APPLICATIONS

Rail transit, communications, electrical equipment, ships, renewable energy, LED Marketplaces and so on..
Related Products
Model
Input voltage
Output voltage
Output power
Sample price/pcs
WG-12S2430
12V DC
24V DC
0 ~ 720W
USD $43.00
WG-12S2450
12V DC
24V DC
0 ~ 1200W
USD $75.00
WG-12S2410
12V DC
24V DC
0 ~ 240W
USD $7.50
WG-12S2405
12V DC
24V DC
0 ~ 120W
USD $6.20
WG-12S2403
12V DC
24V DC
0 ~ 72W
USD $3.90
PRODUCT CATEGORIES
36V/48V to 12V
24V to 12V
12V/24V to 5V
8-40V to 12V
9-40V to 24V
36V/48V to 13.8V
24V to 13.8V
12V/24V to 6V
8-40V to 13.8V
9-40V to 19V
12V to 24V
12V to 36V
12V to 48V
12V to 19V
24V to 48V
DC to DC Battery Charger
more >>
Packing&Shipping
All the items are packaged by a box, then use a large outer cartons. Sample(usually 1-50 pcs) orders we make shipment within 48 business hours by DHL, UPS, EMS, FEDEX and TNT from Shenzhen or Hongkong
All the price not including Tax fees.
If you need assistance setting up or using your SZWENGAO product now or in the future, call SZWENGAO support.
Tel: +86 0755-29418061, Email: info@wengaoelec.com
Why Choose Us

Great Service

“We will always be there when you need power protection solution.” the customer service is available 24/7.
Enough in stock, after receive payment 1-3 working days arrange shipment.

Best Quality

We have our own professional testing equipment, all items will strictly selected and tested by QC department.
According to: ISO 9001: 2015

R&D Team

We have more than 15 years experience in power supply. OEM/ODM is welcome to our company.

Best Price

100% factory price, Cut down the cost you paid to the middle man. “Provide customers with high cost performance and high stability products.”

Process Flow

Experience, High R&D quality. Your partner in reliable power products.
FAQ

What is the DC-DC Converter?

A dc-dc converter is electronic circuit. The main function of this circuit is to modify one potential difference (i.e., voltage)
level to another potential difference level. It is basically a voltage regulator consisting of switches, inductor, and capacitor
for power conversion.

Can I get one for sample?

Yes, we accept sample order or trial order for testing first.

Do you have your own factory?

100% Yes, we are professional manufacturer mainly in DC/DC Converters & Battery Chargers for about 10 years. Our factory is located in Shenzhen of China.

What's the price and MOQ?

Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.

What's you delivery time?

We have in enough stock for standard products, usually sample order shipment with 48 business hours. 5-7 working days for batch order

How about your warranty?

We provide 1, 3 and 5 years warranty for different products and whole life technical support.
