Quick Details
-
Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
48 m'm
-
Width of bed (mm):
-
260 mm
-
Spindle Motor Power(kW):
-
3kw
-
Travel (X Axis)(mm):
-
460 mm
-
Travel (Z Axis)(mm):
-
630 mm
-
Positioning Accuracy (mm):
-
0.01mm
-
Repeatability (X/Y/Z) (mm):
-
0.01mm
-
Place of Origin:
-
Shanghai, China
-
Dimension(L*W*H):
-
1820*1270*1700mm
-
Brand Name:
-
GUBOT
-
Model Number:
-
GBT-LSB300
-
Voltage:
-
220V/380V
-
Weight (KG):
-
1100
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
-
CNC or Not:
-
CNC
-
Color:
-
Any color according to your request
-
Scanner:
-
Laser scanner
-
Max. Swing Diameter (mm):
-
610 mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
United Kingdom
-
Certification:
-
CE
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
610 mm
-
Year:
-
2020
-
Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
48 m'm
-
Width of bed (mm):
-
260 mm
-
Spindle Motor Power(kW):
-
3kw
-
Travel (X Axis)(mm):
-
460 mm
-
Travel (Z Axis)(mm):
-
630 mm
-
Positioning Accuracy (mm):
-
0.01mm
-
Repeatability (X/Y/Z) (mm):
-
0.01mm
-
Place of Origin:
-
Shanghai, China
-
Dimension(L*W*H):
-
1820*1270*1700mm
-
Brand Name:
-
GUBOT
-
Model Number:
-
GBT-LSB300
-
Voltage:
-
220V/380V
-
Weight (KG):
-
1100
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts
-
CNC or Not:
-
CNC
-
Color:
-
Any color according to your request
-
Scanner:
-
Laser scanner
-
Max. Swing Diameter (mm):
-
610 mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
United Kingdom
-
Certification:
-
CE
Product Description

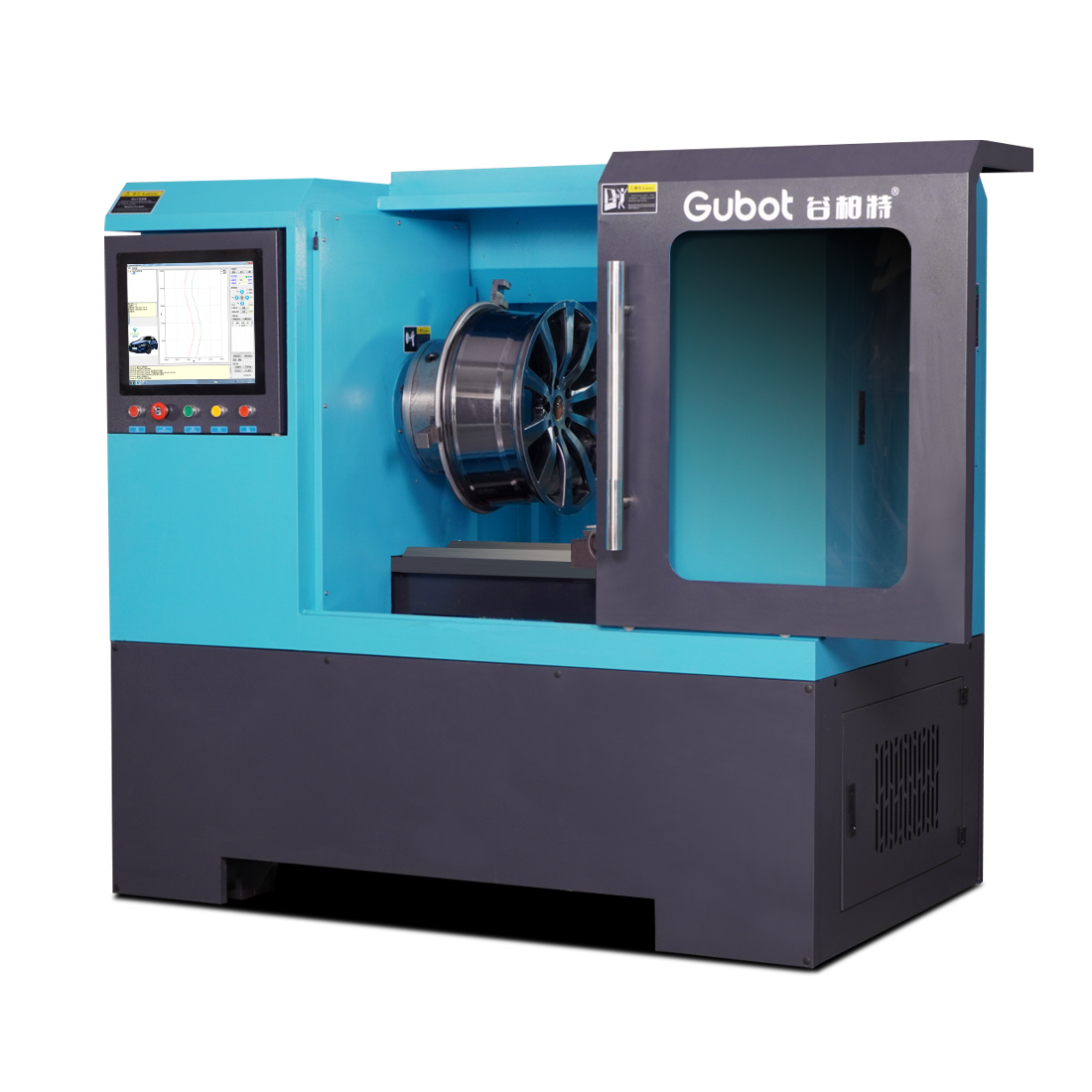

CNC alloy wheel repair lathe machines are designed for repair and refurbish alloy wheel , Be applied to the full face and lip of the wheel. The machine is very easy to operate ,operator don’t need to learn complicated programme and do higher efficiency ,spectacular finishes.
Gubot alloy wheel repair machine :
1.
The fixed central shaft mode is very stable during the high-speed rotation of the wheel ; 2.It can repair not only the wheel , but also the brake disc ; 3.Three jaw chuck is also available.
Specification
|
Items
|
Unit
|
Specifications
|
|
Max. Swing Diameter
|
mm
|
610
|
|
Max. Size of alloy wheel
|
Inch
|
24
|
|
Spindle speed (frequency conversion)
|
r/min
|
0-2000
|
|
Max. Spindle Speed
|
r.p.m
|
2000
|
|
Cutting feed speed (mm)
|
mm/min
|
0.1-1800
|
|
X axis travel distance
|
mm/min
|
12000
|
|
Z axis travel distance
|
mm/min
|
18000
|
|
Spindle length
|
mm
|
630
|
|
Positioning Accuracy
|
mm
|
0.01
|
|
Repeatability (X/Y/Z)
|
mm
|
0.01
|
|
Spindle Motor Power
|
kW
|
3
|
|
Weight
|
KG
|
1100
|
|
Dimension(L*W*H)
|
mm
|
1820*1270*1700
|
Details Images
Product Advantages
1.Components:
Use servo motor, it is stabler and low noise than stepper motor. And we use Panasonic high-precision infrared laser detector.
2.Remote control: If the wheel diamond cut machine has any problems, we can remote control to solve the problems for you.
3.Remember function and wireless online: This machine has remember function,so you only need scan once time for same wheels.
4.Software: Self-developed”Gubotlathe” control software, and we will update it in 6 month, free update to the latest software.
5.Appearance: Our machine appearance is designed for wheel diamond cut machine, not change from other CNC wheel lathe machine. It has beautiful appearance and reasonable.
6.17 inch LCD touch screen , windows 7 operation system. Easy to operate.
7.Self-lubricating system.
8.Laser scanner: High precious and only two minutes to scan wheels surface.
9.Our wheel diamond cut machine is easy to learn, no need to program, It only need half day to study this machine for a new person.
10.Cost-effective, good quality with competitive price.
2.Remote control: If the wheel diamond cut machine has any problems, we can remote control to solve the problems for you.
3.Remember function and wireless online: This machine has remember function,so you only need scan once time for same wheels.
4.Software: Self-developed”Gubotlathe” control software, and we will update it in 6 month, free update to the latest software.
5.Appearance: Our machine appearance is designed for wheel diamond cut machine, not change from other CNC wheel lathe machine. It has beautiful appearance and reasonable.
6.17 inch LCD touch screen , windows 7 operation system. Easy to operate.
7.Self-lubricating system.
8.Laser scanner: High precious and only two minutes to scan wheels surface.
9.Our wheel diamond cut machine is easy to learn, no need to program, It only need half day to study this machine for a new person.
10.Cost-effective, good quality with competitive price.
Wheel Repair Photos
Recommend Products
Packing & Delivery
PACKAGE:
We use the wooden pack the machine and it will be very safe to ship.And the machine will not be damaged during transportation.
DELIVERY TIME:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
