- Product Details
- {{item.text}}
Quick Details
-
Rated voltage:
-
110V or 240V
-
Max Ambient Temperature::
-
40℃
-
Rated current::
-
12A
-
Protection Degree:
-
IP20
-
Pressure Setting::
-
20-40psi, 30-50psi, 40-60psi, 50-70psi, 60-80psi, 70-100psi
-
Max Liquid Temperature:
-
60℃
-
Frequency:
-
50/60Hz
-
Pressure Range:
-
20-100psi
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Model Number:
-
DT01
-
Rated voltage:
-
110V or 240V
-
Max Ambient Temperature::
-
40℃
-
Rated current::
-
12A
-
Protection Degree:
-
IP20
-
Pressure Setting::
-
20-40psi, 30-50psi, 40-60psi, 50-70psi, 60-80psi, 70-100psi
-
Max Liquid Temperature:
-
60℃
-
Frequency:
-
50/60Hz
-
Pressure Range:
-
20-100psi
Product Description
TECHNICAL DATA
1. Pressure Range: 20-100psi
2. Pressure Setting:
20-40psi, 30-50psi, 40-60psi,
50-70psi, 60-80psi, 70-100psi
3. Rated Current: 12A
4. Rated Voltage: 110V or 240V
5. Frequency: 50/60Hz
6. Max Ambient Temperature: 40℃
7. Max Liquid Temperature: 60℃
8. Protection Degree: IP20
DESCRIPTIONS

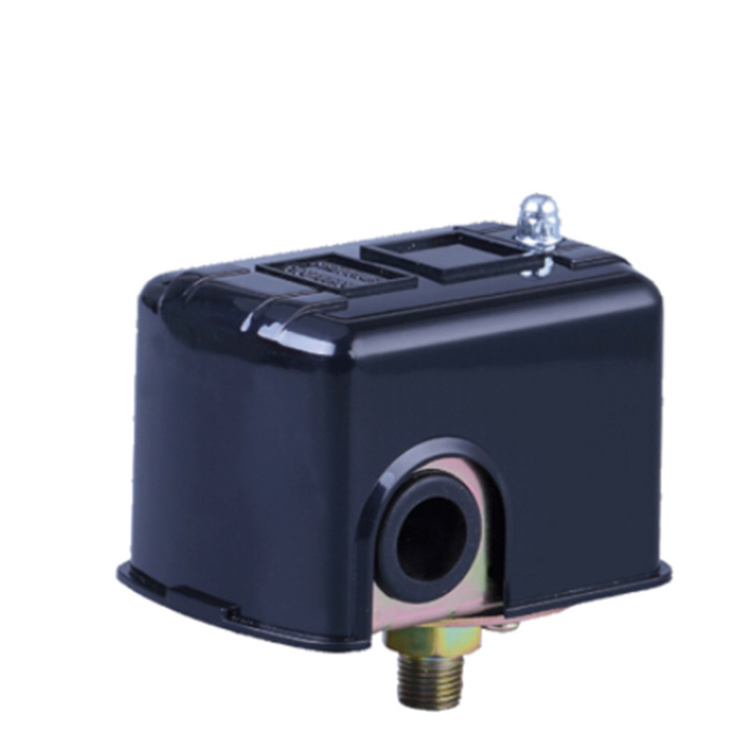

1. Pressure switch used in water systems
2. The switch start and stop the water pump automatically according to the pressure setting
3. Hydraulics connection can choose: 1/4" Male & Female & Rotative
OPTIONS
1. Cover according to customers' needs.
2. Hydraulics connection according to customers' needs..
3. Pressure setting according to customers' needs.
PACKING INFORMATION
| CARTON SIZE(CM) | 43x38x20 |
| PCS/CTN | 50 |
| N.W.(KGS) | 16.7 |
| G.W.(KGS) | 17.6 |
| 20GP QUATITIES(PCS) | 37500 |
