Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM/ODM
-
Model Number:
-
HST-A2
-
Product name:
-

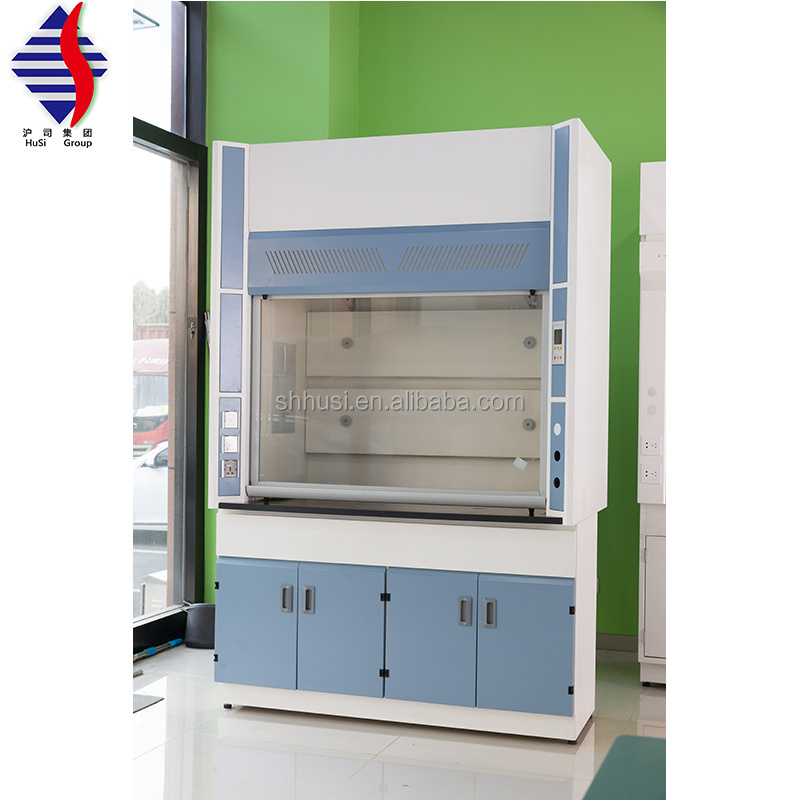

laboratory fume cupboards
-
Feature:
-
impact-resistant
-
Feature1:
-
chemical-resistant
-
Feature2:
-
fireproof
-
Feature3:
-
waterproof
-
Feature4:
-
High temperature resistance
-
Feature5:
-
Peripheral thickening
-
Color:
-
Milky white
-
Power:
-
42W
-
Display screen:
-
7 inch LCD touch screen
Quick Details
-
Application:
-
laboratory
-
Design Style:
-
Modern
-
Material:
-
steel
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM/ODM
-
Model Number:
-
HST-A2
-
Product name:
-
laboratory fume cupboards
-
Feature:
-
impact-resistant
-
Feature1:
-
chemical-resistant
-
Feature2:
-
fireproof
-
Feature3:
-
waterproof
-
Feature4:
-
High temperature resistance
-
Feature5:
-
Peripheral thickening
-
Color:
-
Milky white
-
Power:
-
42W
-
Display screen:
-
7 inch LCD touch screen
1, steel fume hood: Use the steel of Shanghai Baogang or the same grade 1.2mm cold-rolled steel bending forming, surface after Akzo Nobel EPOXY spray anti-corrosion treatment.
2, countertops: solid physical and chemical board, epoxy board, ceramic board, marble, the edge into the arc edge. The outer edge of two-way arc chamfer; it can resist acid, alkali, strong oxidizer and other corrosion reagents. (Thickness, brand customer matching)
3, the OTC liner: the thickness of 6mm Shanghai VIA Anti-Beat board, the side configuration window for maintenance of waterway, circuit or gas line maintenance; the use of three-stage design allows experiment with different proportion of harmful gases can be effective, faster discharge.
4, Windows: 5mm thick safety glass, window with stainless steel chain drive, counterweight, CVT balance weight design, lifting freely, height can be parked in any position, no noise, greatly extending the service life; Automatic homing function (with self-rebounding pulley cable and automatic return belt), the opening height above the center, the window has an automatic return to the middle of the function.
5, Suspension cable: The use of synchronous belt or stainless steel chain push and pull connection to ensure the stability of the control door lift at the same time achieve the best anti-corrosion effect, the belt core with 7 wires to ensure that the belt bearing capacity is much higher than the weight of the weight.
6, Set hood: the use of PVC welding material forming, with condensate tank function.
7, LCD control panel: After the controller is powered on, the buzzer beeps once, the red indicator lights up, and the system enters the standby state. In standby mode, pressing the [On / Off] button will activate the controller. At this point green light is on, LCD backlight is on.
8, noise (and ventilation system supporting): ≤ 60dB (GB).
9, Other: Equipped with electronic display device to ensure that the exhaust volume is the minimum reasonable value in actual use, noise (and ventilation system): ≤ 60dB (GB).
10, adjust the feet: special corrosion-resistant laboratory dedicated plastic injection feet, adjustable height 30mm-50m
