- Product Details
- {{item.text}}
Quick Details
-
type:
-
ordinary type, anti-theft and anti-knock , underground type
-
working pressure:
-
16bar
-
strength pressure:
-
24bar
-
material:
-
cast iron
-
applicable medium:
-
clean water
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
sanxing
-
Model Number:
-
DN100
-
type:
-
ordinary type, anti-theft and anti-knock , underground type
-
working pressure:
-
16bar
-
strength pressure:
-
24bar
-
material:
-
cast iron
-
applicable medium:
-
clean water
Product Paramenters
outer door fire hydrant, indoor fire hydrant valves, fittings
1.Height of valve opening: 23 mm
2.For water and foam mixed liquid only
3.Standard: certification: ISO9001 in accordance with GB3445 china national standard
4.Technology data:
1.Height of valve opening: 23 mm
2.For water and foam mixed liquid only
3.Standard: certification: ISO9001 in accordance with GB3445 china national standard
4.Technology data:
|
Type
|

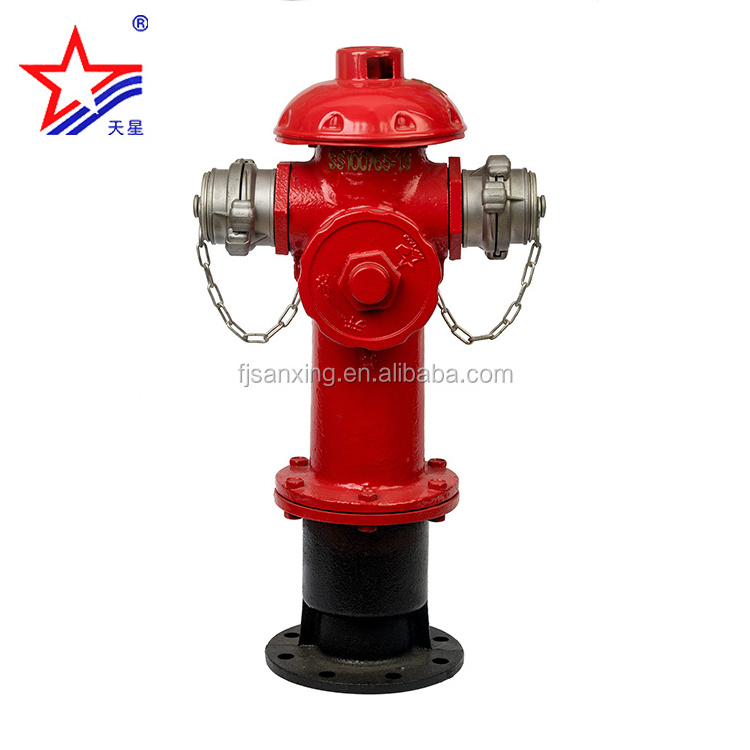

SSFT OUTDOOR HYDRANT
|
SSFT OUTDOOR HYDRANT
|
|
|
Model
|
SSFT100/65-1.6
|
SSFT150/80(65)-1.6
|
|
|
(mm)Nominal Bore
|
100
|
150
|
|
|
Nominal Pressure (Mpa)
|
1.6
|
1.6
|
|
|
Strength test pressure (Mpa)
|
2.4
|
2.4
|
|
|
Outlet interface specification
|
KWS65×2
|
KWS80×2(KWS65×2)
|
|
|
inlet Specifications
|
M125×6
|
M170×6
|
|
|
Matching Flange
|
DN100 PN16
|
DN150 PN16
|
|
|
The high Range L(m)
|
0.7-3.5
|
0.9-5.5
|
|
|
Applicable Medium
|
Fire water (If is sea water ,need to additional anti-corrosion measure)
|
|
|
Products Description
Packing & Delivery
PP bags or cartons. They would be packed by carton or polybay or according to customer's requirement.
