Quick Details
-
Production Capacity:
-
100bag/min
-
Weight (KG):
-
670
-
Voltage:
-
220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YOUNA
-
Name:
-
automatic tea packaging machine
-
volt:
-
220V/50Hz
-
power:
-
2kw
-
packing range:
-
3-15ml customized
-
packing speed:
-
70-100bag/min
-
shipment:
-
by sea
-
packing:
-
export wooden case
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Film, Pouch
-
Packaging Material:
-
Plastic, Nylon
-
Production Capacity:
-
100bag/min
-
Weight (KG):
-
670
-
Voltage:
-
220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YOUNA
-
Name:
-
automatic tea packaging machine
-
volt:
-
220V/50Hz
-
power:
-
2kw
-
packing range:
-
3-15ml customized
-
packing speed:
-
70-100bag/min
-
shipment:
-
by sea
-
packing:
-
export wooden case
-
Marketing Type:
-
Ordinary Product
Product Description

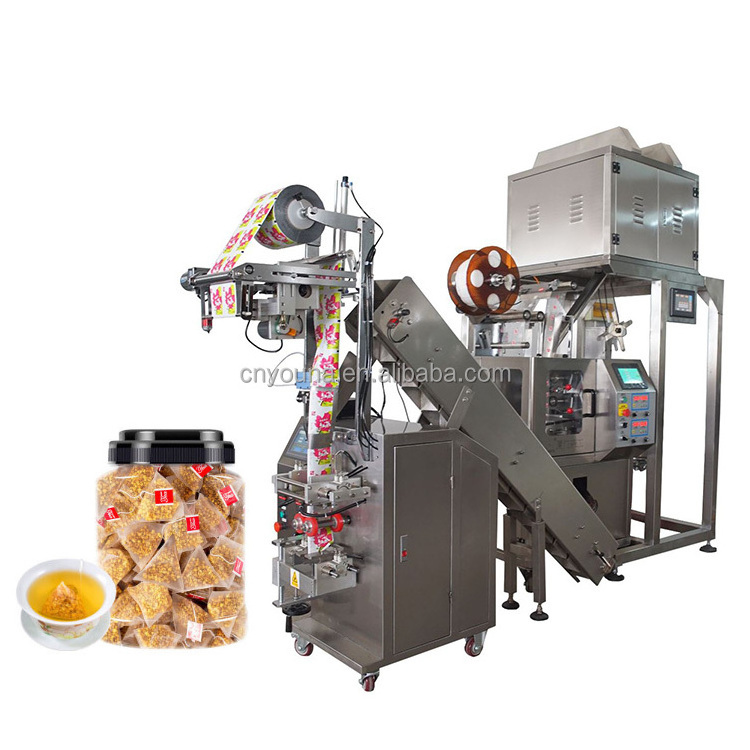

Automatic Triangle Tea Sachet Packaging Machine Nylon Pyramids Tea Bag Packing Machine
This Triangle tea bag packing machine has a wide range of applications, such as: green tea, black tea, flower tea, health tea, and other small granular materials, the finished bags are formed into triangles.And then packing with a outer 3sides or 4 sides sachet.
Application
1. The tea packing machine is suitable for filling and sealing small granule materials, such as flower tea, herbs, green tea,
black tea, mix tea and so on.
2. PLC control system, color touch screen, this machine is a latest type of heated sealing packing machine, which has
multifunction, can automatically packing.
3. The main feature of the machine is one-time packing for the thread, tag and outer bag, 4,avoiding hands directly contacting with stuff materials, improving the efficiency.
5,The bucket packing machine can pack inner bag into outer bag automatically,
The inner teabag is made of filter paper or nylon, the outer bag is made of compound material, such as Paper/PE, PET/PE, etc.
6,The advantages are photoelectric location for the tag and outer bag, adjustment to the need of the content, length of bag, and tag.
7,The dimension of bag can be adjusted according to the need that to achieve the good look shape, to upgrade the appearance for the product, then add the value of it.
black tea, mix tea and so on.
2. PLC control system, color touch screen, this machine is a latest type of heated sealing packing machine, which has
multifunction, can automatically packing.
3. The main feature of the machine is one-time packing for the thread, tag and outer bag, 4,avoiding hands directly contacting with stuff materials, improving the efficiency.
5,The bucket packing machine can pack inner bag into outer bag automatically,
The inner teabag is made of filter paper or nylon, the outer bag is made of compound material, such as Paper/PE, PET/PE, etc.
6,The advantages are photoelectric location for the tag and outer bag, adjustment to the need of the content, length of bag, and tag.
7,The dimension of bag can be adjusted according to the need that to achieve the good look shape, to upgrade the appearance for the product, then add the value of it.
Specification
|
Measuring Scope
|
1 - 10 g
|
|
Bag size
|
( L ) : 45 - 90mm
( W ) : 40 - 90mm |
|
Packing Speed
|
70-100 bags/min
|
|
Dimension ( L * W * H )
|
1350 * 1150 * 2260 mm
|
|
Weight
|
260-410 kg
|
|
Total Power
|
AC220V / 50Hz / 2.0kw
|
|
Gas source
|
≥0.6Mpa
|

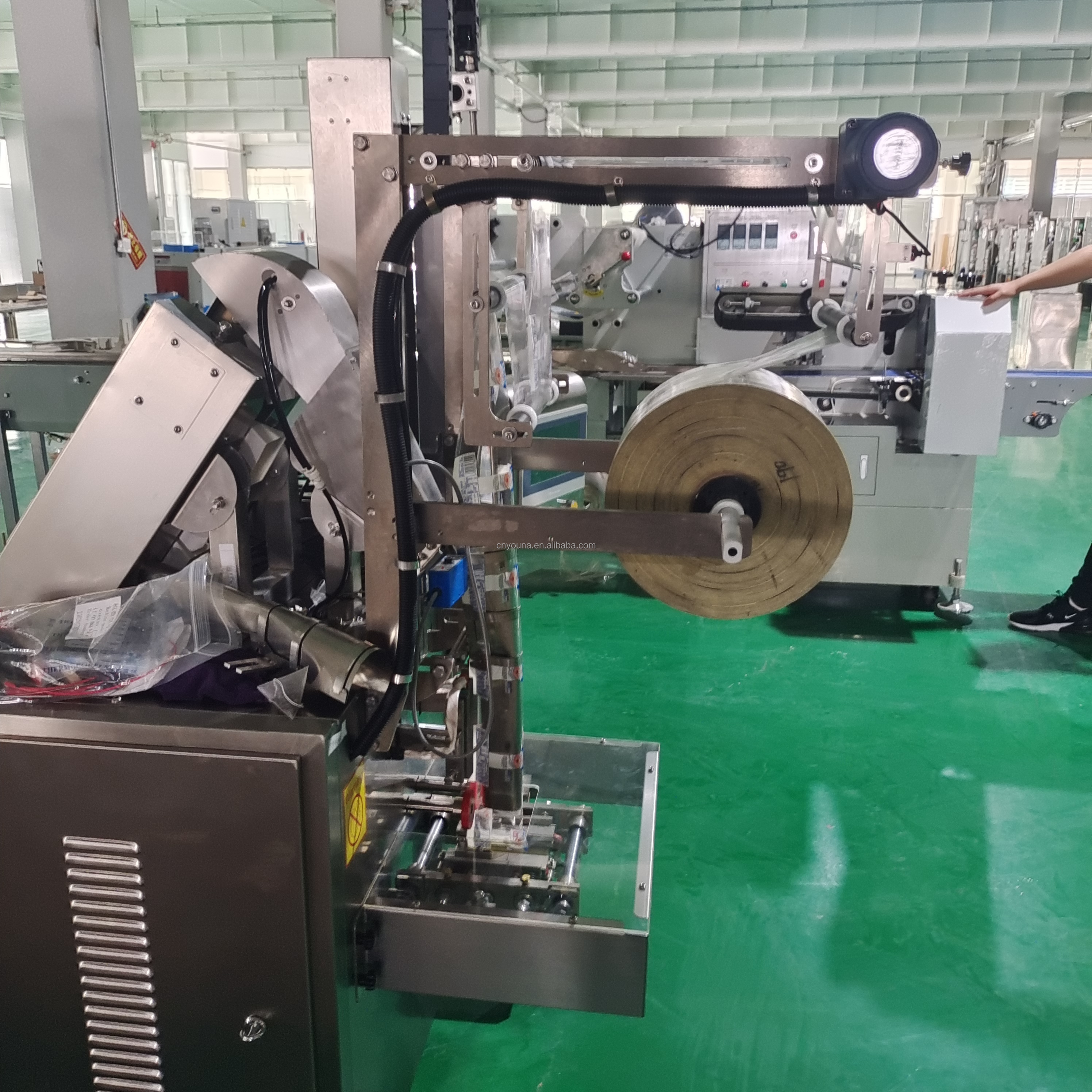

Product shows
Features
Measuring cup
Sealing part
Roll film
Touch screen
Rope
Conveyor belt
1.PLC control, touch screen operation, automatic parameter adjustment, simple and convenient operation.
2. Hanging the line and label at one time to avoid direct contact between human hands and boredom.
3. It can automatically complete bag making, measuring, blanking, sewing, slitting, counting and other functions.
4. The variable frequency speed regulating motor is adopted, with low
noise, good stability and high speed.
noise, good stability and high speed.
5. Intelligent temperature controller with PID regulation ensures that the error range of temperature is controlled within 1 ℃.
6. The packaging capacity, bag width and label size can be adjusted as required.
7. The shell is 304 stainless steel structure, which meets the requirements of food hygiene.
8. The high-precision stepper motor controls the bag length, which is accurate in positioning and convenient in adjustment.
