Quick Details
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
Link-Signal
-
Model Number:
-
LS-M12-8XM-S-RJ45M-100 & LS-M12-8XF-S-RJ45M-100
-
Product name:
-
2/3/4/5/8/12/17Pin M12 Circular Connector
-
Number of Contacts:
-
8Pin
-
Orientation:
-
Straight
-
Keywords:
-
M12 Connector
-
Termination:
-
Soldering
-
Connector Insert:
-
TPU/PA
-
Coupling Nut/Screw:
-
Brass with Nickel Plated
-
Connector Contacts:
-
Brass with gold plated
-
Payment:
-
Paypal\TT\Western Union\Trade Assurance
Quick Details
-
Type:
-
M12 RJ45 Ethernet Cables
-
Application:
-
Industrial and Automative
-
Gender:
-
Male/Female
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
Link-Signal
-
Model Number:
-
LS-M12-8XM-S-RJ45M-100 & LS-M12-8XF-S-RJ45M-100
-
Product name:
-
2/3/4/5/8/12/17Pin M12 Circular Connector
-
Number of Contacts:
-
8Pin
-
Orientation:
-
Straight
-
Keywords:
-
M12 Connector
-
Termination:
-
Soldering
-
Connector Insert:
-
TPU/PA
-
Coupling Nut/Screw:
-
Brass with Nickel Plated
-
Connector Contacts:
-
Brass with gold plated
-
Payment:
-
Paypal\TT\Western Union\Trade Assurance
Product Description

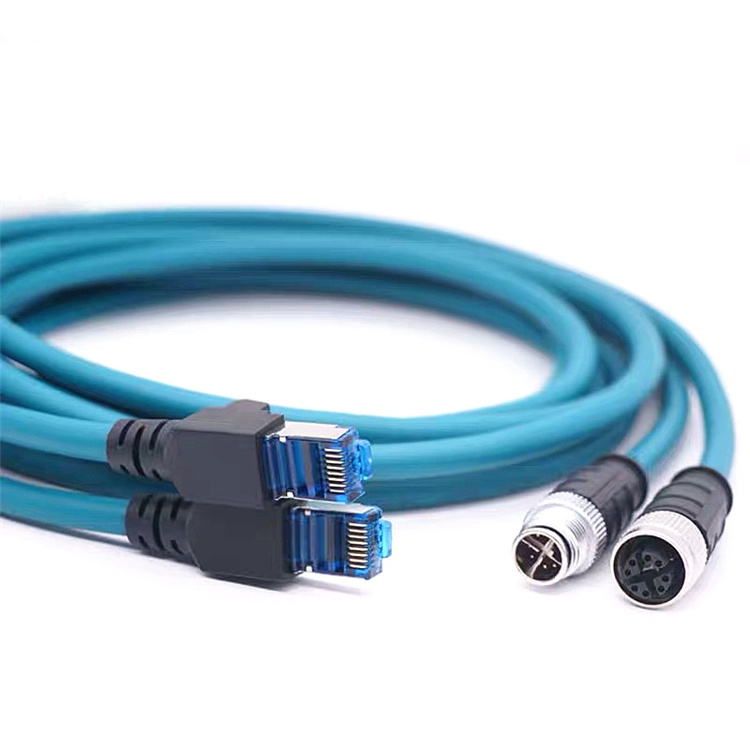

M12 Series Overmolded Cables
The M12 Circular Connectors is the connector of 12mm metric size with thread locking mechanism, which is most used in factory automation, connecting with sensors, robots, motors, packing and delivery system.
Link Signal Electronics Provides the
M12 Overmold Male /Female Straight /Angled Connector to RJ45 Plug/Socket Cables.
Quick Details:
* Series: Overmolded M12 RJ45 Ethernet Cables
* Pin Numbers: 2, 3, 4, 5, 6, 8,12, 17 Poles are acceptable
* Gender: Male/Female
* Termination Type: Soldering with Single End or Double End
* Code: A, B, C, D, X Code are acceptable
* Feature: Water and Dustproof to IP67 when mated with compatible connector
Technical Overview Data
|
Product Series
|
M12 RJ45 Ethernet Cable
|
IP rating
|
IP67
|
|
Pin numbers
|
3Pin/4Pin/5Pin/6Pin/8Pin/12Pin/17Pin
|
Mating cycle
|
＞500
|
|
Locking Mechanism
|
Screw Coupling
|
Contact Resistance
|
<5mΩ
|
|
Termination
|
Soldering
|
Insulation Resistance
|
>100mΩ
|
|
Shell material
|
Nickel Plated Brass
|
Temperature range
|
-25℃~ +85℃
|
|
Insert material
|
PA66
|
Rated voltage
|
60V~30V
|
|
Contact material
|
Brass with gold Plated
|
Rated current
|
4A/2A/1.5A
|
Different Types Industrial Ethernet Cables M12 TO RJ45 Ethernet Cables / Networking Cables
M12 A Code 4Pin/8Pin Male/Female Straight/Angled to RJ45 Cables
M12 D Code 4Pin Male/Female Straight/Angled to RJ45 Cables
M12 X Code 8Pin Male/Female Straight/Angled to RJ45 Cables
M12 X Code 8Pin Male/Female Straight/Angled to RJ45 Cables
WE ALSO ACCEPT CUSTOM CABLES
If any questions please ask us freely, more details will be shared ASAP !!!
Email: sara@linksignal.cn Skype: 13260567632
