Quick Details
-
gas engine type:
-
small syngas/ natural gas/ biogas engine
-
Certificate:
-
CE ISO
-
gas generator Warranty:
-
1 Year or 2000 running hours
-
gas generator Type:
-
small syngas/ biogas/ natural gas engine turbine generator
-
gas generator optional devices:
-
ATS, CHP, Silent canopy, container, synchronous system etc.
-
generator air intake method:
-
gas engine turbine generator set
-
Control panel:
-
Deepsea, Comap, Smartgen
-
Alternator:
-
Leroy Somer, Marathon, Stamford , Mecc Alte
Quick Details
-
Place of Origin:
-
Shandong, China
-
Gas Generator Name:
-
500KW small syngas/ natural gas/ biogas engine turbine generator set
-
gas generator fuel:
-
syngas/ natural gas/ biogas generator
-
gas engine type:
-
small syngas/ natural gas/ biogas engine
-
Certificate:
-
CE ISO
-
gas generator Warranty:
-
1 Year or 2000 running hours
-
gas generator Type:
-
small syngas/ biogas/ natural gas engine turbine generator
-
gas generator optional devices:
-
ATS, CHP, Silent canopy, container, synchronous system etc.
-
generator air intake method:
-
gas engine turbine generator set
-
Control panel:
-
Deepsea, Comap, Smartgen
-
Alternator:
-
Leroy Somer, Marathon, Stamford , Mecc Alte

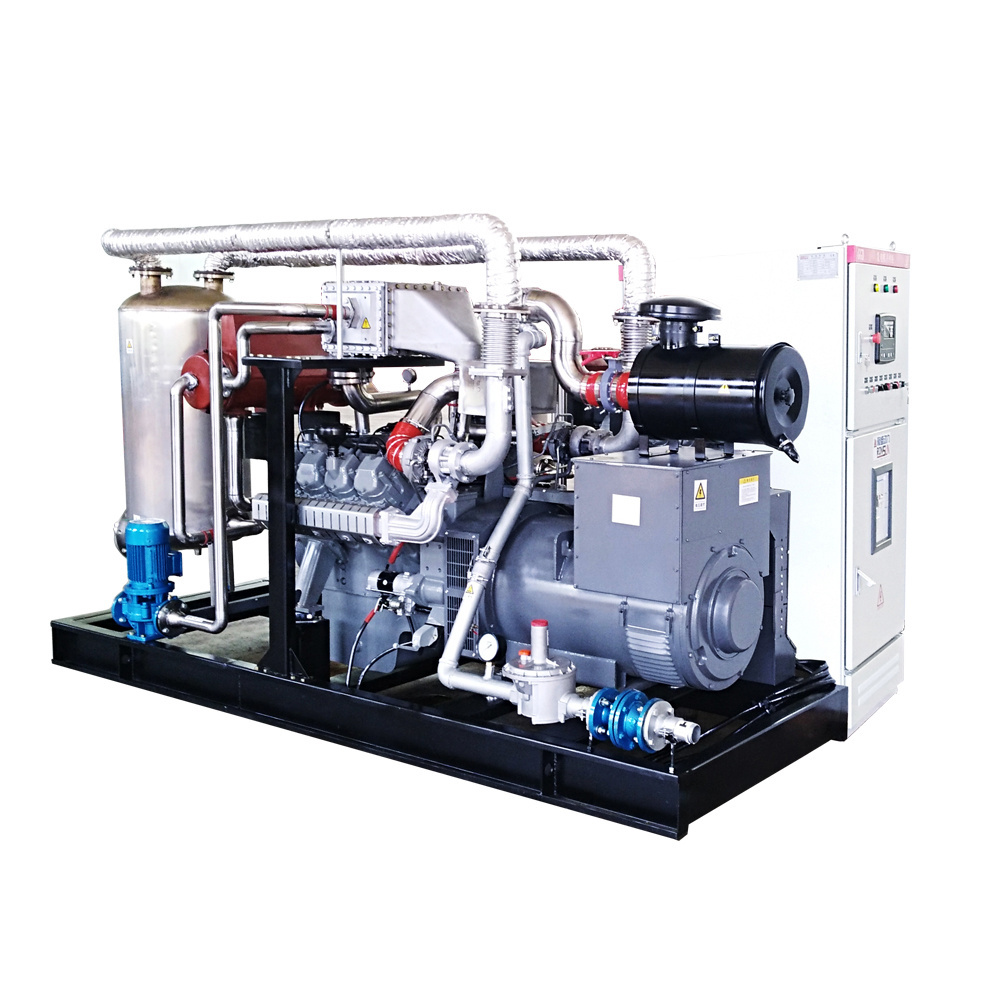

300kva small syngas/ biogas/ natural gas turbine generator 3 phase for sale
Gas turbine generator sets are the basic of any gas powered electric systems. With the size of a single gas turbine generator ranging from 10KW to 1000KW, our small syngas/ biogas/ natural gas turbine generator sets are suitable to places where syngas/ biogas / natural gas fuel storage is restricted, a continuous supply of syngas/ biogas / natural gas is readily available, or there are local environmental considerations that lend preference to gaseous powered equipment.
Our syngas/ biogas / natural gas turbine generator is built with world famous syngas/ biogas / natural gas engines and alternators. As for the syngas/ biogas / natural gas engines, we use deutz engine, steyr engine, MWM engine etc. For Alternators, stamford alternator, mecc alte alternator, leroy somer alternator and other famous brands are chosen. In order to make the syngas/ biogas / natural gas turbine generator set works at its best condition, mostly we will use imported elements, such as the impco gas mixer imported from USA. By using integrated design and manufacturing , our syngas/ biogas / natural gas turbine generator will definitely meet your requirements for reliability, power quality, rated performance, and efficient operation.
Ronsun power brand small syngas/ biogas / natural gas turbine generator are designed for oversea markets.
| Product Name | 300kva small syngas/ biogas/ natural gas turbine turbine generator 3 phase for sale | |
| Genset Model | LS-240GFT | |
| Rated Power | 300kva | |
| Rated Frequency | 50Hz/60Hz | |
| Phases Arrangement | 3P4W | |
| Rated Voltage | 400V/230V | |
| Rated Current | 432A | |
| Rated Power Factor | 0.8 | |
| Engine | Engine Type | syngas/ biogas/ natural gas turbine Engine |
| Engine Model | syngas/ biogas/ natural gas turbine Engine | |
| Engine Power | 260KW | |
| Rated Speed | 1500rpm/1800rpm | |
| Cylinde Qty | V8 | |
| Bore |
128mm
|
|
| Displacement | 14.6L | |
| Air Intake Method | Turbocharged | |
| Speed Regulation | Electronic Governor | |
| Start Method | Electrical Starting | |
| Alternator | Brand | Shanghai Stamford |
| Power | 300kva | |
| Dimension(L*W*H) | 3050*1500*1750mm | |
| Net Weight | 3150kg | |
|
PS: 60Hz@1800rpm natural gas turbine generators are available; Marathon, LeroySomer, Mecc Alte, Siemens and other international brand alternator are available; Soundproof canopy, Container type canopy, CHP, synchronous system are options. |
||
|
Imported high quality gas pressure regulator specially designed for the 300kva or 0.5MW biogas turbine generator set. Can adjust the intake biogas pressure automatically to meet the pressure demand of the biogas turbine generator set. |
|
World famous spark plugs imported from abroad, specially designed for big power biogas turbine generator set, such as 300kva, 1000KW, 1200KW etc. This kind of spark plug will have a strong spark, high ignition ability, even in the cool reason or area, this imported spark plug can also ensure that the egnine starts quickly and reliably. |
| ABB Brand turbocharger specially designed for 300kva output power biogas engine. The specially designed turbocharger has a high efficiency of 68%, will greatly improve the efficiency of the biogas turbine generator set. | |
|
|
HEINZMANN brand ignition control system, specially designed for 8 cylinders biogas engine, have high ignition capabilities. Besides, the high quality ignition control system also has a automatic control function, the ignition controller can shut off automatically when the biogas engine shuts down or runs over speed, will greatly improve the performance of the whole biogas turbine generator set. |
|
INTEGRATED CONTROLL CABINET
It has the features of high integration and strong control function, such as biogas turbine generator running status digital display, emergency starting and stopping, remote controlling, parallel operation, and so on. |
|
PACKAGE PE film and wooden cases are both available for packing. Mostly, PE film will be used for package when we use a whole container for delivery. And sometimes, we will use wooden cases for package when we use a truck for delivery. |
|
| PE Film Packing | Wooden Case Packing |
|
DELIVERY 20GP, 40GP, 40HQ container will be used for delivery. That depends on the quantity of the gas turbine generator sets and requirements from the customers. |
|
| 20GP Container Delivering | 40GP Container Delivering |
|
OUR SERVICES |
|
1. Provide professional technical consultation 2. Help customers choosing the right product type 3. Provide fully detailed technical parameter 4. Help customers to do conceptual designing work. 5. Handover the goods within the delivery time. 6. Tracking the shipment every 3 days and inform the customer 7. Help the customer to do the clearance work 8. Send engineers to the customers to do the installation work and train the operation skills. 9. Provide spare parts for lifetime. Answer and provide solution plans within 24h. |
| OUR WARRANTY |
|
1. Since the bill of loading date, the biogas turbine generator will be guaranteed within 1 year or 2000 running hours, whichever comes first. 2. Provide free door to door service, only the freight and accommodation fees paid by the buyer. 3. Provide spare parts for lifetime, and guarantee sending out the spare parts within 3 days. |
