Automatic Belt Conveying Needle Test Industrial Metal Detector for Baby Clothes
Automatic Belt Conveying Needle Test Industrial Metal Detector for Baby Clothes
Automatic Belt Conveying Needle Test Industrial Metal Detector for Baby Clothes
Automatic Belt Conveying Needle Test Industrial Metal Detector for Baby Clothes
Automatic Belt Conveying Needle Test Industrial Metal Detector for Baby Clothes
Automatic Belt Conveying Needle Test Industrial Metal Detector for Baby Clothes
Automatic Belt Conveying Needle Test Industrial Metal Detector for Baby Clothes
Automatic Belt Conveying Needle Test Industrial Metal Detector for Baby Clothes

Automatic Belt Conveying Needle Test Industrial Metal Detector for Baby Clothes

FOB Reference Price: Get Latest Price
≥1 Sets
US $3300
≥5 Sets
US $3000
≥10 Sets
US $2700
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Rehoo
Model Number:
NDC-D
Material:
Carton steel
Size:
1650*1050*900mm
Name:
Automatic Belt Conveying Needle Test Metal Detector baby clothes
Dimension:
1650mm(L)*1100mm(W)*900mm(H)
Detection method:
Magnetic induction
Detection sensitivity:
0.8mm steel to small scissors
Detection adjustment:
MAX.100 steps/channel
Alarm method:
Buzzer, LED indicator
Belt speed:
32m/min(50HZ);40m/min(60HZ)
Power source:
AC100-240V 50-60Hz
Rated output:
Appr140W
Weight:
Appr 220kg
Battery:
No
Power:
60W

Quick Details

Warranty:
1 year
Type:
Needle Detector
Place of Origin:
Shanghai, China
Brand Name:
Rehoo
Model Number:
NDC-D
Material:
Carton steel
Size:
1650*1050*900mm
Name:
Automatic Belt Conveying Needle Test Metal Detector baby clothes
Dimension:
1650mm(L)*1100mm(W)*900mm(H)
Detection method:
Magnetic induction
Detection sensitivity:
0.8mm steel to small scissors
Detection adjustment:
MAX.100 steps/channel
Alarm method:
Buzzer, LED indicator
Belt speed:
32m/min(50HZ);40m/min(60HZ)
Power source:
AC100-240V 50-60Hz
Rated output:
Appr140W
Weight:
Appr 220kg
Battery:
No
Power:
60W
Product Description

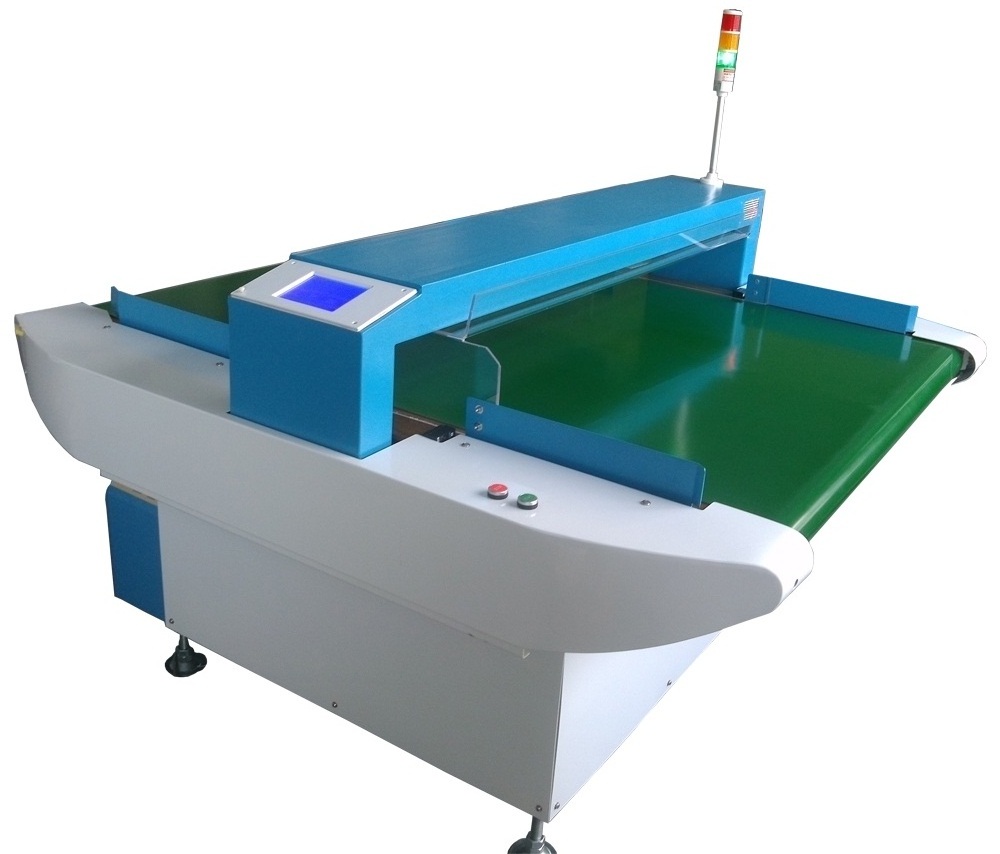

Automatic Belt Conveying Needle Test Metal Detector baby clothes

Brief introduction

Detecting the ferrous metal that load or drop in raw materials and products in the field of toy costume, shoe making, chemical industry, leather, knitting, clothes, textile, bra, baby products, shoes, socks, gloves, etc. Detection lost pin and scrap iron kind of impurities in the products, provide reliable product quality assurance.

Specification:

Model NDC-D Alarm method Buzzzer, LED indicater
Detection method Magnetic induction Belt speed 32m/min(50Hz),40m/min(60Hz)
Detection sensitivity 0.8mm steel to small scissors Power source AC100V-240V 50-60Hz
Detection adjustment MAX.100 steps/channel Rated output Appr 140W
Detection width

650mm

Dimension(L*W*H)

1650mm*1100mm*900mm

Weight Appr 220Kg
Deliver time 15-20 workd rotary knob ays
Package Plywooden case for package suitable for export shipment
Payment term 50%T/T deposit,50% before shipping

Features:

1. Cycled magnetic sensor, excellent anti-disturbance performance.
2. The core system and part of digital signal processing are based on high speed 32bit RISC CPU.
3. Use touch screen technology and based on multi- language operation system.
4. Accurate metal or needle chips locating technology, many customers define fuctions, easy to use.
5. Individual sensiblity adjusting for every channel, fit for more products detecting.
6. Smart report system,provide kinds of report.
7. The control systems are based on Rs-485 bus technology.
8. Installed machine state indicator and operator guider which are based on matrix LED display technology.

Sensitivity:

Height Detection Sensibility Remark
100mm 0.8mm steel to small scissors Standard type
120mm 1.0mm steel to small scissors Option at factory
150mm 1.2-1.5mm steel to small scissors Option at factory
200mm 1.5-2.0mm steel to small scissors Option at factory
