Quick Details
-
Product name:
-
Fiber Optic Circulator
-
Fiber Type:
-
900um loose tube
-
Operation Wavelength Range:
-
1550nm
-
Fiber Diameter:
-
0.9mm
-
Power:
-
300mW
-
Package Size:
-
Dia 5.5*60mm
-
Storage Temperature (°C):
-
-40 ~+85
-
Operating temperature:
-
0 ~+70
-
Polarization Mode Dispersion:
-
≤0.1
-
Connector Type:
-
No connector, FC/APC, customized
Quick Details
-
Type:
-
Optical Fibers
-
Model Number:
-
3-port optic circulator
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Fiber Optic Circulator
-
Fiber Type:
-
900um loose tube
-
Operation Wavelength Range:
-
1550nm
-
Fiber Diameter:
-
0.9mm
-
Power:
-
300mW
-
Package Size:
-
Dia 5.5*60mm
-
Storage Temperature (°C):
-
-40 ~+85
-
Operating temperature:
-
0 ~+70
-
Polarization Mode Dispersion:
-
≤0.1
-
Connector Type:
-
No connector, FC/APC, customized

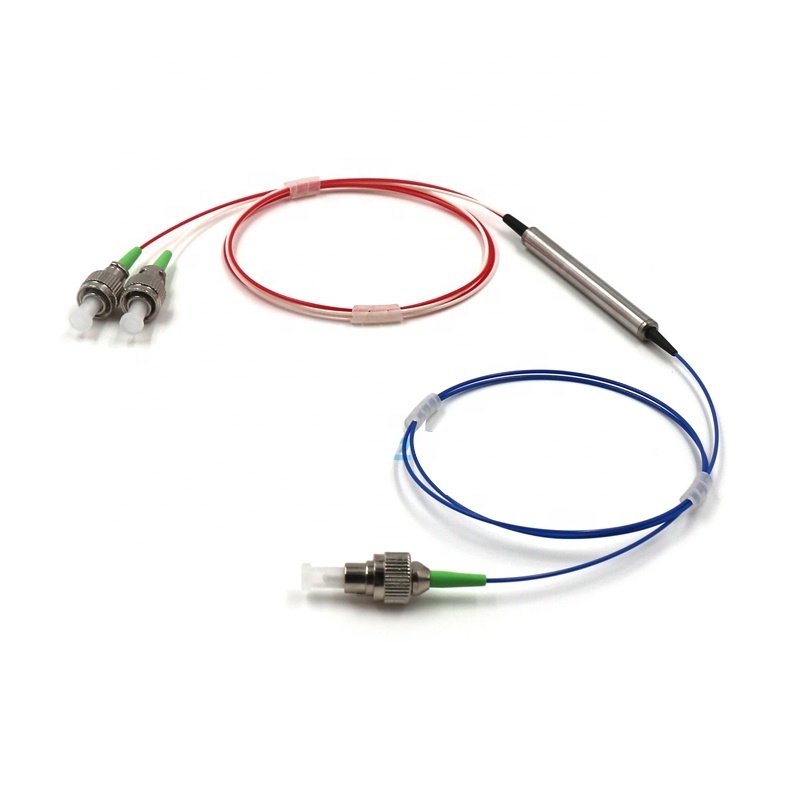

3 Port 0.9mm SM 1310 1550nm Fiber Polarization Independent Optic Circulator with 1m 1.5m Length
Features:
High isolation
Low insertion loss
High return loss
Low polarization sensitivity
Optical path epoxy free
Applications:
Fiberoptic amplifiers
CATV fiberoptic links
Fiberoptic systems testing
Fiberoptic LAN systems
Telecommunications
| Parameter | P Grade | |
| Configuration | Port 1 to 2, Port2 to 3 | |
| Operation Wavelength (nm) | 1310± 30 or 1550± 30 | |
|
lnsertion Loss (dB) |
Typical | 0.6 |
| Maximum | 0.8 | |
| Typical lsolation (dB) | ≥ 50 | |
| Minimum lsolation(dB) | ≥ 30 | |
| Cross Talk (dB) | ≥ 50 | |
| Polarization Mode Dispersion (ps) | ≤ 0.1 | |
| Return Loss (dB) | ≥ 50 | |
| Power Handling (mW) | 300 | |
| Operating Temperature (° C) | 0 ~+75 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Dimensions (mm) | Dia 5.5 x 60 | |
Ordering Information: PIOC3-A-B-C/D-E/F-G/H-I
|
A |
B |
C/D |
E/F |
G/H |
I |
|
Wave length |
Grade |
Input/Output Pigtail Type |
Input/Output Fiber Length |
Input/Output Connector |
Package Type |
|
13=1310
nm
nm
|
P=Premium
A=Grade A |
0=250um
Bare Fiber
loose tube
|
05=0.5M …… 10=1.0M ……. 15=1.5M …… |
0=None FU=FC/UPC FA=FC/APC SU=SC/UPC SA=SC/APC LU=LC/UPC LA=LC/APC ST=ST
X=Others |
T6=Φ5.5x66 mm
X=Others |
