Quick Details
-
Wheel Size(mm):
-
20
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
550x250
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Greet
-
Voltage:
-
220V/380V 50Hz
-
Dimension(L*W*H):
-
1300x1300x1800mm
-
Weight (KG):
-
950
-
Power (kW):
-
1.1
-
Name:
-
Electric grinding machine
-
Type:
-
Surface Grinding Machine
Quick Details
-
Grinding Length(mm):
-
500
-
Table Travel (X) (mm):
-
550
-
Table Travel (Y) (mm):
-
260
-
Wheel Size(mm):
-
20
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
550x250
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Greet
-
Voltage:
-
220V/380V 50Hz
-
Dimension(L*W*H):
-
1300x1300x1800mm
-
Weight (KG):
-
950
-
Power (kW):
-
1.1
-
Name:
-
Electric grinding machine
-
Type:
-
Surface Grinding Machine

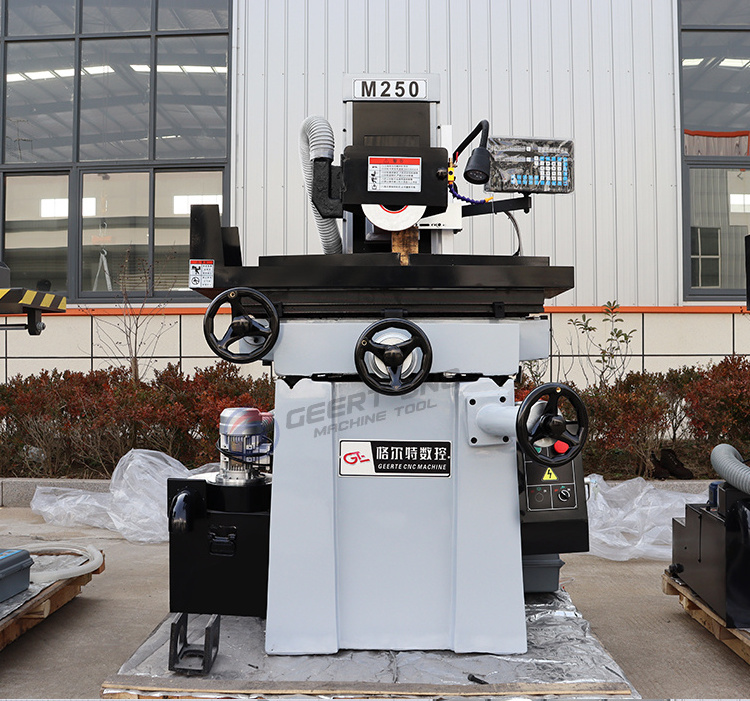

Products Description
Product Paramenters
Details determine quality, what you see and what you get
1. High precision sleeve spindle, precision cone bearing, waterproof labyrinth design.
2. The front and rear guide rails of the workbench are precisely scraped, sliding smoothly and wear-resistant. The guide rails are coated with plastic, durable, with good accuracy and flexible and convenient operation.
3. The casting has a long aging time, eliminates internal stress, is not easily deformed, and ensures machining accuracy.
4.
The three axes of grinding machine are all hand-driven, which has certain requirements on operation technology.
Application：
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing
industry. The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
industry. The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
|
Specifications
|
|
|
Units
|
M250
|
||
|
workbench
|
Worktable size (L * W)
|
|
mm
|
550x250
|
||
|
|
Max. travel of table
|
|
mm
|
500x260x320
|
||
|
|
Table T slot (slot number x slot width)
|
|
mm
|
1x14
|
||
|
|
Max Table Load
|
|
kg
|
100
|
||
|
|
Table speed
|
|
m/min
|
3-20
|
||
|
Grinding head
|
The grinding wheel size (o. d * w * i. d.)
|
|
mm
|
Φ200*20*Φ31.75
|
||
|
|
Distance spindle center line to working table
|
|
mm
|
470
|
||
|
|
Grinding wheel speed
|
|
r/min
|
2850
|
||
|
The amount of feed
|
Table longitudinal (left and right) speed
|
|
m/min
|
3-20
|
||
|
|
Transverse (front and rear) feed handwheel feed
|
Handwheel per
|
mm
|
2.5
|
||
|
|
|
Handwheel per lattice
|
mm
|
0.02
|
||
|
|
The vertical (up and down) feed handwheel feed
|
Handwheel per turn
|
mm
|
1.25
|
||
|
|
|
Handwheel per lattice
|
mm
|
0.01
|
||
|
Motor power
|
Spindle motor
|
|
kw
|
1.1
|
||
|
|
Cooling motor
|
|
w
|
40
|
||
|
working accuracy
|
The process surface of the base level of the parallel degree
|
|
mm
|
300:0.005
|
||
|
|
Surface roughness
|
|
μm
|
Ra0.32
|
||
|
Machine weight
|
Net weight
|
|
kg
|
950
|
||
|
|
Gross weight
|
|
kg
|
1050
|
||
|
Overall dimensions
|
External size (L * w * h)
|
|
mm
|
1300×1300×1800
|
||
|
|
Packing size (L * w * h)
|
|
mm
|
1500×1500×1900
|
||
