Quick Details
-
Product name:
-

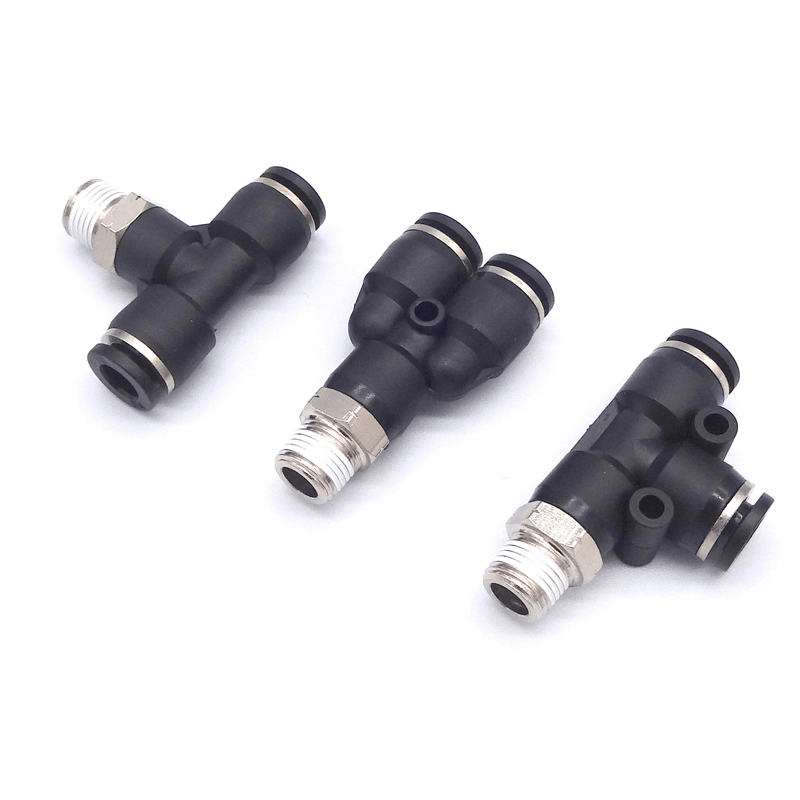

PB PD PX Pneumatic Connector
-
Material:
-
Plastic, Nickel plated brass
-
Normal service pressure:
-
0~0.9Mpa
-
Maximum service pressure:
-
1.32Mpa
-
Application hose:
-
PU / Nylon hose
-
Ambient and fluid temperature:
-
0 - 60 °C
-
Types of:
-
coupling fitting
-
The screw thread interface:
-
NPT
Quick Details
-
Weight (KG):
-
0.1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIIDNN
-
Product name:
-
PB PD PX Pneumatic Connector
-
Material:
-
Plastic, Nickel plated brass
-
Normal service pressure:
-
0~0.9Mpa
-
Maximum service pressure:
-
1.32Mpa
-
Application hose:
-
PU / Nylon hose
-
Ambient and fluid temperature:
-
0 - 60 °C
-
Types of:
-
coupling fitting
-
The screw thread interface:
-
NPT
Products Description
Product Feature
1.High Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.
2.The Product is Sturdy and Durable and Has a Long Service Life.
3.Easy Installation and Disassembly, Good Sealing Performance.
4.It Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
5.You Can Easily Insert or Pull out the Trachea Without Any Tools
6.The Clip of Connecting Air Pipe is Made of Strong Plastic Material, Which is Not Easy to Fall off After Connection Adopt Sealing Component, Keep Good Sealing, Not Easy to Leak.
7.Freely Change Pipeline Direction After Installation,Easy to Insert or Pull Trachea Manually Without Tools.
8.4 Types of Pipe Fittings of Different Styles, Including Tee, Elbow,y Branch, Straight. Different Styles Can Meet Different Needs.
|
Takeover diameter（A）
|
|
Thread size（B）
|
|
||
|
4
|
OD.4mm hose
|
M5
|
M5
|
||
|
6
|
OD.6mm hose
|
01
|
R1/8
|
||
|
8
|
OD.8mm hose
|
02
|
R1/4
|
||
|
10
|
OD.10mm hose
|
03
|
R3/8
|
||
|
12
|
OD.10mm hose
|
04
|
R1/2
|
||
|
British cannula(inch)
|
|
American thread(NPT)
|
|
||
|
5/32
|
OD.5/32=3.97mm hose
|
U
|
UNF10-32
|
||
|
1/4
|
OD.1/4=6.35mm hose
|
N01
|
NPT1/8
|
||
|
5/16
|
OD.5/16=7.94mm hose
|
N02
|
NPT1/4
|
||
|
3/8
|
OD.3/8=9.53mm hose
|
N03
|
NPT3/8
|
||
|
1/2
|
OD.1/2=12.7mm hose
|
N04
|
NPT1/2
|
||
|
About Color Difference: We All Items Are for Real Shooting; for Technology, Display, Light, Environmental Reasons May Be a Slight Deviation Phenomenon, Please in Kind Prevail. We Provide Different Pneumatic Fittings to Meet Your Different Needs
|
