Quick Details
-
Model Number:
-
JQX-62F 2Z 120A
-
Product name:
-
QIANJI JQX-62F 2C 120vac power relay
-
Contact Ratings:
-
2Z,2H,2D
-
Contact Resistance:
-
100mΩ(1A 6VDC)
-
Contact Material:
-
AgCdO
-
Contact Capacity:
-
80A 120A 250VAC
-
Insulation Resistance:
-
1000MΩ,500VDC
-
Operate Time:
-
25ms/25ms
-
Terminal Type:
-
Terminal Mounting
-
Nominal Coil Power:
-
DC:2.0W AC:2.5VA
-
Product Certifications:
-
CE
Quick Details
-
Contact Load:
-
High Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QIANJI
-
Model Number:
-
JQX-62F 2Z 120A
-
Product name:
-
QIANJI JQX-62F 2C 120vac power relay
-
Contact Ratings:
-
2Z,2H,2D
-
Contact Resistance:
-
100mΩ(1A 6VDC)
-
Contact Material:
-
AgCdO
-
Contact Capacity:
-
80A 120A 250VAC
-
Insulation Resistance:
-
1000MΩ,500VDC
-
Operate Time:
-
25ms/25ms
-
Terminal Type:
-
Terminal Mounting
-
Nominal Coil Power:
-
DC:2.0W AC:2.5VA
-
Product Certifications:
-
CE
You are here: Home >> Relay >> Power Relay

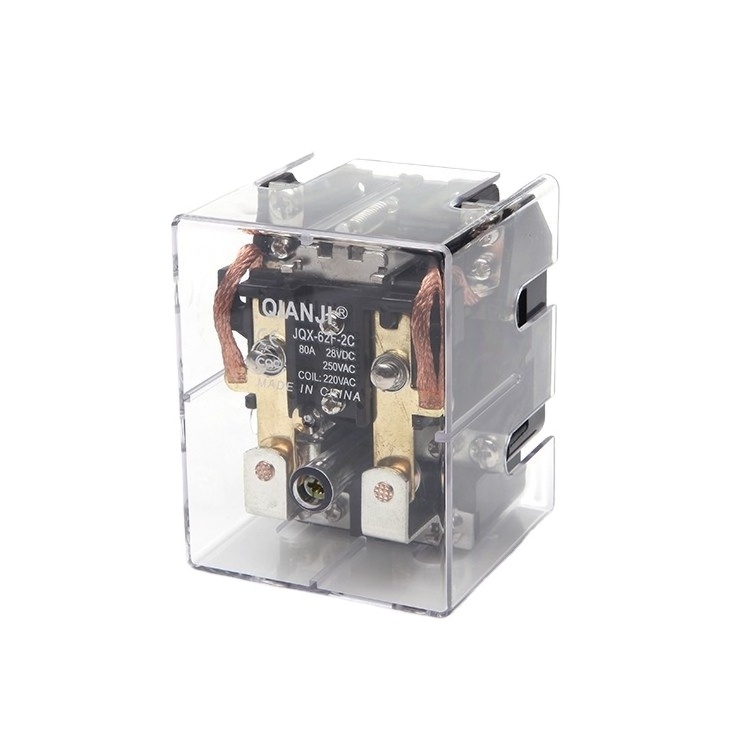

QIANJI JQX-62F 2C 120vac power relay
| Contact Ratings | ||
| Contact Ratings |
2Z,2H,2D |
|
| Contact Resistance | 100MΩ(1A 6VDC) | |
| Contact Material | AgCdO | |
| Contact Capacity | 80A 120A 250VAC | |
| Specification | ||
| Insulation Resistance | 1000MΩ,500VDC | |
| Dieletric Strength | BCC 2500V 1 min | |
| BOC 1200V 1 min | ||
| Operate Time | 25ms/25ms | |
| Terminal Type | Terminal Mounting | |
| Coil Ratings | ||
| Norminal Coil Power | DC:2.0W AC:2.5VA | |
| Coil Versions | |||||||
|
Nominal Voltage VDC |
Pull-in Voltage VDC |
Release Voltage VDC |
Coil Resistance
Ω:±10%
|
Nominal Voltage VAC |
Pull-in Voltage VAC |
Release Voltage VAC |
Coil Resistance Ω:±10% |
| 6 | 4.80 | 0.60 | 18 | 6 | 4.80 | 1.80 | 9 |
| 12 | 9.60 | 1.20 | 70 | 12 | 9.60 | 3.60 | 36 |
| 24 | 19.2 | 2.40 | 290 | 24 | 19.20 | 7.20 | 144 |
| 48 | 38.4 | 4.80 | 1152 | 48 | 38.40 | 14.4 | 576 |
| 60 | 48.0 | 6.00 | 2800 | 110 | 88.00 | 36.0 | 3500 |
| 110 | 88.0 | 11.0 | 9650 | 220/240 | 176.0 | 72.0 | 12000/14400 |
Dimension.Bottom View
Reference Data
♦ We have 20 years of production experience, the best quality and the price can be assured, pls contact us freely,we will reply to you immediately
Packaging Details:Standard export packing
Delivery Detail:15-25 days
