Quick Details
-
Weight:
-
100g
-
Size:
-
1/4'' - 4''
-
Weight (KG):
-
0.1 kg
-

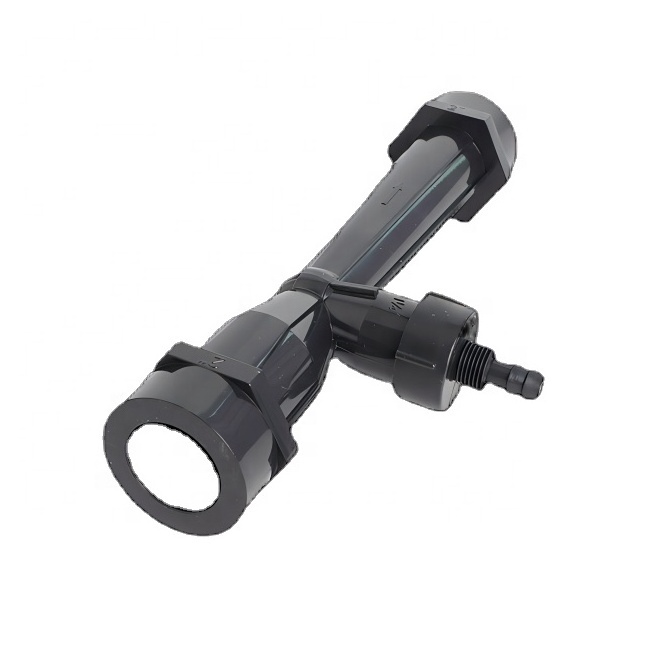

Product name:
-
Venturi Injector
-
Keywords:
-
Venturi to mix ozone into water
-
Usage:
-
mixing ozone into water
-
Water flow:
-
0.1m3/ht~50m3/hr
-
principle:
-
venturi
-
Gas liquid mixing pressure:
-
0.1-0.3Mpa
-
Liquid liquid mixing pressure:
-
0.3-0.5MP
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BSOG
-
Material:
-
CARTON, PVDF
-
Weight:
-
100g
-
Size:
-
1/4'' - 4''
-
Weight (KG):
-
0.1 kg
-
Product name:
-
Venturi Injector
-
Keywords:
-
Venturi to mix ozone into water
-
Usage:
-
mixing ozone into water
-
Water flow:
-
0.1m3/ht~50m3/hr
-
principle:
-
venturi
-
Gas liquid mixing pressure:
-
0.1-0.3Mpa
-
Liquid liquid mixing pressure:
-
0.3-0.5MP
Function:
Gas liquid mixing enables more thorough mixing of water and gas, improving production efficiency.
Application scope:
Widely used in industries such as water treatment, ozone generators, chlorine dioxide generators, chemicals, aquaculture, and direct drinking machines.
Materials and characteristics:
1. PVDF material. Polyvinylidene fluoride (PVDF) is a natural, pigment free, high-purity material;
2.PVDF materials have excellent chemical corrosion resistance and solvent resistance properties:
3.As a fluoroplastic, PVDF has higher heat resistance than all other plastics, with a heat resistance of up to 148 ℃:
4. PVDF is a highly crystalline hard material with excellent wear resistance, high mechanical strength, impact resistance, and long service life
5. The product structure is compact, and installation is fast and convenient:
6. High efficiency can reach over 25%, low energy consumption, and low noise.
parameter:
|
Product Parameter |
4 port PVC material |
6 port PVC material |
1-inch port PVC material |
The 1.5-inch port PVC material |
2-inch port PVC material |
The 4-inch PVC material is available |
|
overall length |
90MM |
142MM |
200MM |
280MM |
320MM |
600MM |
|
hydraulic discharge |
0.1-0.3T/h |
0.5-1.2T/h |
1.5-5T/h |
4-10T/h |
10-20T/h |
20-50T/h |
|
inspiratory capacity |
4-7m3/h |
8-10m3/h |
10-15m3/h |
8-12m3/h |
20-40m3/h |
40-100m3/h |
|
Wash the amount of liquid |
50.5-120.6/h |
75-180L/h |
235-540L/h |
320-680L/h |
1820-4750L/h |
6200-9200L/h |
|
imports and exports |
Outer filament 1 / 2, (DN15), 20MM |
Outer filament 3 / 4, (DN20), 25MM |
Outer filament 1, (DN25), 32MM |
Outer wire 1 + 1 / 2 (DN40) |
Outer filament 2, (DN50), 63MM |
4 inch or flange (DN100) |
|
suction inlet |
8MM pagoda head, 1 / 4 outer wire interface |
8MM pagoda head, 1 / 4 outer wire interface |
8MM pagoda joint, 1 / 2 outer wire interface |
12MM pagoda head, 1 / 2 outer wire interface |
12MM pagoda head, 1 / 2 outer wire interface |
Double suction mouth 2 inch outer wire or DN50 flange |
|
Solution mixing and output pressure |
0.2-0.4MPA |
0.2-0.5MPA |
0.2-0.6MPA |
0.3-0.8MPA |
0.3-1MPA |
0.6-1.2MPA |
|
Gas-liquid mixing output pressure |
0.1-0.3MPA |
0.2-0.4MPA |
0.3-0.5MPA |
0.3-0.6MPA |
0.4-0.8MPA |
0.1-1MPA |
