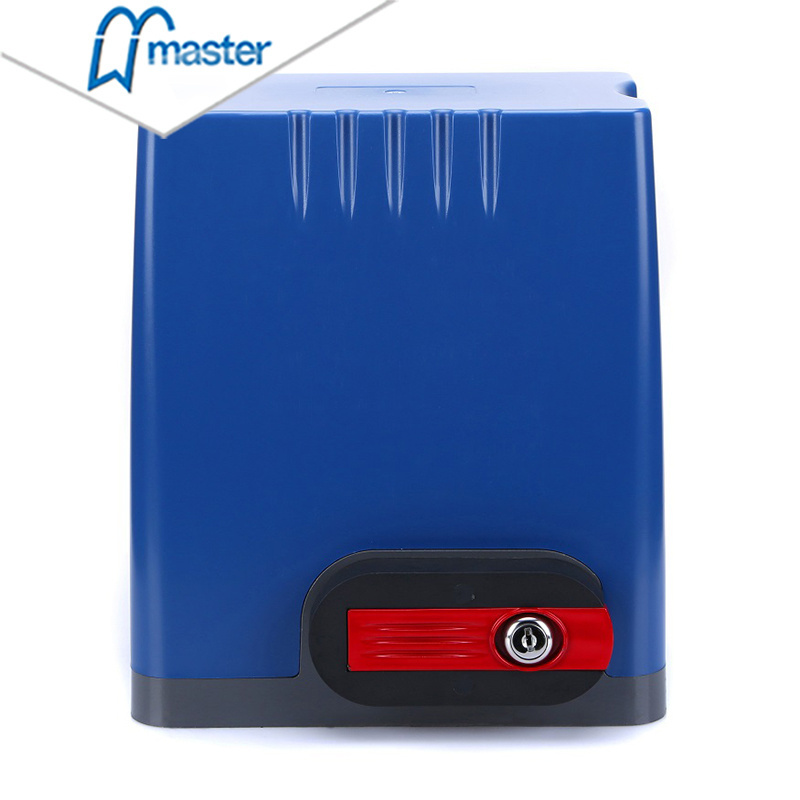

Electric swing and sliding gate opener

sliding gate opener

A. Model Item: MO.SLS400D

1. Magnetic limit switch
2. Supply voltage: DC24V 50HZ
3. Motor power: 60W
4. Motor rotational speed: 2200 r/min
5. Available for solar charge
6. Max lifting weight: 400KG

B.Model Item: MO.SLS500D

1. Magnetic limit switch
2. Supply voltage: DC24V 50HZ
3. Motor power: 60W
4. Motor rotational speed: 2200 r/min

5. Aliuminum gear box

6. Max lifting weight: 500KG

C. Model Item: MO.SLH0370

1. Magnetic or machnical limit switch
2. Supply voltage: AC220V 50Hz
3. Motor power: 370W
4. Motor rotational speed: 1380 r/min
5.Max lifting weight: 800KG

D. Model Item: MO.SLH1370

1. Magnetic or machnical limit switch
2. Supply voltage: AC220V 50Hz
3. Motor power: 370W
4. Motor rotational speed: 1380 r/min
5.Max lifting weight: 800KG

E. Model Item: MO.SL2250

1. Mechanical limit switcH

2. Supply voltage: 220v AC 50Hz/110v AC 60Hz

3. Motor power: 250W

4. Motor rotational speed: 1400r/min

5. Aluminum gear box

6. Max lifting weight: 800KG

7. Environment temperature: -20°C --50°

8. Protection class: IP44 for motor; IP55 for controller

9. Built-out Control box

10. Auto-closing is viable

11. Rebound is viable

12. Include 2 transmitters matching with the motor

F. Model Item: MO.SL9370

1. Mechanical limit switch
2. Supply voltage: AC 220v 50Hz/60HZ
3. Motor power: 370W
4. Motor rotational speed: 1400r/min
5. Aluminum gear box
6. Max lifting weight: 1000KG
7. Environment temperature: -20°C --50°
8. Protection class: IP44 for motor; IP55 for controller
9. Built-out Control box
10. Auto-closing is viable
11. Rebound is viable
12. Include 2 transmitters matching with the motor

G. MO.SLS4370 Sliding gate opener

1. Magnetic limit switch
2. Supply voltage: AC220V 50HZ /60HZ
3. Motor power: 370W
4. Motor rotational speed: 1400 r/min
5. Aluminum gear box
6. Max lifting weight: 1000KG

Model: MO.SLH1550

1.Max door weight: 1500KG

2.Supply voltage: DC24V 50Hz

3.Motor power: 550W

4.Motor rotational speed: 1400r/min

5.Aluminum gear box

6.Magnetic or mechnical limit switch

7.Accessories: the motor with 2 transmitters, the installing base plate,the limit stopper, some installing screws and accessories.

MO.SLS9450 Sliding gate opener
1. Magnetic or Mechnical limit switch
2. Supply voltage: AC220V 50HZ /60HZ
3. Motor power: 450W
4. Motor rotational speed: 1400 r/min
5. Aluminum gear box
6. Max lifting weight: 1500KG

Remote control sliding gate motor quick detail:

a. Type:Automatic Door opener
b. From Master Well company in Wuxi, Jiangsu
c. With various models and favored designs
d. Brand: Master
e. Voltage: 220VAC 50Hz/ 110VAC 60Hz
f. Built-in control board.
g. Smooth start-up
h. accurate limit

1.  Low MOQ: One set is available for checking our quality first conveniently.

2.  Good Quality: Your client satisfied on our quality. You can get good reputation from your market and obtain more orders.

3.  Good Service: Our professional service before and after sale.
4.  The reasonable price
5.  Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
6.  OEM is welcome.

• Relying on excellent business performance and R&D, we have enjoyed a globally recognized reputation in successfully providing quality products at competitive prices and professional technical services to a wide range of clients worldwide.
• Master insists on the principle of sincerity and aims at "prestige first, cooperate sincerely and develop commonly".
• MASTER will continue to offer consistent Good-quality products at the best prices with excellent service.
• We are developing the greatest ability to combine the products for various Logistical advantage, blending, packaging, warehousing and shipping in one facility.
• All in all,we'll make every effort to become your most reliable partner.

• Standard package for panel is carton box with film
• If less than one container, wooden box is needed, for safety during whole transportation
• if by one 20ft container, the loading quantity for panel only is less than 600 square meters.

Q1: What is your MOQ?

A:  Our min order is one 20ft fll container. Sample order is available but we there will be sample charge. We also suggest wooden cases package for protection during shipment.

Q2: What is the Max available size of the panels?

A: The max length of panels can be 11.9M to suit the 40ft container. The max width of panels is 550mm.

Q3: Do you have CE certification?

A: Yes, we do have CE certification. We have CE for our complete automatic garage doors.

Q4:  Can I get a sample of garage door for quality check?

A: Sample is available.

Q5:  How can I get a price of needed garage door?

A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

Q6:  What kinds of payment you accept?

A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q7:  We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q8: I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler, we would like to grow up with you together.

BY ANY INTEREST IN OUR PRODUCTS, PLEASE FEEL FREE TO CONTACT US!
