Quick Details
-
Product Name:
-

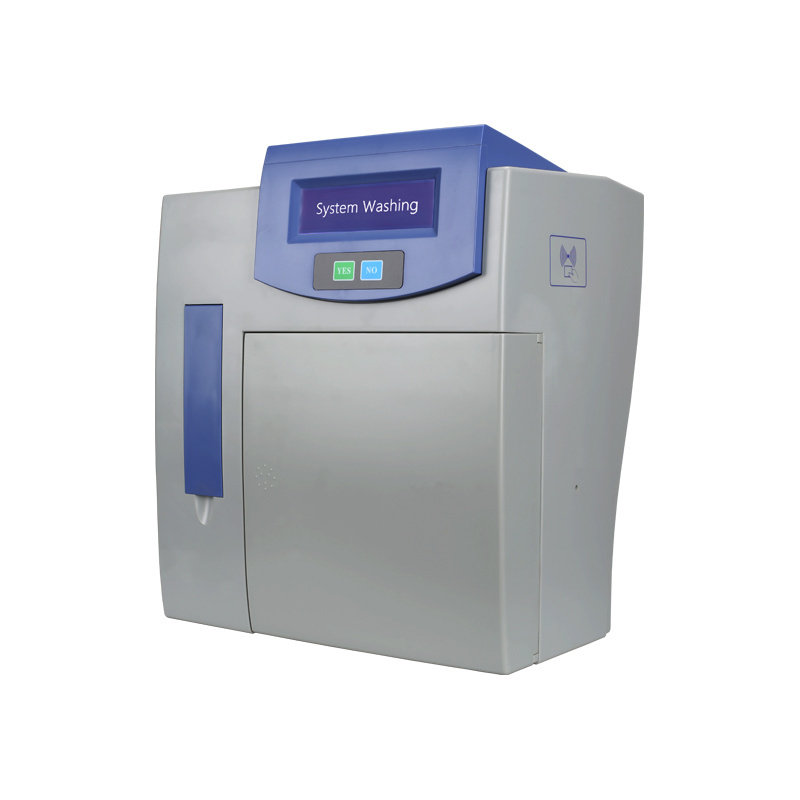

Electrolyte Analyzer
-
Sample:
-
serum, plasma, whole blood, cerebrospinal fluid and dilute urine
-
Measuring speed:
-
≤25s
-
Analysis Method:
-
ion selective electrode (ISE)
-
Sample volume:
-
60-300ul (3 parameters to 11 parameters)
-
Sample position:
-
35 positions (including 1 QC)
-
Storage:
-
up to 10,000 test results
-
Printer:
-
Internal thermal printer
-
Interface:
-
RS232 port
-
Dimension:
-
380mm*270mm*400mm
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WANT
-
Product Name:
-
Electrolyte Analyzer
-
Sample:
-
serum, plasma, whole blood, cerebrospinal fluid and dilute urine
-
Measuring speed:
-
≤25s
-
Analysis Method:
-
ion selective electrode (ISE)
-
Sample volume:
-
60-300ul (3 parameters to 11 parameters)
-
Sample position:
-
35 positions (including 1 QC)
-
Storage:
-
up to 10,000 test results
-
Printer:
-
Internal thermal printer
-
Interface:
-
RS232 port
-
Dimension:
-
380mm*270mm*400mm
|
Model No.
|
Test Parameters
|
Remark
|
|
IMS972 A
|
Na, K, Cl
|
Manual sampler
|
|
IMS972 B
|
Na, K, Cl, TCO2, AG
|
Manual sampler
|
|
IMS972 C
|
Na, K, Cl, Ca, pH
|
Manual sampler
|
|
IMS972 D
|
Na, K, Cl, Ca, pH, TCO2, AG
|
Manual sampler
|
|
IMS972 F
|
Na, K, Cl, Li
|
Manual sampler
|
|
IMS972 H
|
Na, K, Cl, Ca, pH, Li
|
Manual sampler
|
|
IMS972 I
|
Na, K, Cl, Ca, pH, Li, TCO2, AG
|
Manual sampler
|
|
IMS972 J
|
Na, K, Cl, Mg
|
Manual sampler
|
|
IMS972 K
|
Na, K, Cl, Ca, pH, Mg
|
Manual sampler
|
|
IMS972 L
|
Na, K, Cl, Ca, pH, Mg, TCO2, AG
|
Manual sampler
|
|
IMS972 M
|
Na, K, Cl, Ca, pH, Li, Mg, TCO2, AG
|
Manual sampler
|
|
Auto Loader
|
T&K cup
|
Optional
|
High accurate and long life electrode and TCO2 sensor
Sleep mode to reduce reagent consumption
Rapid test speed of 80 tests per hour
Minimum sample volume is 60ul
Individual reagent to avoid waste
Option: Sample tray
1. K, Na, Cl
2. K, Na, Cl, TCO2
3. K, Na, Cl, iCa, nCa, TCa, pH
4. K, Na, Cl,iCa, nCa, TCa, pH, TCO2, AG
5. K, Na, Cl, Li
6. K, Na, Cl, iCa, nCa, TCa, pH, Li
7. K, Na, Cl,iCa, nCa, TCa, pH, Li, TCO2, AG
8. K, Na, Cl,iCa, nCa, TCa, pH,Mg, TCO2, AG
9. K, Na, Cl,iCa, nCa, TCa, pH, Li, Mg, TCO2, AG
|
Sample
|
serum, plasma, whole blood, cerebrospinal fluid and dilute urine
|
|
Measuring speed
|
≤25s
|
|
Analysis Method
|
ion selective electrode (ISE)
|
|
Sample volume
|
60-300ul (3 parameters to 11 parameters)
|
|
Sample position
|
35 positions (including 1 QC)
|
|
Storage
|
up to 10,000 test results
|
|
Printer
|
Internal thermal printer
|
|
Interface
|
RS232 port
|
|
Working environment
|
Temperature: 5-40℃Relative Humidity: ≤ 80 %
Atmospheric pressure: (86~106) kPa |
|
Power supply
|
220V±20V, 50-60Hz
|
|
Power
|
≤120W
|
|
Dimension
|
380mm*270mm*400mm
|
|
Net weight
|
8Kg
|
SIMPLE OEM:
MOQ 10pcs,print your company name on the label and instructions.
OEM:
MOQ 200pcs, also need pay USD100, after order quantity is over 200pcs,
will refund the costs USD100.
ODM:
MOQ 1000pcs.
Q1: Are you a factory or trading company?
A: We are a factory.
Q2: MOQ?
A: We don't have MOQ limit, you can order any quantity you want.
If you need scales with your specification, logo, packing, etc, please negotiate with us.
Q3:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think our cargos will better then any others.
Samples will be 10%-20% higher than the cargo.
Q4:Can I add my logo on the machine?
A:Yes,OEM is available for us.
But you should send us the Trademark authorization letter.
Q5:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q6:Do you have inspection procedures for these machine?
A:100% self-inspection before packing
Q7: Delivery date?
A: 1-3 days for sample, 15-20 days for 1000pcs, 30-35days for 40HQ.
Q8: Payment Method?
A: L/C at sight, T/T, Western Union and Paypal are all available.
30% deposit T/T in advance, rest against the Shipping Doc.
100% T/T in advance for sample order.
Q9: Shipping?
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days), port of loading: Shanghai
d. By domestic logistics to your forwarder. (2-3days)
Q10:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
We can pick you up in the airport or train station. Hotel booking service is available
SERVICE
1. Your inquiry and e-mail will be replied within 12 hours.
2. If you need to develop product with your own specification, we have professional engineers to work it out.
3. Never leave customer alone, solve problems with customer together.
4. Customer first, quality first, service first!
