Quick Details
-
Model Number:
-
L212M
-
Dimension:
-
389*1160*630mm
-
Output Power:
-
HF 200W/MF 320W/LF 800W
-
Product Name:
-
Double 12 inch Line Array Speaker
-
Application:
-
Outdoor Activities/touring performance
-
Function:
-
Main sound reinforcement speaker
-
Components:
-
LF: 2x12"/HF: 2x3"/MF: 4x5.5"
-
Frequency response:
-
42Hz-18KHz
-
Sensitivity(1w/1m):
-
108dB
-
Maximum Power:
-
HF 400W/MF 640W/LF 1600W
-
Nominal Impedance:
-
4Ω
-
Magnet material:
-
Neodymium Speaker
-
MOQ:
-
4PCS
Quick Details
-
Warranty:
-
2 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Egle
-
Model Number:
-
L212M
-
Dimension:
-
389*1160*630mm
-
Output Power:
-
HF 200W/MF 320W/LF 800W
-
Product Name:
-
Double 12 inch Line Array Speaker
-
Application:
-
Outdoor Activities/touring performance
-
Function:
-
Main sound reinforcement speaker
-
Components:
-
LF: 2x12"/HF: 2x3"/MF: 4x5.5"
-
Frequency response:
-
42Hz-18KHz
-
Sensitivity(1w/1m):
-
108dB
-
Maximum Power:
-
HF 400W/MF 640W/LF 1600W
-
Nominal Impedance:
-
4Ω
-
Magnet material:
-
Neodymium Speaker
-
MOQ:
-
4PCS

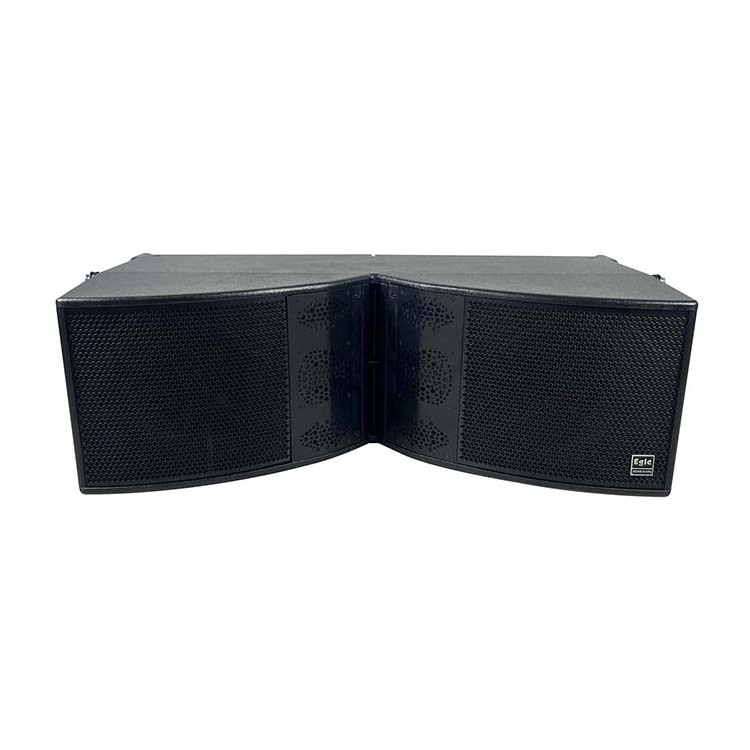

Products Description
|
Item Name:
|
Professional Three Way 12 Inch Line Array Speaker
|
|
Model：
|
L212M
|
|
Application:
|
Outdoor Stage/ Mobile Truck Performance/ Event
Bar/Church/Concert/Touring Performance/Club
|
|
Material:
|
Multi-layer Birch Plywood Cabinet + Neodymium Loudspeaker
|
|
Components：
|
LF: 2x12" woofer MF: 4x5.5" woofer
HF: 2x3" tweeter
|
|
Frequency response：
|
42Hz-18KHz
|
|
Sensitivity(1w/1m)：
|
108dB
|
|
Maximum Sound Pressure：
|
139dB
|
|
Maximum/Peak Power：
|
HF 400W/MF 640W/LF 1600W
|
|
Nominal Impedance：
|
4Ω
|
|
Height x Wight x Depth:
|
389×1160×630mm(HxWxD)
|
|
Weight：
|
55kg
|
|
Box appearance:
|
Black Polyester Paint
|
Details Images
Exclusive Appearance Design
To achieve the largest and most Dispersion angle,
Combination an elegant and compact appearance
We were inspired by the acoustic design from the shape of the butterfly
Durability And Protection
Large 3-ChannelThree-frequency Division
Double 12 Inch Line Array Speaker
Architectural and engineering specifications
The speaker consist of a 3-way full range passive enclosure. The low frequency transducers feature two 3-inch voice
coil, 12-inch Ferrite magnet loudspeakers, the mid frequency transducers feature four 1.5-inch voice coil, 5.5-inch
neodymium magnet loudspeakers loaded to two mid phase plugs and the high frequency transducers l feature two 3-inch titanium diaphragm neodymium magnet drivers loaded to a 100º x 8º waveguide. Low frequency/ Mid frequency / Mid frequency transducers is rated at a nominal impedance of 4 ohms each one.
coil, 12-inch Ferrite magnet loudspeakers, the mid frequency transducers feature four 1.5-inch voice coil, 5.5-inch
neodymium magnet loudspeakers loaded to two mid phase plugs and the high frequency transducers l feature two 3-inch titanium diaphragm neodymium magnet drivers loaded to a 100º x 8º waveguide. Low frequency/ Mid frequency / Mid frequency transducers is rated at a nominal impedance of 4 ohms each one.
Design In Every Detail
we have invested in,and applied ,the best acoustic knowledge,materials ,and technology to deliver the ultimate product.
Features such as
,
the precision-made ergonomic handles and metallic finish grilles ，
speaker for themselves.
