Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JAE WOO
-
Model Number:
-
DD-20-75
-
Product name:
-
heat resistant cabl
-
Usage:
-
House Home Floor Underfloor Heating
-
Function:
-
Floor Heating Systerm
-
Size:
-
12.5/25/50/75/100/1500meters
-
Power Supply:
-
20W/mjeters
-
Voltage:
-
220V 50Hz
-
Color:
-
Orange
-
Certifications:
-
CE ISO RoHS
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JAE WOO
-
Model Number:
-
DD-20-75
-
Product name:
-
heat resistant cabl
-
Usage:
-
House Home Floor Underfloor Heating
-
Function:
-
Floor Heating Systerm
-
Size:
-
12.5/25/50/75/100/1500meters
-
Power Supply:
-
20W/mjeters
-
Voltage:
-
220V 50Hz
-
Color:
-
Orange
-
Certifications:
-
CE ISO RoHS
Products Description
Introduction

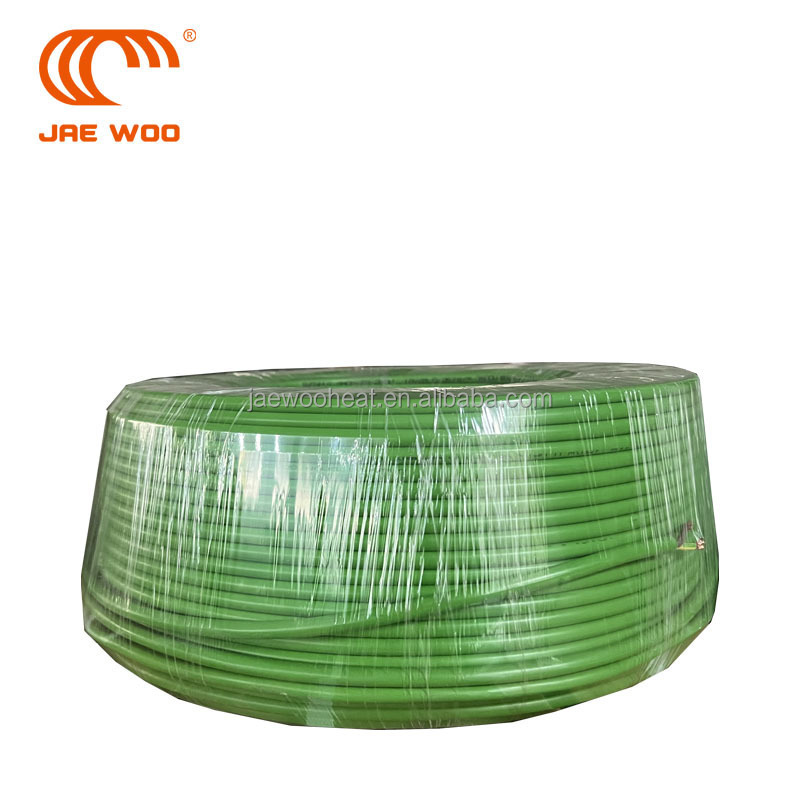

Heating cable is a twin conductor floor heating cable with earth screen. It is used for indoor under floor
heating,the subfloor can be concrete,wooden with or without thermal insulation,the floor can be
any type tile,stone,wood are all fine. The heating cable just have one connection point,it is easy for installation.
Product Paramenters
Name
|
Double lead heating cable
|
Length
|
12.5/25/50/75/100/150 meters
|
Voltage
|
220V 50Hz
|
Power
|
20 W/meters
|
Material
|
flame retardant PVC
|
Control method
|
With a thermostat
|
Connector
|
out splice
|
cable diameter
|
6.8MM+_0.2MM
|
Earth Type
|
100% Coverage Earth Shield
|
Advantage:
Create heat tracing environment for the industrial process;
Prevent civil facilities and equipment from freezing;
Can provide precise temperature control with thermostat;
Flexible to install with a lower cost;
It is available to custom the cable based on a specific request;
Item
|
Length(meters)
|
Power(W)
|
Voltage(V)
|
Resistance(Ω)
|
JW-DD-20
|
12.5
|
250
|
220
|
193.6
|
JW-DD-25
|
25
|
500
|
220
|
96.8
|
JW-DD-50
|
50
|
1000
|
220
|
48.4
|
JW-DD-75
|
75
|
1500
|
220
|
32.27
|
JW-DD-100
|
100
|
2000
|
220
|
24.2
|
JW-DD-150
|
150
|
3000
|
220
|
16.13
|
Why Choose Us
Certifications
Exhibition
FAQ
FAQ
1. Are you a manufacturer or a trading company?
We are a professional Heating Cable China manufacturer, providing professional OEM service. Welcome to visit our factory!
3. When do you deliver?
4. What are the payment terms?
5. Can you provide samples for testing before placing an order?
7. Can you do OEM and ODM for us?
8.Are your heating cables environmentally friendly?
9.Do you offer or supply room thermostats compatible with your underfloor electric heating system?
10.Which floor finishes are suitable for installing an underfloor heating system?
11. Do I need a thermostat in every room?
2. What is the minimum order quantity? There is no minimum order quantity for standard products. The minimum order quantity for customized products is 10pcs.
3. When do you deliver?
Usually within 7~15 days, the exact delivery time depends on the model and quantity of the products you
order.
order.
4. What are the payment terms?
T/T, L/C, Western Union, Alibaba Secure Payment.
5. Can you provide samples for testing before placing an order?
Yes, we can provide samples to check the quality and test the
performance. We are not responsible for the shipping cost of the samples.
6. What is the warranty period of your products?
Underfloor heating cable and underfloor heating mats have 5 years free warranty.
7. Can you do OEM and ODM for us?
Y
es, we provide professional OEM and ODM service. We have experienced R&D technical team, we
can provide you with standard and customized products, and we can also print your logo on the heating mats.
8.Are your heating cables environmentally friendly?
All of our heating mats comply with ROHS, CE, ISO standards, you can buy and use them freely.
9.Do you offer or supply room thermostats compatible with your underfloor electric heating system?
Yes, we have mechanical, LCD digital display, WIFI and other types of thermostats for you to choose from.
10.Which floor finishes are suitable for installing an underfloor heating system?
Tile, marble, wood flooring, laminate, vinyl, concrete and other floor coverings.
11. Do I need a thermostat in every room?
We recommend that each room be equipped with a thermostat to control the temperature independently. This will save energy and make temperature control easier and more accurate.
