Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BMS
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
10000*1200*1500mm
-
Weight:
-
10000 kg
-
Feeding width:
-
Provided
-
Marketing Type:
-
New Product 2022
-
Product Name:
-
Gutter Roll Forming Machine
-
Base Frame:
-
H350 H400 H450 type steel
-
Roller Material:
-
bearing steel GCr15 with hard chrome coating or mold steel Cr12
-
Hardness:
-
Heat treatment to HRC52-58 degree
-
Roller station:
-
16 or18 to form
Quick Details
-
Type:
-
Gutter Roll Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
15m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BMS
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
10000*1200*1500mm
-
Weight:
-
10000 kg
-
Feeding width:
-
Provided
-
Marketing Type:
-
New Product 2022
-
Product Name:
-
Gutter Roll Forming Machine
-
Base Frame:
-
H350 H400 H450 type steel
-
Roller Material:
-
bearing steel GCr15 with hard chrome coating or mold steel Cr12
-
Hardness:
-
Heat treatment to HRC52-58 degree
-
Roller station:
-
16 or18 to form
Product Description
| Product Name | Gutter Roll Forming Machine | |
| Material | Applicable material | GI(Galvanized Steel Sheet)/HR/PPGL |
| Material thickness | 0.3-0.8mm | |
| With yield strength | 235-345-550Mpa Yield Strength | |
| Machine | Base frame | H350 H400 H450 type steel |
| Roller material | bearing steel GCr15 with hard chrome coating or mold steel Cr12 | |
| Hardness | Heat treatment to HRC52-58 degree | |
| Roller station | 16 or18 to form | |
| Shaft diameter | 70mm/ 75mm | |
| Machine size | 10000*1200*1500mm | |
| Machine weight | 5-10tons | |
| Machine color | 2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard | |
| Working speed | 15m/min | |
| Cutter | Hardness | Heat treatment to HRC58-62 degree |
| Cutting tolerance | ≤±1mm | |
| Material | Cr12MoV(= Z200C12 with at least one million times of cutting life) | |
| Operate | By PLC | |
| Power | Driving way | Gear/Sprocket transmission, |
| Main motor | 5.5 or 7.5 KW | |
| Pump motor for cutter | 2.2 or 3.0kw | |
| Voltage | 220/380/415/480V- 60/50Hz/3Ph --should be confirmed | |
| PLC Control System | Inverter | Schneider Electric/Siemens/DELTA (Taiwan brand) |
| Touch screen | Schneider Electric/Siemens/WEINVIEW(Taiwan brand) | |
| Encoder | OMRON (Japan brand) or KOYO (Japan brand) | |
| Cut-to-length tolerance | ≤±1mm | |
| Control voltage | 24V | |
| Automatic Stacker and Printer | Options | |

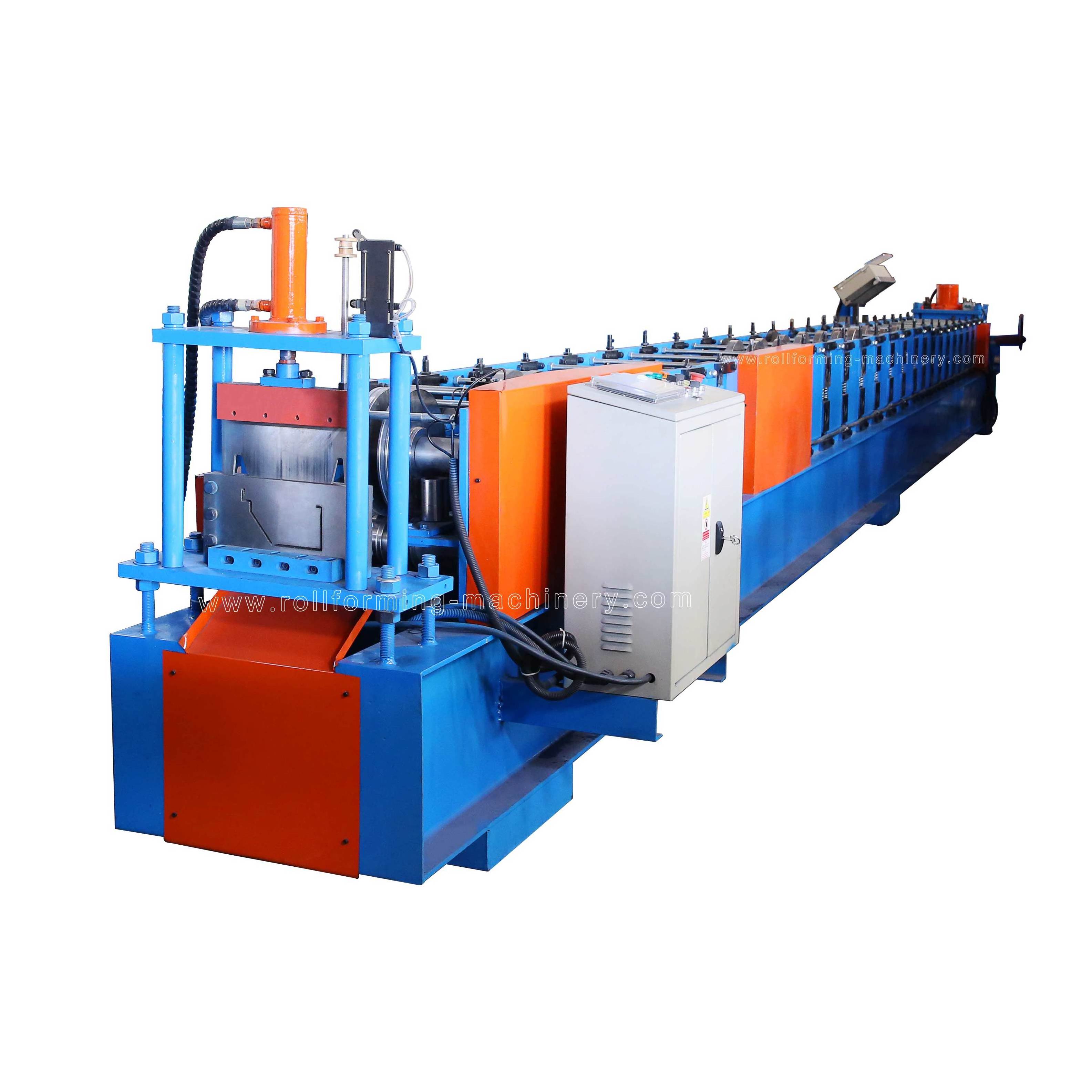

Product Show
