Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAODA
-
Year:
-
2014
-
Voltage:
-
380v,50-60HZ, 3Ph
-
Dimension(L*W*H):
-
2.3m*4.5m*2.1m
-
Weight (KG):
-
2500 KG
-
Product Type:
-
foam engraving
-
XYZ working area:
-
1500x3000x500mm
-
rotary size:
-
1000mm diameter,2500mm length
-
lathe bed structure:
-
heavy duty steel structure
-
working table:
-
aluminum T-slot
-
spindle power:
-
9kw air-cooling
-
driving system:
-
Japan YASKAWA servo motor and driver
-
control system:
-
WEIHONG
-
oil system:
-
automatically
-
option:
-
3d scanner
Quick Details
-
Max.Product Size(L)(mm):
-
3000 mm
-
Max.Product Size(W)(mm):
-
1500 mm
-
Max.Product Size(H)(mm):
-
500 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAODA
-
Year:
-
2014
-
Voltage:
-
380v,50-60HZ, 3Ph
-
Dimension(L*W*H):
-
2.3m*4.5m*2.1m
-
Weight (KG):
-
2500 KG
-
Product Type:
-
foam engraving
-
XYZ working area:
-
1500x3000x500mm
-
rotary size:
-
1000mm diameter,2500mm length
-
lathe bed structure:
-
heavy duty steel structure
-
working table:
-
aluminum T-slot
-
spindle power:
-
9kw air-cooling
-
driving system:
-
Japan YASKAWA servo motor and driver
-
control system:
-
WEIHONG
-
oil system:
-
automatically
-
option:
-
3d scanner

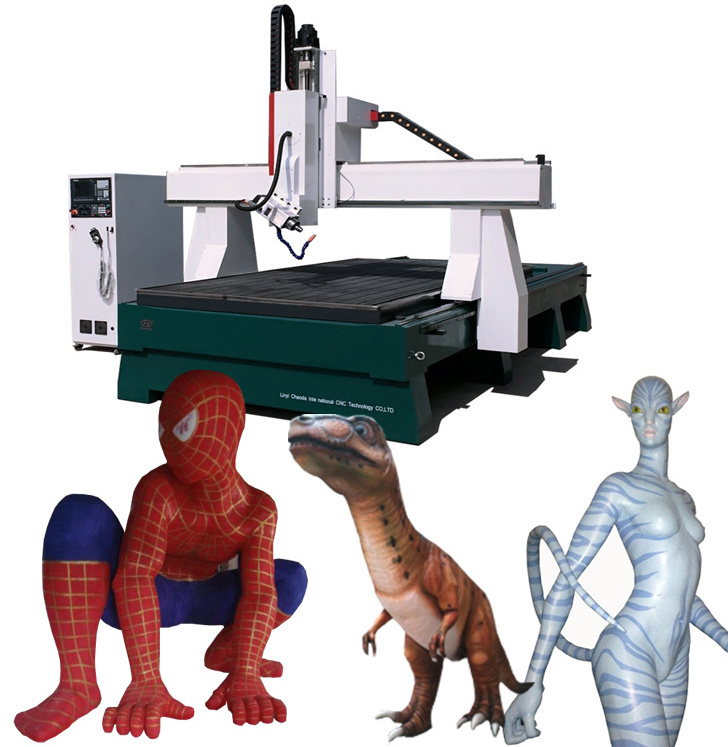

Multifunction 4 Axis foam cutting 3d cnc machines/cnc router for EPS Foam 3D mould Sculpture
our products include cnc router of 3 axis, 4 axis, 5 axis and 5+1 axis
as well as 3d scanner, hot wire foam cutter, laser machine and plasma cutting machine
we supply not only cnc machines !
but also best solution to your specific project !!
Model No. JCT1530L
Machine Features
a) All machine parts adopt high configuration and top quality from
all over the world,to make machine with high performance and durability.
b) Machine is with a big rotary device, can process different kinds
of 3d sculptures,statues,columns.
c) Machine is with a flat table, can process plane materials.
Technical Parameter
| Flat working size | 1500*3000*500mm |
| Rotary working size | 1000mm diameter, 2500mm length |
| Lathe bed structure | T-extrusion,Thick Steel frame |
| Table | Removable,T-slot with clamps |
| X structure | Rack and pinion, linear square rail |
| Y structure | Rack and pinion, linear square rail |
| Z structure | Ball screw, linear square rail |
| Reposition accuracy | ±0.05mm |
| Max. travelling rapid | 0-60000mm/min |
| Max. working speed | 0-30000mm/min |
| Spindle power | 9kw air cooling ATC spindle |
| Tool magazine | Linear type auto tool changer,8 tools ability |
| Working mode | Japan YASKAWA servo motor and driver |
| Operating system | 4 axis Ncstudio with handwheel |
| Command code | G code(*uoo,*nc,*mmg, *plt) |
| Working voltage |
3 phase AC380V 50Hz |
| Running circumustance |
Temperature: 0°C~45°C relative humidity: 30%~75% |
Product Samples
It can process many materials,like foam,woods, MDF, Composite boards, Alucobond,
PVC, Rigid plastics, Acrylic Sheets, Glass, Organic glass, Aluminum plates.,etc.
>> products made by flat table
>> products made by rotary device
