Quick Details
-
Production Speed(Cycles/min):
-
35
-
Air Pressure(MPa):
-
0.6 MPa
-
Sheet Thickness(mm):
-
0.2 - 2 mm
-
Heating Power (kW):
-
131 kW
-
Air Comsumption(L/min):
-
1.5 L/min
-
Water Comsumption(L/min):
-
2 L/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SAYEAH
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3600*1590*2500mm
-
Weight (T):
-
4.4 T
-
Power(KW):
-
131
-
Weight:
-
4.4T
-
Max. Forming Area:
-
650*320mm
-
Max. No-Load Speed:
-
35Cycles/min
-
Running Pattern:
-
Hydraulic
-
Sheet Thickness Range:
-
0.2-2mm
-
Max. Sheet Roll Dia:
-
1100mm,1T
-
Temperature Controller&Thermocouple:
-
PID K-Type
-
Electrical Consumption:
-
40KW/h
-
Air Consumption:
-
1.5-1.8m3/min, 0.6-0.8 Mpa
-
Power(W):
-
131KW
Quick Details
-
Max.Forming Height(mm):
-
170 mm
-
Forming Width (mm):
-
320 mm
-
Forming Length (mm):
-
650 mm
-
Production Speed(Cycles/min):
-
35
-
Air Pressure(MPa):
-
0.6 MPa
-
Sheet Thickness(mm):
-
0.2 - 2 mm
-
Heating Power (kW):
-
131 kW
-
Air Comsumption(L/min):
-
1.5 L/min
-
Water Comsumption(L/min):
-
2 L/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SAYEAH
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3600*1590*2500mm
-
Weight (T):
-
4.4 T
-
Power(KW):
-
131
-
Weight:
-
4.4T
-
Max. Forming Area:
-
650*320mm
-
Max. No-Load Speed:
-
35Cycles/min
-
Running Pattern:
-
Hydraulic
-
Sheet Thickness Range:
-
0.2-2mm
-
Max. Sheet Roll Dia:
-
1100mm,1T
-
Temperature Controller&Thermocouple:
-
PID K-Type
-
Electrical Consumption:
-
40KW/h
-
Air Consumption:
-
1.5-1.8m3/min, 0.6-0.8 Mpa
-
Power(W):
-
131KW
|

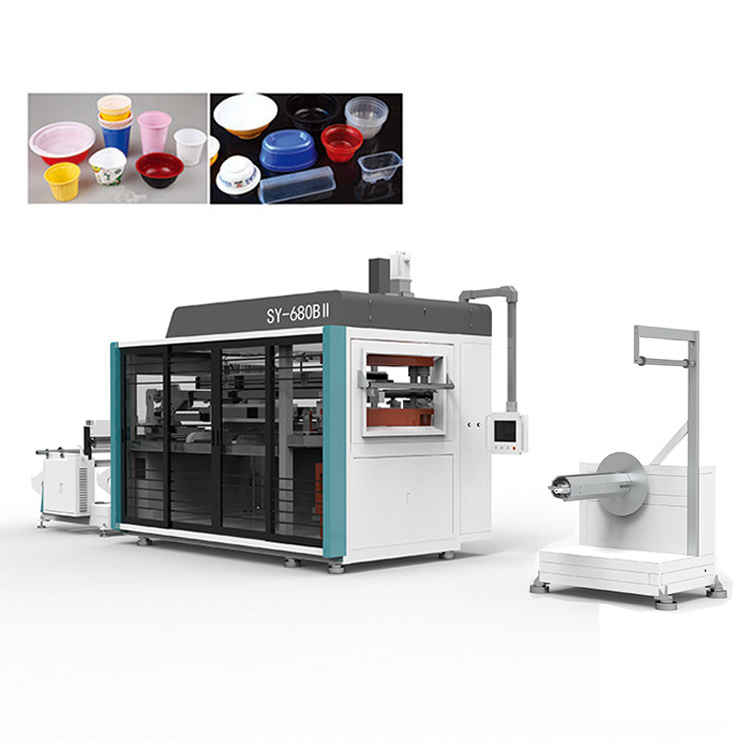

Model
|
SY-680B I
|
SY-680B II
|
SY-680B III
|
||
|
Max.Forming Area
|
650X320mm
|
|
|
||
|
Max.Dry Cycle Speed
|
35Cycles/min
|
35Cycles/min
|
40Cycles/min
|
||
|
Running Pattern
|
Hydraulic
|
Hydraulic
|
Servomotor
|
||
|
Feeding Patern
|
Motor With Encode
|
Servomotor
|
Servomotor
|
||
|
Stretching Pattern
|
Air Cylinder
|
Servomotor
|
Servomotor
|
||
|
Sheet Specification
|
THK: 0.2-2mm, W: Max.690mm
|
|
|
||
|
Max.Forming Depth, Sample Height
|
≤150mm (with robot) , ≤170mm (by blowing)
|
|
|
||
|
Max.Sheet Roll Dia.
|
1100mm,1T
|
|
|
||
|
Power Consumption
|
40Kw/h
|
45Kw/h
|
40Kw/h
|
||
|
Overall Power
|
131KW
|
137KW
|
137KW
|
||
|
Dimension(LxWxH)
|
3600x1590x2500mm
|
3600x1590x2500mm
|
3600x1590x2500mm
|
||
|
Weight
|
4.4T
|
4.5T
|
4.5T
|
||
Production Product Display
Products Description
Unwinder
The unwinder was lifted by the electricity, and the sheet roll max load weight is 1T. It can put two rolls one time for easy
replacement.
replacement.
Touch Screen
Easy to operate, all-electric adjustments can be done on the touch screen.
Chain
Aluminum alloy can make sure the cooling effect better. The width of the chain, forward or backward was adjusted by the motor.
Heater
It can adjust the temperature quickly and control the temperature precisely, which can save energy.
Guides
It can option for hydraulic or servo motor-driven mode and has strong power. Four-pillar can sure the guides run smoothly. And the servo stretch will make the product more uniform and the mold forming more perfect. The automatic lubrication can prolong the life of the machine.
Electrical
The layout of the electrical cabinet is reasonable, and it is easy to maintain. It can be upgraded and maintained remotely..
Winding
It is solid and durable. The operation is easy.
Mould Photos
