Pressure sensors are widely used in Air Conditioning.Refrigeration and Heat Pump system. Using a 5V excitation
input these sensors provide a 0.5-3.5 V or 0.5-4.5 V ratiometric signal output proportional to the pressure of the medium. This device requires no end user amplification.Pressure sensors permit to control and guarantee the
system working under safe and stability condition.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sanhua
-
Product Name:
-
Electronic Expansion Valve Temperature Sensor
-
Model Number:
-
YCQB
-
Current Consumption:
-
Max. 10mA
-
Supply Voltage:
-
5V+0.25V DC
-
Response Time:
-
10ms
-
Refrigerants:
-
R22,R134a,R404A,R407C,R410A,R507A
-
Insulation Resistance 4:
-
Min.100MΩ
-
Load Resistance:
-
Min.10kΩ
-
Protection Class:
-
IP66/IP67
Quick Details
-
Type:
-
ValvE
-
Application:
-
Refrigeration Parts
-
Weight (KG):
-
0.06
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sanhua
-
Product Name:
-
Electronic Expansion Valve Temperature Sensor
-
Model Number:
-
YCQB
-
Current Consumption:
-
Max. 10mA
-
Supply Voltage:
-
5V+0.25V DC
-
Response Time:
-
10ms
-
Refrigerants:
-
R22,R134a,R404A,R407C,R410A,R507A
-
Insulation Resistance 4:
-
Min.100MΩ
-
Load Resistance:
-
Min.10kΩ
-
Protection Class:
-
IP66/IP67
Products Description

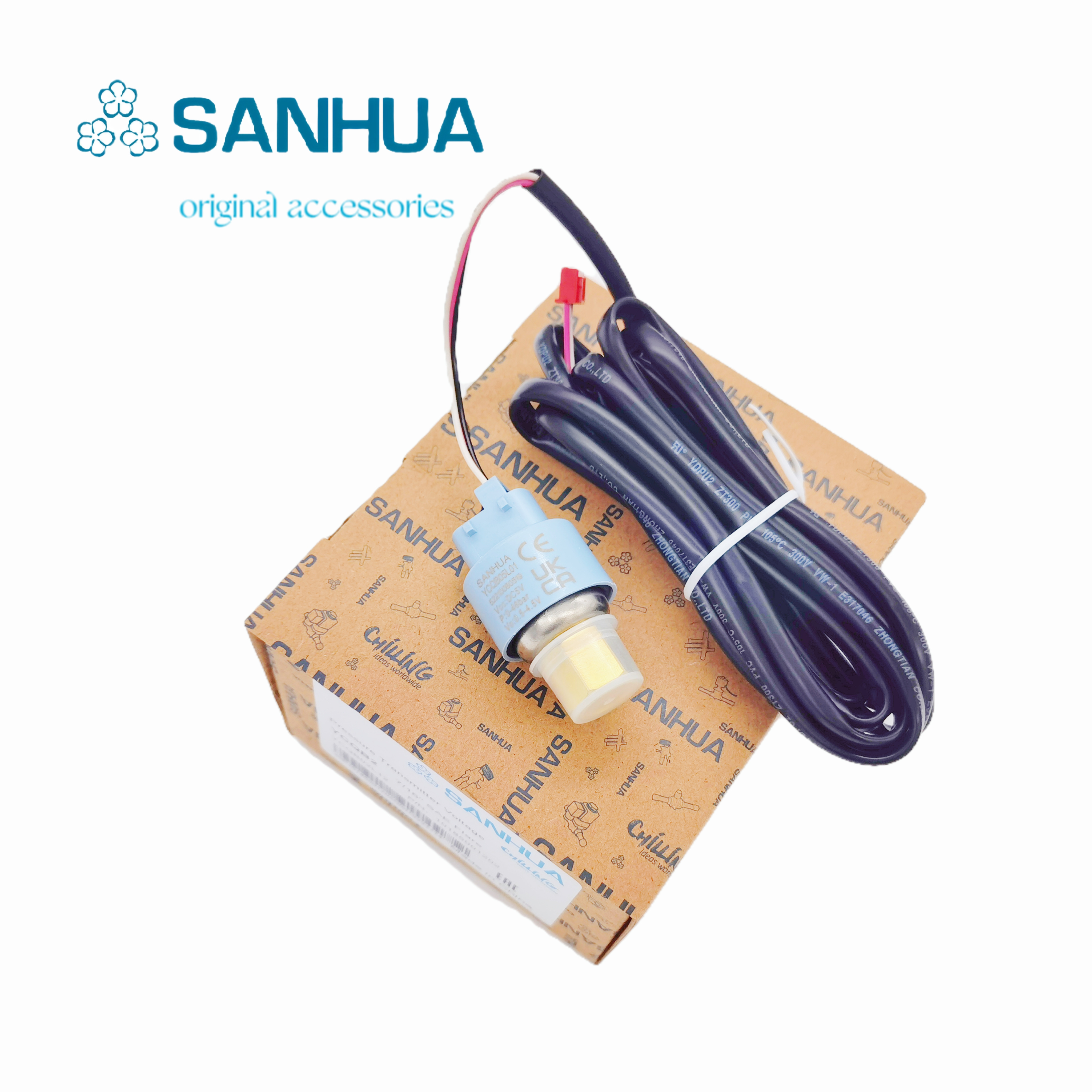

Pressure Sensor
