Quick Details
-
Model Number:
-
MR10N65
-
Dimension:
-
-
-
Output Power:
-
250w
-
Nominal Diameter ::
-
254(10'')mm
-
Nominal Impedance ::
-
8 Ohm
-
RMS Power Input ::
-
250 w
-
MAX Power Input ::
-
500 w
-
Sensitivity (1W/1M) ::
-
95.8B
-
Frequency Range ::
-
51-6500Hz
-
Voice Coil Diameter ::
-
65(2.6')mm
-
Voice Coil Winding Depth ::
-
13mm
-
Magnet ::
-
Ferrite Ring
-
Product Name:
-

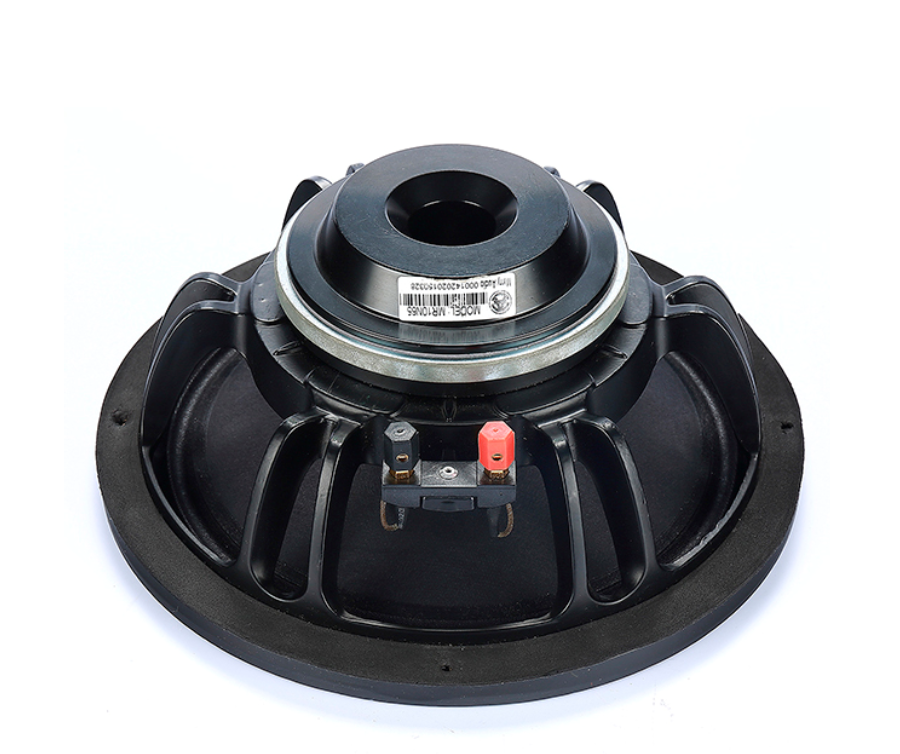

10 inch subwoofer
-
Certification:
-
ISO9001
Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Merry Audio
-
Model Number:
-
MR10N65
-
Dimension:
-
-
-
Output Power:
-
250w
-
Nominal Diameter ::
-
254(10'')mm
-
Nominal Impedance ::
-
8 Ohm
-
RMS Power Input ::
-
250 w
-
MAX Power Input ::
-
500 w
-
Sensitivity (1W/1M) ::
-
95.8B
-
Frequency Range ::
-
51-6500Hz
-
Voice Coil Diameter ::
-
65(2.6')mm
-
Voice Coil Winding Depth ::
-
13mm
-
Magnet ::
-
Ferrite Ring
-
Product Name:
-
10 inch subwoofer
-
Certification:
-
ISO9001
Products Description
|
Thiele & Small Parameters
|
|
|
|
|||
|
Resonance Frequency :
|
Fs
|
Hz
|
51
|
|||
|
DC Resistance :
|
Re
|
Ohm
|
5.2
|
|||
|
Mechanical Q Factor :
|
Qms
|
|
7.15
|
|||
|
Electrical Q Factor :
|
Qes
|
|
0.31
|
|||
|
Total Quality Factor :
|
Qts
|
|
0.29
|
|||
|
Equivalent Volume :
|
Vas
|
L
|
56
|
|||
|
Effective Moving Mass :
|
Mms
|
g
|
29.2
|
|||
|
Mechanical Compliance :
|
Cms
|
μm/N
|
328.9
|
|||
|
BL Factor :
|
BL
|
T.m
|
13.4
|
|||
|
Effective Piston Area :
|
Sd
|
cm²
|
346.4
|
|||
|
η(Eta Zero) :
|
η0
|
|
2.40%
|
|||
|
Max.Linear Excursion :
|
Xmax
|
mm
|
±2.5
|
|||
|
Mounting Information
|
|
|
|
|||
|
Overall Diameter :
|
|
mm
|
261
|
|||
|
Mounting Holes Diameter :
|
|
mm
|
246
|
|||
|
Bolt Circle Diameter :
|
|
mm
|
4*6.5
|
|||
|
Baffle Cut-Out Diameter :
|
|
mm
|
230
|
|||
|
Overall Depth :
|
|
mm
|
116
|
|||
|
Net Weight :
|
|
kg
|
6.5
|
|||
|
Shipping Weight :
|
|
kg
|
6.8
|
|||
|
Shipping Box(Single) :
|
|
cm
|
26.5*26.5*14
|
|||
|
Shipping Weight (4 Unit) :
|
|
kg
|
28.2
|
|||
|
Shipping Box (4 Unit) :
|
|
cm
|
55*28*33
|
|||
