Quick Details
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Fixed frequency
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
Contact us
-
Model Number:
-
MSABB-09ARN1-QB8
-
COP:
-
3.1
-
Power (W):
-
3500
-
Voltage (V):
-
220
-
Featured Function:
-
Cooling
-
Connecting tube:
-
Cooper Tube
-
Auto Restart function:
-
yes
-
Panel:
-
Hidden Display
-
NOISE LEVEL:
-
Super Low
-
Feature:
-
Low Energy
Quick Details
-
Warranty:
-
4 years
-
Type:
-

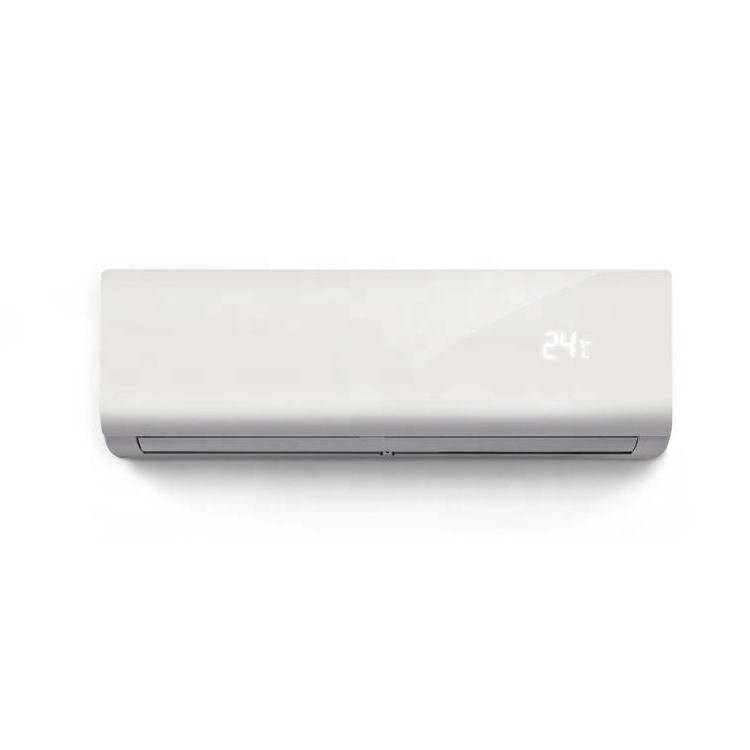

Split Wall Mounted Air Conditioners
-
Application:
-
Hotel, Household
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Fixed frequency
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
Contact us
-
Model Number:
-
MSABB-09ARN1-QB8
-
COP:
-
3.1
-
Power (W):
-
3500
-
Voltage (V):
-
220
-
Featured Function:
-
Cooling
-
Connecting tube:
-
Cooper Tube
-
Auto Restart function:
-
yes
-
Panel:
-
Hidden Display
-
NOISE LEVEL:
-
Super Low
-
Feature:
-
Low Energy
Products Description
|
Model
|
|
|
MSAF-12HRN1
|
||
|
Power supply
|
|
Ph-V-Hz
|
220-240V- 50Hz, 1Ph
|
||
|
Cooling
|
Capacity
|
Btu/h
|
12000
|
||
|
|
Input
|
W
|
1170
|
||
|
|
Rated current
|
A
|
5.4
|
||
|
|
EER
|
W/W
|
3.00
|
||
|
Heating
|
Capacity
|
Btu/h
|
12000
|
||
|
|
Input
|
W
|
1170
|
||
|
|
Rated current
|
A
|
5.4
|
||
|
|
COP
|
W/W
|
3.00
|
||
|
Max. input consumption
|
|
W
|
1600
|
||
|
Max. current
|
|
A
|
7.0
|
||
|
Starting current
|
|
A
|
26.7
|
||
|
Compressor
|
Model
|
|
PA145G1C-4FT
|
||
|
|
Type
|
|
ROTARY
|
||
|
|
Brand
|
|
GMCC
|
||
|
|
Capacity
|
Btu/h
|
12403/12488
|
||
|
|
Input
|
W
|
1245/1345
|
||
|
|
Rated current(RLA)
|
A
|
6.05/6.50
|
||
|
|
Locked rotor Amp(LRA)
|
A
|
26.7
|
||
|
|
Thermal protector
|
|
----
|
||
|
|
Thermal protector position
|
|
INTERNAL
|
||
|
|
Capacitor
|
uF
|
35
|
||
|
|
Refrigerant oil/oil charge
|
ml
|
ESTER OIL VG74/400
|
||
|
Indoor fan motor
|
Model
|
|
RPG20E
|
||
|
|
Input
|
W
|
45
|
||
|
|
Capacitor
|
uF
|
1.5
|
||
|
|
Speed(Hi/Mi/Lo)
|
r/min
|
1200 / 1050 / 800
|
||
|
Indoor coil
|
a.Number of rows
|
|
1/2
|
||
|
|
b.Tube pitch(a)x row pitch(b)
|
mm
|
21x13.37
|
||
|
|
c.Fin spacing
|
mm
|
1.2
|
||
|
|
d.Fin type (code)
|
|
Hydrophilic aluminium
|
||
|
|
e.Tube outside dia.and type
|
mm
|
Φ7,innergroove tube
|
||
|
|
f.Coil length x height x width
|
mm
|
621x84x13.37+621x210x26.74
|
||
|
|
g.Number of circuits
|
|
2
|
||
|
Indoor air flow (Hi/Mi/Lo)
|
|
m3/h
|
600/530/400
|
||
|
Indoor noise level (Hi/Mi/Lo)
|
|
dB(A)
|
41/37/31
|
||
|
Indoor unit
|
Dimension(W*D*H)
|
mm
|
800x188x275
|
||
|
|
Packing (W*D*H)
|
mm
|
865x265x350
|
||
|
|
Net/Gross weight
|
Kg
|
8 / 10
|
||
|
Outdoor fan motor
|
Model
|
|
YDK36-6
|
||
|
|
Input
|
W
|
70
|
||
|
|
Capacitor
|
uF
|
2.5
|
||
|
|
Speed
|
r/min
|
900 / -- / --
|
||
|
Outdoor coil
|
a.Number of rows
|
|
2
|
||
|
|
b.Tube pitch(a)x row pitch(b)
|
mm
|
21x13.37
|
||
|
|
c.Fin spacing
|
mm
|
1.5
|
||
|
|
d.Fin type (code)
|
|
Hydrophilic aluminium
|
||
|
|
e.Tube outside dia.and type
|
mm
|
Φ7,innergroove tube
|
||
|
|
f.Coil length x height x width
|
mm
|
754x504x26.74
|
||
|
|
g.Number of circuits
|
|
4
|
||
|
Outdoor noise level
|
|
dB(A)
|
56
|
||
|
Outdoor unit
|
Dimension(W*D*H)
|
mm
|
780x250x540
|
||
|
|
Packing (W*D*H)
|
mm
|
910x335x585
|
||
|
|
Net/Gross weight
|
Kg
|
30 / 32
|
||
|
Refrigerant type
|
|
g
|
R410A/990g
|
||
|
Design pressure
|
|
MPa
|
4.2/1.5
|
||
|
Refrigerant piping
|
Liquid side/ Gas side
|
mm(inch)
|
Φ6.35/Φ12.7(1/4"/1/2")
|
||
|
|
Max. refrigerant pipe length
|
m
|
20
|
||
|
|
Max. difference in level
|
m
|
8
|
||
|
Connection wiring
|
|
|
1.5(Optional)
|
||
|
Plug type
|
|
|
1.0x3 / IRAM
|
||
|
Thermostat type
|
|
|
Remote Control
|
||
|
Operation temperature
|
|
℃
|
17-30
|
||
|
Room temperature
|
Indoor(cooling/ heating)
|
℃
|
17-32/0-30
|
||
|
|
Outdoor(cooling/heating)
|
℃
|
18-43/-7-24
|
||
|
Application area (Cooling Standard)
|
|
m2
|
16-23
|
||
|
Qty’per 20’ /40’ /40'HQ
|
|
|
112/235/265
|
||
FAQ
Q1: Wonder if wou accept small orders?
A1: Do not worry. Feel free to contact us in order to get more orders and give our clients more convener ,we acceptsmall order.
Q2: Can you send products to my country?
A2: Sure, we can. lf you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make
samples for you ASAP.
Q4: What's wour payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the Pl,pay deposit then we will arrange the production.After finished production need you pay balance
Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually guote you within 24 hours after we get your inquiry. If you are very uraent to get the guotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
