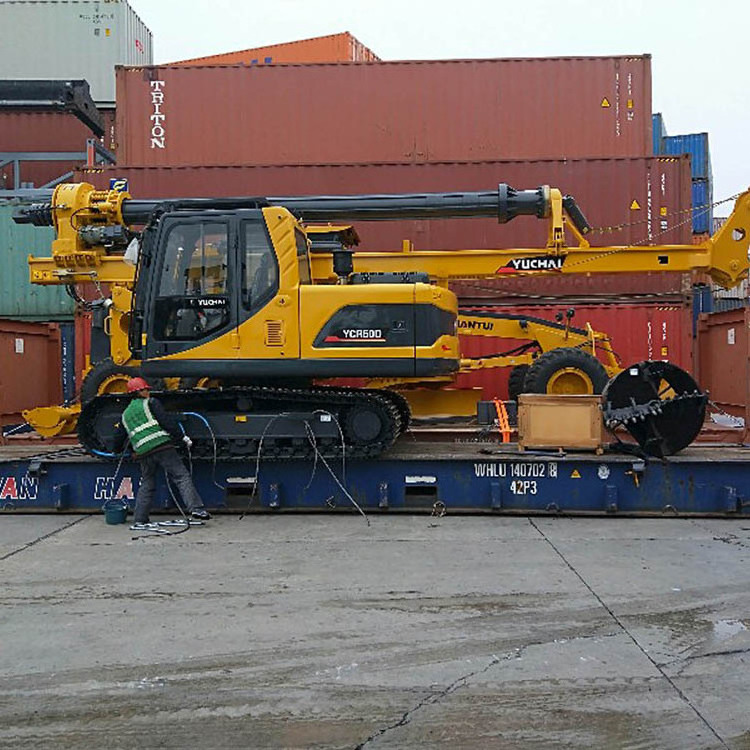

YUCHAI rotary drilling rig YCR60D hydraulic rotary drilling rig

High drilling capacity

14m friction Kelly, 13-14m interlocking Kelly made of high strength steel tubes are available; Maximum output torque reaches 205kN.m, the maximum pile depth is 64m down, maximum pile diameter is 1800mm.

Isuu engine with rated power of 212kW@2000rpm, six gears control provides strong power to the machine, improving the drilling capacity.

New design of main winch delivers faster line speed of 75m/min, bigger lifting power with 185kN line pull.

Safe and reliable

The 5th generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase drilling efficiency and safety.

ADMS intelligent operation system, advanced hydraulic system and heavy wide chassis ensure efficient, safe and stable operation.

Advanced welding robots, CNC automatic cutting machines ensure high precision and quality of the core components.

Easy to transport&operate

Compact in transport height and weight, the drilling rig is easy to transport in cities.

The tailored chassis with larger spaces for pumps and valves is for easy maintenance during work.

Spacious cab with panorama sunroof is designed to give the operator a comfortable environment and wide visibility.
