Quick Details
-
Brand Name:
-
Brogen
-
Model Number:
-
HDV LFP Power System
-
Battery Size:
-
1065*650*240mm
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
TBC
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Electric Energy:
-
200000 Wh
-
Battery Type:
-
Lifepo4
-
Nominal Voltage (V):
-
614.4
-
Norminal Capacity(Ah):
-
150
-
System Storage Capacity (KWh):
-
282.62
-
Cycle Life:
-
3500 Times(25℃)
-
Box Dimensions(mm):
-
1065*650*240
-
Energy Density:
-
>135Wh/kg
-
Storage Temperature:
-
-20°C~55°C
-
Protection:
-
IP67
Quick Details
-
Storage Type:
-
-20°C~55°C
-
Anode Material:
-
LFP
-
Application:
-
Heavy-duty EV
-
Brand Name:
-
Brogen
-
Model Number:
-
HDV LFP Power System
-
Battery Size:
-
1065*650*240mm
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
TBC
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Electric Energy:
-
200000 Wh
-
Battery Type:
-
Lifepo4
-
Nominal Voltage (V):
-
614.4
-
Norminal Capacity(Ah):
-
150
-
System Storage Capacity (KWh):
-
282.62
-
Cycle Life:
-
3500 Times(25℃)
-
Box Dimensions(mm):
-
1065*650*240
-
Energy Density:
-
>135Wh/kg
-
Storage Temperature:
-
-20°C~55°C
-
Protection:
-
IP67

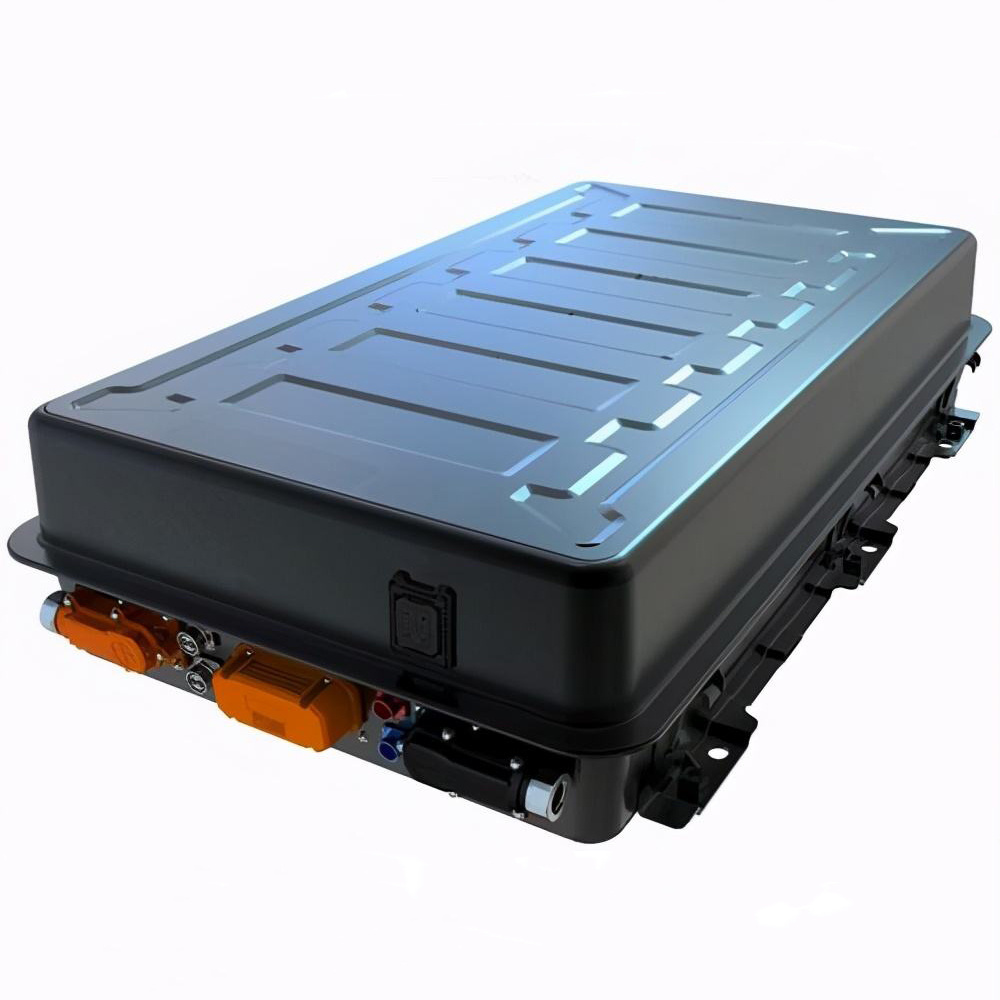

LFP Battery Solutions
Standard LFP Battery Solution
Our standard LFP battery solutions are designed for safety, reliability and durability. These solutions address a wide range of applications, including public transit, mass transit, urban delivery, shuttles, special needs transportation, trucking, and various scenarios.
Key Features
1.
Highly integrated, enhancing unit volume energy density
The high integration includes comprehensive and
highly reliable active safety features, such as
integrated
harnesses, aluminum bars, temperature
sensors, as well as all-around features like internal
pressure, explosion-proof valves, electrolyte detection,
and BMS acquisition boards in the battery pack.
This results in a space savings of 5% – 10%.
2. Increased insulation resistance reduces the risk of accidents
The insulation resistance between adjacent aluminum
bars and between aluminum bars and temperature
sensors meets the 2000V insulation resistance standard. The insulation resistance between aluminum bars and PC modules meets the 6000V insulation resistance standard. This significantly reduces the risk of accidents caused by traditional harness insulation aging, breakage, and short circuits.
3.
Standard integrated products enhance quality and efficiency
Improves overall PACK production efficiency, saving
costs. Standardized products greatly simplify the
assembly production process, ensuring product quality.
BMS Advantages
1. Self-developed Thermal Management System
Equipeed with a heating and cooling system, our BMS
can operate efficiently in ambient temperatures ranging from -35°C to 45 °C.
2. High-precision Calculation
Our BMS ensures high-precision State of Charge (SOC)
with an error of ≤3%, and accurate State of Health (SOH) assessments with a battery cell health error of ≤5%.
3. High-speed Daisy Chain Communication
The BMS utilizes high-speed daisy chain communication, offering a superior data transmission rate, lower power consumption, enhanced stability in communication, and robust anti-interference capability. This makes it
well-suited for specialized working environments
such as airports.
>> Independent slave control: easy installation and maintenance
>>
Integrated liquid cooling: high temperature applicability
>> All aluminum housing
>> High energy density
>> Protection class - IP67
>> Standard charge - 1C
>> Suitable for electric car and bus...
>> Standard with heating film
Matches up to 420kwh pack
|
LFP Battery Parmameters
|
C Box
|
C Box
|
C Box
|
C Box
|
C Box
|
|
Dimension
|
1060*630*240
|
1060*630*240
|
1060*630*240
|
1060*630*240
|
1060*630*240
|
|
Battery cell
|
105Ah
|
173Ah
|
230Ah
|
280Ah
|
304Ah
|
|
Series parallel number
|
2P48S
|
1P63S
|
1P48S
|
1P36S
|
1P36S
|
|
System capacity
|
210Ah
|
173Ah
|
230Ah
|
280Ah
|
304Ah
|
|
Rated system voltage
|
153.6V
|
202.86V
|
153.6V
|
115.2V
|
115.2V
|
|
System power KWh
|
32.256KWH
|
35.095KWH
|
35.328KWH
|
32.256KWH
|
35.020KWH
|
Battery Solution Example —— for
25Tons H
eavy Trucks
System Power: 282.62Kwh
Matching scheme: 2P192S
Rated Voltage: 614.4V
Rated Capacity: 460Ah
Battery Scheme: 8 battery boxes,
24pcs* 230Ah 1P16S modules
Dimension: 1060*630*240mm
Heating mode: heating film/water cooling system
Application: 8m~10m electric buses/heavy trucks
|
Number
|
Part name
|
Specification and model (or description)
|
unit
|
quantity
|
remarks
|
|
1
|
Battery module
|
230Ah 1P16S module
|
PC
|
24
|
|
|
2
|
BMS
|
1 BMU + 8* M 48, and supporting communication acquisition wire harness in the box
|
set
|
1
|
|
|
3
|
PDU
|
|
set
|
1
|
Inclusion BMS master + high voltage components
|
|
4
|
Power output wiring harness
|
|
set
|
2
|
Discharge positive electrode, discharge negative electrode
|
|
5
|
Vehicle communication wiring harness
|
|
set
|
1
|
Low voltage
|
|
6
|
CCS Charging seat wiring harness
|
|
set
|
1
|
Charging wiring harness
|
|
7
|
Battery input harness
|
|
set
|
4
|
Battery positive electrode, battery negative electrode
|
|
8
|
Power wire harness between the battery boxes
|
|
set
|
6
|
|
|
9
|
Communication wiring harness between the battery boxes
|
|
set
|
8
|
|
|
10
|
EVCC
|
|
set
|
1
|
|
|
11
|
Charge harness
|
|
set
|
1
|
|
|
LFP Battery System Solutions for HCVs
|
|
|
|
|||
|
System Capacity (KWh)
|
282.62
|
350.21
|
266.4
|
|||
|
Nominal Voltage (V)
|
614.4
|
576
|
666
|
|||
|
Voltage Operating Range (V)
|
480-700.8
|
450-657
|
540-738
|
|||
|
Rated Current (Ah)
|
460
|
608
|
400
|
|||
|
Battery Packing Scheme
|
2P192S
|
2P180S
|
4P180S
|
|||
|
Energy Density(Wh/kg)
|
150
|
>=160
|
>=160
|
|||
|
Weight(kg)
|
1920
|
2500
|
3500
|
|||
|
Dimensions(mm)
|
890*450*270
|
1065*624*240
|
999.7*725*267.2
|
|||
|
Communication
|
CAN
|
CAN
|
CAN
|
|||
|
Application
|
25T Trucks
|
40T Trucks
|
Port AGV
|
|||
|
LFP Battery System Solutions for LCVs
|
|
|
|
|
|
|
|
|||||||
|
LFP BatterySystem Capacity (KWh)
|
33.79
|
35.9
|
46
|
55.44
|
71.45
|
92.16
|
131.98
|
|||||||
|
Nominal Voltage (V)
|
307.2
|
326.4
|
307.2
|
336
|
626.64
|
307.2
|
537.6
|
|||||||
|
Rated Current (Ah)
|
110
|
110
|
150
|
165
|
114
|
300
|
245.5
|
|||||||
|
Energy Density(Wh/kg)
|
126.61
|
128.04
|
136.1
|
141.47
|
170
|
135
|
168
|
|||||||
|
Driving Mileage(Km, working condition)
|
190
|
245
|
220
|
270
|
/
|
/
|
/
|
|||||||
|
Max. Speed (Km/h)
|
80/105
|
105
|
100
|
100
|
/
|
/
|
/
|
|||||||
|
Weight(kg)
|
270±10
|
292±10
|
353±10
|
395±10
|
420
|
353±10
|
833.2
|
|||||||
|
Dimensions(mm)
|
1442*928*209.5
|
1440*805*236
|
1522*820*205
|
1511*864*218
|
1356*800*350
|
/
|
/
|
|||||||
|
Warranty
|
5 years or 120,000km
|
|
5 years or 20000km
|
|
|
|
|
|||||||
|
Application
|
Mini Truck/Mini Van
|
|
Haice Van
|
|
Light Trucks
|
6m Mini Buses
|
|
|||||||
Blade Battery Solutions
|
Battery Cell
|
Parallel
|
|
3P
|
|
4P
|
|
|||
|
Ah
|
Voltage(V)
|
Series
|
Capacity(kwh)
|
Battery box quantity
|
Capacity(kwh)
|
Battery box quantity
|
|||
|
160Ah
|
601.6
|
188
|
288.768
|
2
|
385.024
|
4
|
|||
|
244Ah
|
537.6
|
168
|
393.5
|
6
|
524.7
|
8
|
|||
|
|
576
|
180
|
421.6
|
6
|
562.2
|
8
|
|||
|
|
614.4
|
192
|
449.7
|
6
|
599.7
|
8
|
|||
|
330Ah
|
604.8
|
189
|
598.75
|
9
|
798.34
|
12
|
|||
|
|
633.6
|
198
|
627.26
|
9
|
836.35
|
12
|
|||
|
|
662.4
|
207
|
655.78
|
9
|
874.37
|
12
|
|||
|
|
691.2
|
216
|
684.29
|
9
|
912.38
|
12
|
|||
Our Projects
OEM & ODM
Battery Supplier for the Commercial Vehicle Market
- High-Voltage (300V-800V) in Focus -
· Responsive and Cost-effective solutions for SMEs.
· Low MOQ: 100-1,000 EVs per year.
· Expert in custom product development and mass production.
· One-on-one service with full after-sales support.
* We DO NOT Offer Aftermaket Auto Parts.
Why Choose Brogen EV Battery Solutions?
High Security
High safety LFP system promise NO battery fires. The experienced team is able to provide precise control over the BMS. IATF16949 and ISO26262 dual certification more stringent automotive quality system to ensure product safety and quality.
High Quality
We partner with renowned EV battery manufacturers such as CATL, Gotion, and CALB
to ensure the highest quality. These batteries have proven their reliability in tens of millions of EVs worldwide, guaranteeing a safe and efficient power source for your fleet.
Cost-saving
We offer cost-effective solutions. Take advantage
of advanced EV battery technology at a reasonable price, making it accessible to small businesses. Enjoy the benefits of world-class batteries that extend battery life by 1-5 years and significantly saving your budget and operating costs.
Efficiency and Flexibility
From customizing unique requirements, designing appropriate solutions to high-quality production in small MOQ, our team is committed to guide you through every step of the journey, ensuring quick response and expert technical support.
