Quick Details
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
1200*800*1020mm,1500*800*1160mm,2500*1600*2700mm
-
Weight:
-
270 KG
-
Marketing Type:
-
Hot Product 2023
-
Function:
-
Making edible oil
-
Application:
-
Screw oil expeller
-
Raw material:
-
Soybean,coconut,palm,almond,sunflower,peanut,sesame
-
Method to press:
-
Screw squeezed press
-
Color:
-
Customer required
-
Feature:
-
Automatic machine
-
Advantage:
-
High oil press yield rate
-
Application range:
-
Crude seed oil
-
OEM/ODM:
-
Accept
-
Certification:
-
CE/ISO9001
Quick Details
-
Production Capacity:
-
400-500kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gondor
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
1200*800*1020mm,1500*800*1160mm,2500*1600*2700mm
-
Weight:
-
270 KG
-
Marketing Type:
-
Hot Product 2023
-
Function:
-
Making edible oil
-
Application:
-
Screw oil expeller
-
Raw material:
-
Soybean,coconut,palm,almond,sunflower,peanut,sesame
-
Method to press:
-
Screw squeezed press
-
Color:
-
Customer required
-
Feature:
-
Automatic machine
-
Advantage:
-
High oil press yield rate
-
Application range:
-
Crude seed oil
-
OEM/ODM:
-
Accept
-
Certification:
-
CE/ISO9001

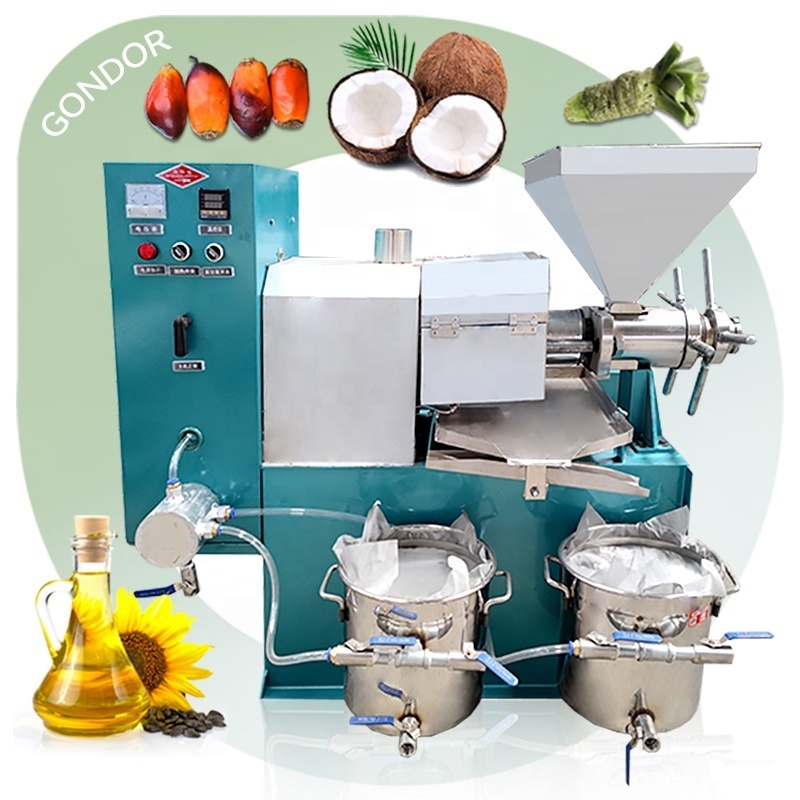

Introduction
An oil press, also known as an oil expeller or oil extraction machine, is a mechanical device used to extract oil from various oil-bearing raw materials, such as seeds, nuts, or fruits. This oil extraction process is accomplished through the application of mechanical pressure to the raw materials, forcing the oil out while leaving behind the solid residue. Oil presses have been in use for centuries and have evolved into modern, efficient machines used in a wide range of applications.
Application
Screw oil press can press a wide range of oil plants, including peanuts, rapeseed, sesame, sunflower soybean, Chinese prickly ash, sesame seeds, camellia seeds, chili seeds, olives, palm fruit, coconut, etc.
Spiral oil press can be used in scenarios such as canteens, shops, factories, and food cities.
Features
1. Applied to over 30 oil crops.
2. High quality snail squeezing makes oil production more efficient.
3. Low temperature pressed cakes have minimal protein damage.
4. Vacuum filtration residue to ensure pure oil quality.
Parameter
| Model | Handling capacity | Power of motor | Dimension | Weight |
| GD-SOPM60 | 30-40kg/h | 2.2kw | 1280*860*1210mm | 270kg |
| GD-SOPM70 | 60-70kg/h | 3kw | 1450*900*1300mm | 300kg |
| GD- S OPM80 | 80-120kg/h | 5.5kw | 1500*900*1620mm | 350kg |
| GD-SOPM100 | 200-250kg/h | 7.5kw | 1960*1250*1670mm | 850kg |
| GD-SOPM125 | 300-400kg/h | 15kw | 2500*1100*2300mm | 950kg |
| GD-SOPM130 | 100-200kg/h | 15kw | 2760*1100*1850mm | 1300kg |
| GD-SOPM160 | 400-500kg/h | 30kw | 2500*1600*2700mm | 1420kg |
Q1 How does an oil press work?
A:An oil press works by applying mechanical pressure to oil-containing materials, using screws or hydraulic presses. This pressure squeezes the oil out of the material, then collects it and separates it from the solid residue.
Q2 What types of seeds and nuts can be processed with an oil press machine?
A:Oil press machines can process a variety of seeds and nuts, including but not limited to sunflower seeds, soybeans, peanuts, sesame seeds, rapeseeds, and more.
Q3 Are there different types of oil press machines available?
A:Yes, there are various types of oil press machines, including screw oil presses, hydraulic oil presses. Each type has its own advantages and is suited to different applications.
Q4 What safety features are included in oil press machines?
A:Common safety features may include emergency stop buttons, protective guards, and safety sensors to prevent accidents during operation.
Q5 What power source does an oil press machine require?
A: Oil press machines can run on various power sources, including electricity, diesel engines, or hydraulic power, depending on the machine's design.
Installing waterproof membrane to reduce dust and water pollution.
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation.
Delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
