Variety of power supply methods
220VAC/ 24VDC/battery
and signal output using
RS485
serial communication interface , and support
MODBUS/RTU
protocol,
GPRS
and other way of communications as well as accumulative
pulse
output.
It is
Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking,
water supply and drainage, food, medicine and other industries.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HLS
-
Model Number:
-
HLSLD
-
Accuracy:
-
0.2%/ 0.5%
-
Power supply:
-
220VAC/ 24VDC/battery
-
Output:
-
4-20mA/pulse/RS485/RS232
-
Material:
-
Stainless Steel
-
Display:
-
LCD Digital Display
-
Pressure:
-
0.6~4.0MPa
-
Protection Class:
-
IP65 IP68
-
Medium:
-
Conductive Liquid
-
Connection:
-
Flange Connection
-
Medium temperature:
-
20 C~+120
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HLS
-
Model Number:
-
HLSLD
-
Accuracy:
-
0.2%/ 0.5%
-
Power supply:
-
220VAC/ 24VDC/battery
-
Output:
-
4-20mA/pulse/RS485/RS232
-
Material:
-
Stainless Steel
-
Display:
-
LCD Digital Display
-
Pressure:
-
0.6~4.0MPa
-
Protection Class:
-
IP65 IP68
-
Medium:
-
Conductive Liquid
-
Connection:
-
Flange Connection
-
Medium temperature:
-
20 C~+120
Product Description

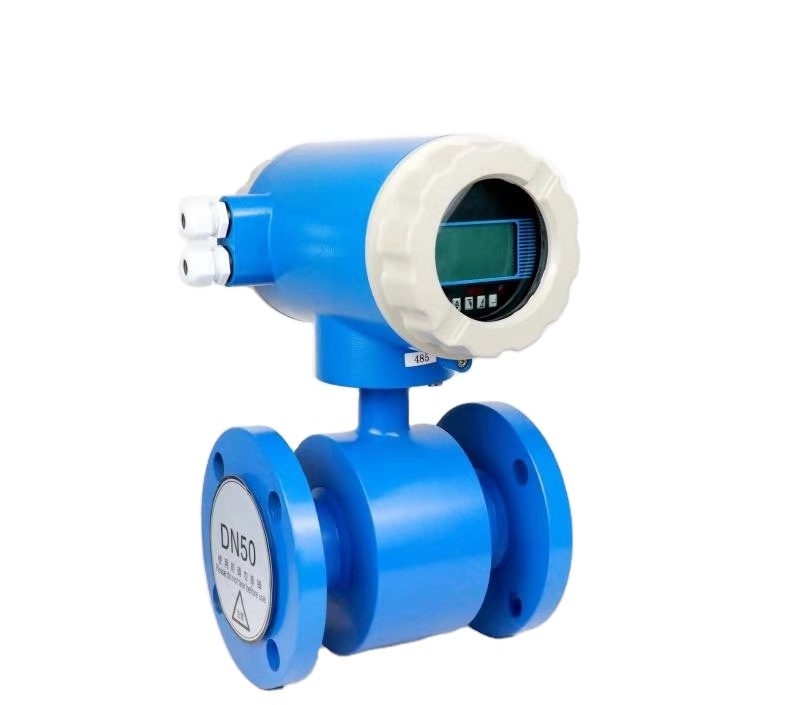

Electromagnetic Flow meter
|
Electromagnetic flow meter
|
|
|
|
|||
|
Performance
|
Technical Parameters
|
|
|
|||
|
Nominal diameter
|
DN3——DN3000mm
|
|
|
|||
|
Accuracy
|
±0.5% of indicated value,
optional ±0.3% or ±0.2% of indicated value |
|
|
|||
|
Display
|
HD LCD, instantaneous flow, cumulative flow, etc
|
|
|
|||
|
Language
|
Chinese, English, Spanish, Russian, etc.; minor languages can be customized.
|
|
|
|||
|
Signal output
|
Pulse; 4~20mA
|
|
|
|||
|
Communication
|
RS485,GPRS,Hart
|
|
|
|||
|
Lining material
|
Polytetrafluoroethylene, PFA, F46,
neoprene, polyurethane rubber, high temperature rubber |
|
|
|||
|
Electrode material
|
SUS316, Hastelloy B/C, titanium, tantalum,
platinum-iridium alloy, stainless steel coated with tungsten carbide |
|
|
|||
|
Electrode form
|
Standard type, scraper type, replaceable type
|
|
|
|||
|
Connection method
|
Flange connection, plug-in connection,
clamp connection, thread connection, flange clamp connection |
|
|
|||
|
Medium temperature
|
Integrated
Split |
-20℃～+60℃
|
|
|||
|
|
|
Neoprene lining,
polyurethane lining |
-10℃～+80℃
|
|||
|
|
|
PTFE lining,
PFA lining, F46 lining |
-10℃～+160℃
|
|||
|
Nominal pressure
|
0.6～4.0Mpa (special pressure can be customized)
|
|
|
|||
|
Ambient temperature
|
-25℃～+60℃
|
|
|
|||
|
environment humidity
|
5～100%RH (relative humidity)
|
|
|
|||
|
Dielectric conductivity
|
≥20μs/cm
|
|
|
|||
|
Measuring range
|
1500: 1 Flow velocity setting <15m/s
|
|
|
|||
|
structure type
|
Integrated type, split type, immersion type, explosion-proof type
|
|
|
|||
|
Protection level
|
IP65, IP68 optional
|
|
|
|||
|
Explosion-proof mark
|
ExmdIIT 6
|
|
|
|||
Why Choose Us
Contact US
Contact us,
Send an inquiry to us ,
we will send you our flowmeter
product catalog
,
and we will recommend
the most suitable product
based on size, medium, flow range, etc.
Supplier's popular products
Company Introduction
After Sales Service.
We promise to deliver the following after-sales service:
1.Warranty
: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to
manufacturing quality;
manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at
our discretion based on actual charges incurred such as travel expense;
our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not
arising from manufacturing quality issues or meter damages not within the scope of warranty.
arising from manufacturing quality issues or meter damages not within the scope of warranty.
packaging&shipping
FAQ
Q1: Can you accept OEM service ?
A:We professional provide OEM service for electromagnetic flow meter.
Q2: Could I get samples?
A:Yes,we can arrange production and delivery as soon as possible to help you get the sample.
Q3:How about the quality of themagnetic flow meter?
A:Every magnetic flow meter is five-pionted calibrated in flow meter calibration equipment,we'd provide factory certification test to you.
Q4: Could you provide me the shortest lead time?
A:Generally delivery is 2-3 working days after received payment,if urgently required,we will try our best to satisfy you.
Q5: Could I visit your factory?
A:Welcome to visit us,we will guide your visit in our factory.
Q6:What is your MOQ?
A:To start our cooperation, sample order is acceptable.
