Quick Details
-
Product name:
-
total station WINDOWS CE
-
Type:
-
Optical Equipments
-
Working temperature:
-
-20℃ ~ 50℃
-
Weight:
-
6.8KG
-
Magnification:
-
30X
-
Non-prism:
-
600m
-
Display:
-
Double LCD Display
-
Model:
-
T09 PLUS
-
Color:
-
Yellow
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DADI
-
Model Number:
-
DTM952R
-
Product name:
-
total station WINDOWS CE
-
Type:
-
Optical Equipments
-
Working temperature:
-
-20℃ ~ 50℃
-
Weight:
-
6.8KG
-
Magnification:
-
30X
-
Non-prism:
-
600m
-
Display:
-
Double LCD Display
-
Model:
-
T09 PLUS
-
Color:
-
Yellow
Technology Parameters
|

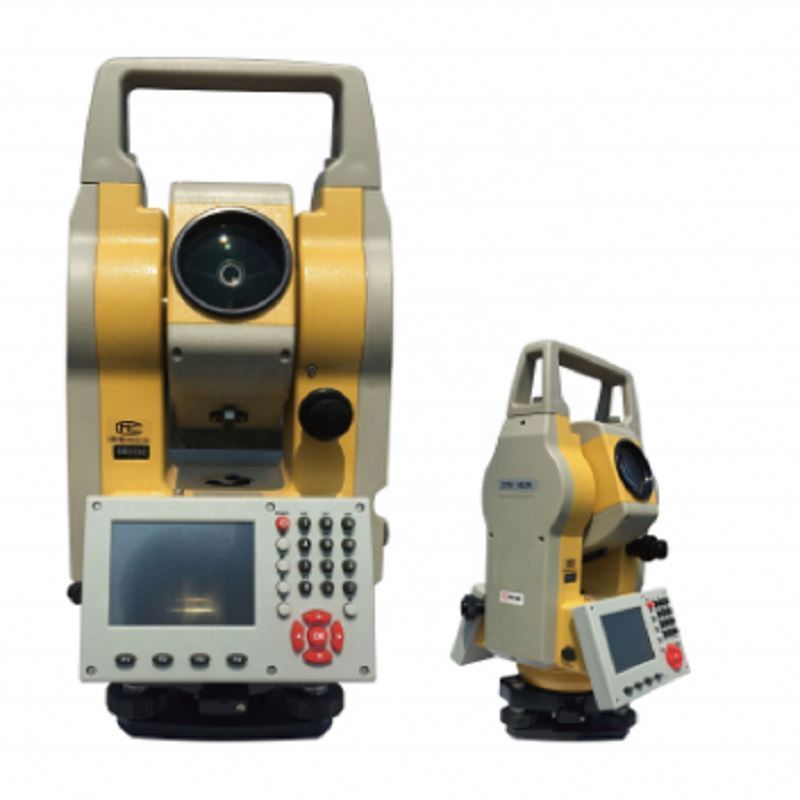

DTM952R -- WINCE Non-Prism Laser Ranging Total Station |
||||
|
Distance Measurement Section |
||||
|
Range |
Non-prism |
600m |
||
|
prism |
Single prism |
3000m |
||
|
Three prism |
5000m |
|||
|
Accuracy |
Non-prism |
±(3mm+2ppm·D) |
||
|
Prism |
±(2mm+2ppm·D), ±(3mm+2ppm·D) |
|||
|
Unit |
m/ft |
|||
|
Display |
Maximum |
99999999.9999m |
||
|
Minimum |
0.1mm |
|||
|
Measuring time |
Precise model:1S, Track model:0.8S |
|||
|
Number of time Set |
1 ~ 99 |
|||
|
Meteorologiccorrection |
Input the value and correct automatic |
|||
|
Prismconstant |
Input the value and correct automatic |
|||
|
Angle Measurement Section |
||||
|
Method |
Absolute coding |
|||
|
Grating diameter |
79mm |
|||
|
Minimum reading |
1″ |
|||
|
Detection |
Horizontal |
Diametrical detection |
||
|
Vertical |
Diametrical detection |
|||
|
Accuracy |
2″ |
|||
|
Telescope Section |
||||
|
Imaging |
Positive |
|||
|
Length |
170mm |
|||
|
Effectiveaperture |
48mm |
|||
|
Magnification |
30× |
|||
|
Angle of vision |
1.5° |
|||
|
Distinguishability |
3.5″ |
|||
|
Minimum focus distance |
1.5m |
|||
|
Compensator |
||||
|
System |
Double axis photoelectric tilt sensor or Single axis liquid tilt sensor |
|||
|
Working range |
±3′ |
|||
|
Distinguishability |
1″ |
|||
|
Display Section |
||||
|
Type |
Double sides,320×240 LCD Display |
|||
|
Data Transmission |
||||
|
Port |
Bluetooth,SD Card,USB,RS-232C |
|||
|
Capacity |
40,000 data at least |
|||
|
Others |
||||
|
Plummet |
Optical or Laser plummet |
|||
|
Power |
Rechargeable lithium battery,DC7.4V,3600mAh |
|||
|
Continuous working time |
4 hours at least |
|||
|
Size |
174×207×383mm |
|||
|
Weight |
6.8Kg |
|||
|
Working temperature |
-20℃ ~ 50℃ |
|||
