- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Vanguard T1
-
Voltage:
-
220V/110V
-
Rated Power:
-
180w
-
Dimension(L*W*H):
-
3560x280x250mm
-
Weight (KG):
-
127 KG
-
Year:
-
2021
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Cutting thickness:
-
0-200mm
-
Cutting speed:
-
0-2500mm/mim
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Control system:
-
Shanghai Fangling
-
LCD Dimension:
-
Arc Voltage Auto THC
-
Nesting software:
-
Fastcam Standard
Quick Details
-
Dimensions:
-
Actual Model
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
FyeBoon
-
Model Number:
-
Vanguard T1
-
Voltage:
-
220V/110V
-
Rated Power:
-
180w
-
Dimension(L*W*H):
-
3560x280x250mm
-
Weight (KG):
-
127 KG
-
Year:
-
2021
-
Cutting material:
-
Metal Stainless Steel Carbon Steel
-
Cutting thickness:
-
0-200mm
-
Cutting speed:
-
0-2500mm/mim
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Control system:
-
Shanghai Fangling
-
LCD Dimension:
-
Arc Voltage Auto THC
-
Nesting software:
-
Fastcam Standard
Product Info

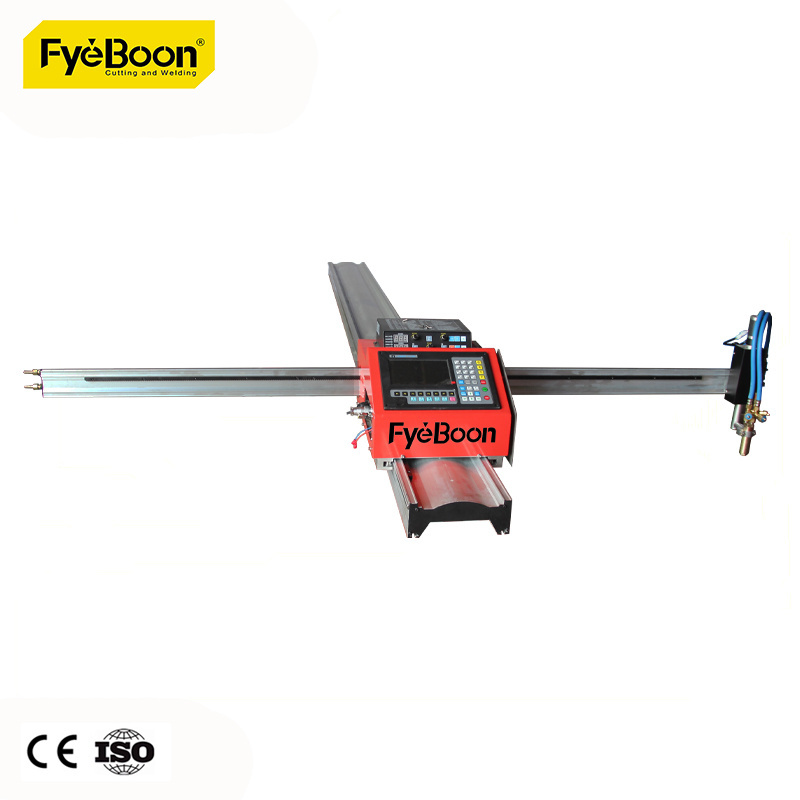

Machine Introduction Portable CNC Plasma Cutting Machine Portable CNC Plasma Cutting Machine
Our Vision has always been to create a Potable Machine that is entirely a Vanguard. One so automatic that the equipped torch height controller ensures automatic torch moving. With Vanguard T1, that vision is now a reality.
Reinvents the Portable.
|
Main Feature
|
|
|
|
1
|
Automatic THC:
More sensitive torch height controller
|
|
|
2
|
Top Brand CNC for
Easy Operation
|
|
|
3
|
Equipped with
Plasma/Flame/Both
|
|
|
4
|
Accurate Cutting:
Elastic fixing in X/Y axis for automatically adjustable motor
|
|
|
5
|
Stable Cutting:
Wider crossbeam (80mm) to avoid vibration
|
|
|
6
|
Larger Thickness Cutting:
Max 200A plasma power for 30mm Steel
|
|
|
Vanguard T1
|
|
|
|
|||
|
Effective Cutting Area
|
1500*3000mm/Customized
|
Input Voltage
|
230/110V 50/60Hz
|
|||
|
Cutting Thickness
|
Flame: 6~200mm
|
Power Supply
|
180W
|
|||
|
|
Plasma: depend on plasma power
|
LCD Dimension
|
7 Inches color display
|
|||
|
Plasma Power Supply
|
According to USER'S Requirement
|
Crossbeam
|
2000 (+500mm)
|
|||
|
Driver
|
Mixed Stepper Motor Driver
|
Rail
|
3500mm (+500mm)
|
|||
|
Cutting Speed
|
0~2500mm/mim
|
Plasma/Flame THC
|
AHC and IHS; Motorized Lifter
|
|||
|
Program Software
|
FastCAM (Basic Version)
|
Plasma Air
|
Only Pressed Air
|
|||
|
Cutting Material
|
Carbon/Stainless Steel/Aluminum
|
Cutting Gas
|
Acetylene/Propane/Methane
|
|||
|
Cutting Accuracy
|
+/- 0.5mm ( JB/T5102-1999)
|
Color
|
Red/Customized
|
|||
cheap cnc plasma cutter
Portable CNC Plasma Cutting Machine Portable CNC Plasma Cutting Machine Portable CNC Plasma Cutting Machine
Recommend Products
Por
cheap cnc plasma cutter
table CNC Plasma Cutting Machine Portable CNC Plasma Cutting Machine Portable CNC Plasma Cutting Machine
Contact
P
cheap cnc plasma cutter
ortable CNC Plasma Cutting Machine Portable CNC Plasma Cutting Machine Portable CNC Plasma Cutting Machine
Exhibition & Feedback
cheap cnc plasma cutter
Portable CNC Plasma Cutting Machine Portable CNC Plasma Cutting Machine Portable CNC Plasma Cutting Machine
Packing & Delivery
Payment & Service
File Service
Instruction Manual
Installation Video
Video Teaching
Video Teaching
Visual Service
Remotely diagnose problems
Reducing downtime and cost to send a field technician
Reducing downtime and cost to send a field technician
Training
Immense cumulative experience: machine operation, programming, and cutting, CAD/CAM software
Our Company
FAQ
Q1. How can I choose a suitable CNC cutting machine?
Just tell us the max cutting area, the material and its thickness, we can help you choose the best CNC cutting machine.
Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.
Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.
Just tell us the max cutting area, the material and its thickness, we can help you choose the best CNC cutting machine.
Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.
Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.
Q4. What other things also need after we bought the machine?
For Flame Cutting: you just need to access to oxygen and fuel gas;
For Plasma Cutting: you need a plasma power source and air compressor. You can buy the plasma power supply by yourself or buy together with the cutting machine from us, it's optional. If you buy it from us, we will connect the wires of plasma power source and CNC cutting machine together, then it is more convenient to use.
Q5. Can I change input voltage to my local voltage and frequency?
Yes, we can supply frequency and voltage according to your local standard. Such as 110V/220V/380V/415V/440V, and 50HZ/60HZ.
For Flame Cutting: you just need to access to oxygen and fuel gas;
For Plasma Cutting: you need a plasma power source and air compressor. You can buy the plasma power supply by yourself or buy together with the cutting machine from us, it's optional. If you buy it from us, we will connect the wires of plasma power source and CNC cutting machine together, then it is more convenient to use.
Q5. Can I change input voltage to my local voltage and frequency?
Yes, we can supply frequency and voltage according to your local standard. Such as 110V/220V/380V/415V/440V, and 50HZ/60HZ.
