If you have other accessories requirement, please contact us separately.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
6-45m Communication radio tower telescopic mast antenna mast
-
Extended length:
-
6.0m telescopic mast antenna mast
-
Closed length:
-
1.7m (Bottom base included)
-
Max payload:
-
30kgs
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
number of sections:
-
5 telescopic mast antenna mast
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
Bottom base::
-
180mm
-
Certificate:
-
CE
Quick Details
-
Brand Name:
-
telescopic antenna mast
-
Model Number:
-
TAL-M6-1.7-30
-
Place of Origin:
-
Tianjin, China
-
Product name:
-
6-45m Communication radio tower telescopic mast antenna mast
-
Extended length:
-
6.0m telescopic mast antenna mast
-
Closed length:
-
1.7m (Bottom base included)
-
Max payload:
-
30kgs
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
number of sections:
-
5 telescopic mast antenna mast
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
Bottom base::
-
180mm
-
Certificate:
-
CE
Product Description

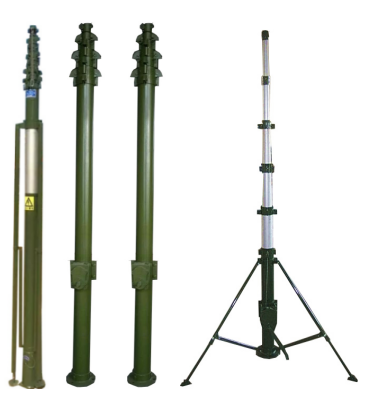

6m Communication radio tower telescopic mast antenna mast
|
Specifications of telescopic mast antenna mast
|
|
|
|
Closed length:
|
1.7m
|
|
|
Extended length:
|
6.0m
|
|
|
Max.payload:
|
30kg
|
|
|
Diameter range
|
50mm-90mm
|
|
|
Material:
|
Main Pole: aluminum alloy , stainless steel, fiberglass
Bottom base,rotation platform and tripod: iron steel |
|
|
Color of telescopic mast antenna mast
|
We usually process three colors of Army green, the original color of aluminum, black, but any particular colour OEM is available, most of the customers prefer army green.
The whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color. |
|
|
Appllication
|
Telescopic mast antenna mast is suitable for car,ship or land.It can help light transmission and camera and other equipment rise and drop to a predetermined height after its work.The company's products are also widely used in golf, soccer stadium lighting at night.
|
|
Accessories
Accessories
Usually the pulling rope used on less than 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile
Detailed Images
|
Accessories of telescopic mast antenna mast
|
|
|
Main pole
|
1 unit
|
|
Pulling cord box with handle bars
|
3units
|
|
Handle lifting bar
|
2pieces
|
|
Tripod
|
1unit
|
|
Stainless steel sticks
|
6pieces
|
|
Ground anchor
|
3 pieces
|
|
Hand- operated valve (pneumatic mast)
|
1 piece
|
|
Air compressor(pneumatic mast)
|
1 piece
|
|
PU tube(pneumatic mast)
|
2 piece
|
|
Top platform
|
1 piece
|
|
Motor(electric mast)
|
1 piece
|
|
Electrical equipment control box(electric mast)
|
1 unit
|
|
Remote-controller(electric mast)
|
2 piece
|
|
Car clamps (when mouted on the car)
|
1 piece
|
|
Top plate( can be customized)
|
1 piece
|
Application
Our cranks masts are in use for
public office
as well as civil purposes like communication,
monitoring,camera,antenna, production,
telecommunication,Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Site Security……etc
How To Pack
Installation Schematic
1) If extended height below 8m, the mast to be fixed with 3 layers nylon guy wires.
2)If the extended height between 8m-15m, the mast to be fixed with 3 layers pulling cord box .
3)If the extended height over 15m, the mast to be fixed with 4 layers pulling cord box.
2)If the extended height between 8m-15m, the mast to be fixed with 3 layers pulling cord box .
3)If the extended height over 15m, the mast to be fixed with 4 layers pulling cord box.
Certifications
Our Service
OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option
One year free after-sale warranty after delivery
Workshop
Catalogue
|
Extended height
(m) |
Closed height
(m) |
Section number
|
Top diameter
(mm) |
Bottom diameter
(mm) |
Loading weight
(kg) |
|
4
|
1.47
|
3
|
30
|
50
|
1-15
|
|
5
|
1.20
|
5
|
30
|
80
|
1-15
|
|
6
|
1.50
|
5
|
30
|
70
|
1-15
|
|
6
|
1.30
|
6
|
50
|
160
|
1-60
|
|
6
|
1.70
|
5
|
60
|
130
|
1-50
|
|
8
|
1.65
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
40
|
105
|
1-30
|
|
10
|
2.10
|
6
|
30
|
80
|
1-10
|
|
10
|
1.95
|
7
|
30
|
90
|
1-15
|
|
10
|
1.95
|
7
|
40
|
105
|
1-30
|
|
10
|
1.95
|
7
|
50
|
130
|
1-60
|
|
12
|
2.10
|
8
|
30
|
105
|
1-15
|
|
12
|
2.10
|
8
|
40
|
130
|
1-30
|
|
15
|
2.40
|
8
|
30
|
105
|
1-15
|
|
15
|
2.40
|
8
|
40
|
130
|
1-30
|
|
18
|
2.45
|
9
|
30
|
130
|
1-10
|
|
18
|
3.00
|
8
|
50
|
150
|
1-30
|
|
20
|
2.90
|
9
|
30
|
130
|
1-10
|
FAQ
Q1: How long is warranty?
A1: 1 year
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
