Name: diesel engine
Brand: Weichai
Original: China
The best diesel engine here in China. It can ensure the power supply of the concrete mixer pump.
- Product Details
- {{item.text}}
Quick Details
-
Productivity:
-
22M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shengmao
-
Weight:
-
8500 kg
-
Dimension(L*W*H):
-
6900mm*2300mm*3150mm
-
hydraulic hose:
-
Italy Manuli
-
Seal:
-
American Parket
-
Eletronic elements:
-
France Schneider
-
PLC:
-
Japan OMRON
-
intermediate relay:
-
Japan OMRON
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
80M
-
Max. horizontal conveying distance:
-
300M
-
Productivity:
-
22M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shengmao
-
Weight:
-
8500 kg
-
Dimension(L*W*H):
-
6900mm*2300mm*3150mm
-
hydraulic hose:
-
Italy Manuli
-
Seal:
-
American Parket
-
Eletronic elements:
-
France Schneider
-
PLC:
-
Japan OMRON
-
intermediate relay:
-
Japan OMRON
Product Description
Product Application

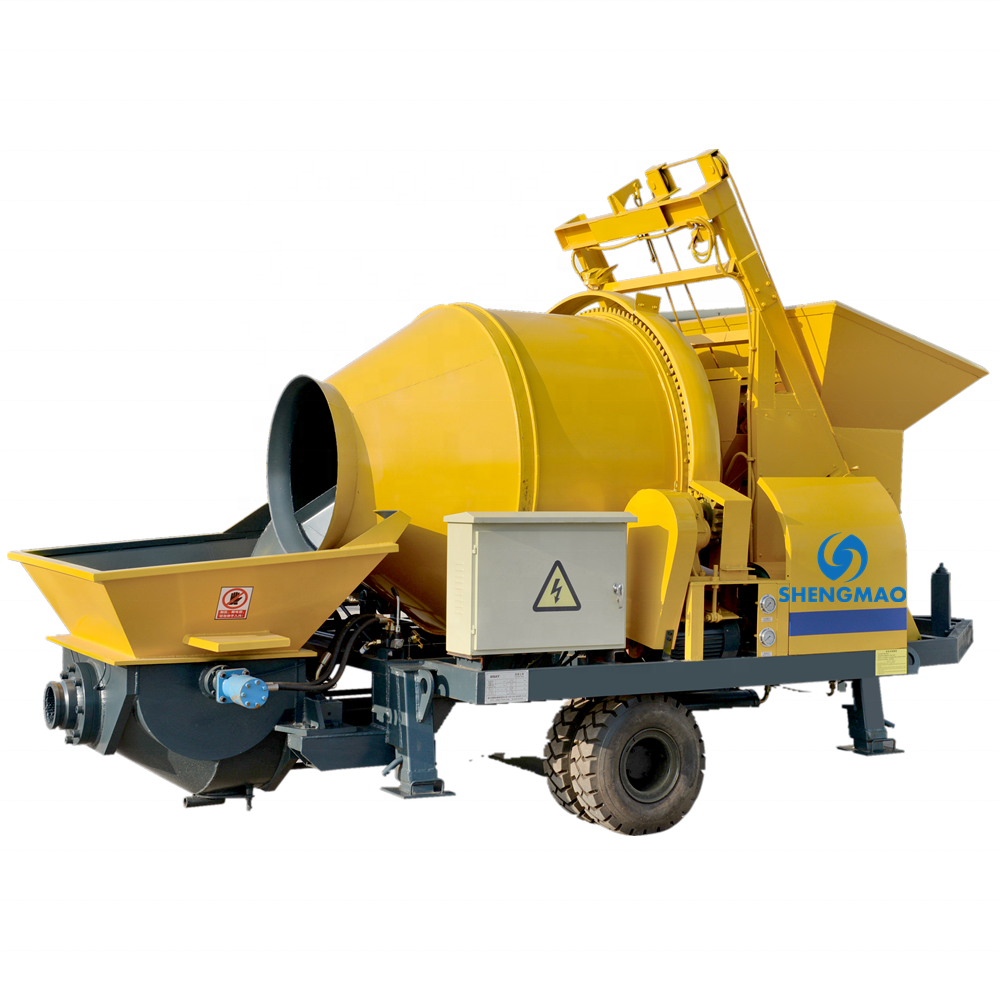

Concrete mixer pump is widely used for the constuction of civil architecture. It is a multi-function machine which can load raw materials (sand, stone, water), mix raw materials and convey concrete to over 100m in height and 300m in length.
Concrete mixer pump is the newest products produced by our company, it is the most suitable for use in four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need the concrete mixer at the scene.
|
Item
|
|
Units
|
JBS40R Concrete MIxer Pump
|
|
|
|
|
|
JBS40-10-82R
|
|
|
Whole performance of machine
|
Pump Max. theoretical. concrete output
|
m3/h
|
40
|
|
|
|
Charging (hopper) capacity of mixer
|
m3
|
0.56
|
|
|
|
Discharging capacity of mixer
|
m3
|
0.35
|
|
|
|
Max. concrete pumping pressure
|
Mpa
|
10
|
|
|
|
Distribution valve type
|
|
S Valve
|
|
|
|
Concrete cylinder diameter stroke
|
mm
|
Ф180×1000
|
|
|
|
Hopper capacity
|
L
|
600L
|
|
|
|
Outlet diameter
|
mm
|
Ф125
|
|
|
Power system
|
Diesel engine model
|
--
|
weichai
|
|
|
|
Electrical engineering power
|
kW
|
82KW
|
|
|
|
Rotate speed
|
r/min
|
2300
|
|
|
Hydraulic system
|
Circuit type
|
|
Open circuit
|
|
|
|
Pumping system pressure
|
MPa
|
31.5
|
|
|
|
Mixing system pressure
|
MPa
|
6
|
|
|
|
Capacity of oil tank
|
L
|
350
|
|
|
The max. Delivery distance (vertical/horizontal)
|
|
m
|
150/600
|
|
|
Other parameters
|
Mixer capacity
|
M3/h
|
10-14m3/h
|
|
|
|
Max. aggregate diameter
|
mm
|
40
|
|
|
|
Inside diameter of delivering pipe
|
mm
|
Ф125
|
|
|
|
Dimensions:length*width*height
|
mm
|
6900x2300x3150
|
|
|
|
Total weight
|
kg
|
8500kg
|
|
|
|
Tire
|
Pcs
|
4
|
|
Main Features
1) Saving cost; one machine has two functions: producing concrete and delivering concrete;
2) Saving labours; one operator is ok;
3) Easy to operate; remote control is available;
4) Reliable performance; If the machine is operated properly, it can work properly more than 5 years;
5) Easy to move; the machine has wheels, we can use a car to tow it to another job site easily.
Detailed Images
Name:
Hydraulic pump
Brand:
FLUTEK Kawasaki
Original:
Korea
Hydraulic pump is one of the most important parts of concrete mixer pump, because it generates hydraulic pressure to deliver concrete to the job site.
Name:
Hydraulic oil pipe
Brand:
Manuli
Original:
Italy
The working hydraulic oil pressure is 10 Mpa, so the hydraulic oil pipes must be very good quality to sustain the very high hydraulic oil pressure.
Name:
PLC
Brand:
OMRON
Original:
Japan
We all know the importance of PLC to a machine. Even all parts of the machine is good, but the PLC quality is poor, the machine can not work well. OMRON PLC is one of the best in the world.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
6900 (L) * 2300 (W) * 3150 (D)
|
|
|
Weight
|
8.5 T
|
|
|
Packaging Details
|
The concrete mixer pump will be delivered in container. It will be fixed inside container by steel wires to prevent it from bumping into container during shipment; Some small parts will be packed with carton box.
|
|
Our projects
Our Service
Pre-Sales Service
* Providing solution for your construction project;
* Providing design drawing as per your requirements;
* Providing professional quotation for your inquiries.
After-Sales Service
* Machine installation and test running;
* Operators trainning and spare parts supply;
* Machine problems solving (by phone or job site visiting).
