Quick Details
-
Power:
-
159kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOMADA
-
Dimension(L*W*H):
-
7300*9500*3800mm
Quick Details
-
Max. Paving Thickness:
-
350mm
-
Weight:
-
24400 kg
-
Engine Brand:
-
Top Brand
-
Power:
-
159kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOMADA
-
Dimension(L*W*H):
-
7300*9500*3800mm
Product Description

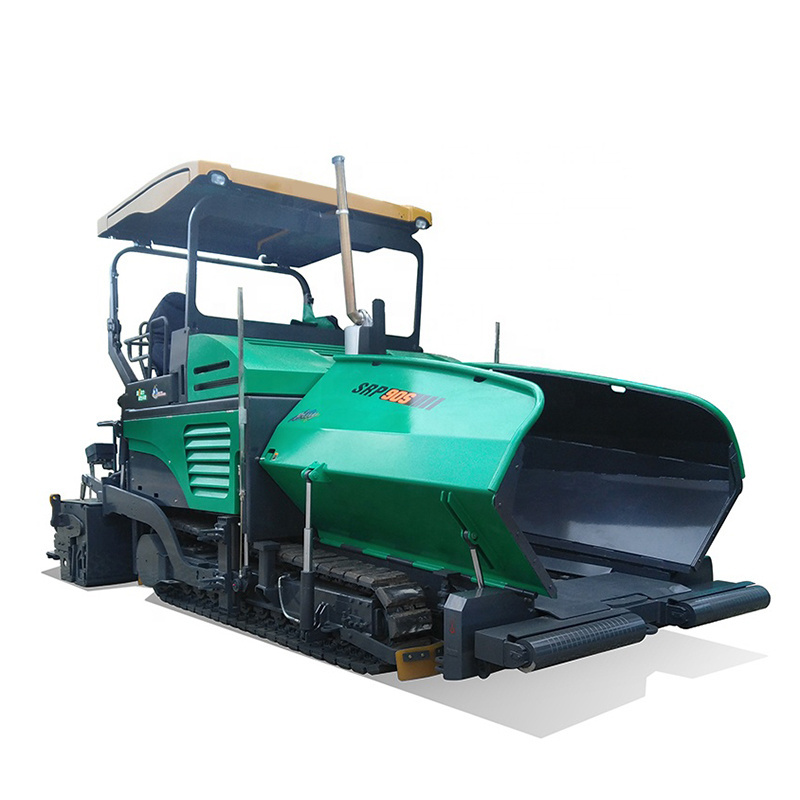

9M Width Asphalt Concrete Slip Roller Road Paver SRP90S PLUS
Multi-functional paver is a professional equipment used in asphalt concrete surface and base stabilized material paving of highway and other types of road. It is driven by hydraulic force and controlled by microcomputer; screed plate adopts double vibrating and eccentric vibratory compaction technology; material level adopts ultrasonic sensing control technology. This makes the paver have advantage of good paving stability, even material separating and feeding, high prepressing density, smooth surface and easy to operate. Therefore the SRP90S PLUS paver is an ideal construction machine for base and surface paving projects and it offers superior paving performance to maximize productivity while providing exceptional reliability.
Product parameters
|
MODEL:
|
SRP90S plus
|
SRP95M plus
|
|
Base Paving Width (m)
|
3-5.7
|
2.5
|
|
Maximum Paving Width (m)
|
9
|
9.5
|
|
Maximum Paving Thickness (mm)
|
350
|
350
|
|
Paving Speed (m/min)
|
0-18
|
0-18
|
|
Travel Speed (km/h)
|
0-2.4
|
0-2.4
|
|
Hopper Capacity (t)
|
15
|
15
|
|
Theoretical Productivity (th)
|
850
|
850
|
|
Camber Adjustment(%)
|
-1 - +3
|
-1 - +3
|
|
Climbing Ability (%)
|
20
|
20
|
|
Vertical Flatness (mm/3m)
|
<2
|
<2
|
|
Horizontal Slope Error (%)
|
±0.02
|
0.02
|
|
Density Distribution Error (%)
|
<5
|
<5
|
|
Heating Method
|
Gas heating
|
Gas heating
|
|
Lubrication Method
|
Centralized Lubrication
|
|
|
Diesel Engine
|
Top Brand
|
Top Brand
|
|
Power 0utput
|
148
|
148/140
|
|
RPM
|
2300
|
2300
|
|
Screed
|
AVS9030D
|
DVM9525Q
|
|
Vibration Speed (r/min)
|
0-1470
|
0-1470
|
|
Vibration Distance (mm)
|
4
|
3 ,5,7.9
|
|
Secondary Vibration Distance (mm)
|
-
|
0,3,6,9,12 .
|
|
Vibration Frequency (Hz)
|
0-50
|
0-50
|
|
Machine Weight (t)
|
24
|
22
|
|
Maximum Operating Weight (t)
|
29
|
30
|
|
External Dimensions LxWxH(mm)
|
7800x9000x3800
|
7300x9500x3800
|
|
Transport Dimensions LxWxH(mm)
|
7800x3000x3360
|
7300x3000x3360
|
