Quick Details
-
Size:
-
1640*1956*2650mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BaingQiang
-
Power:
-
11
-
material:
-
304 stainless steel
-
high-speed:
-
350G dewatering
-
low shake:
-
patent technique
-
stability:
-
LG inverter, bearing
-
Use:
-
washing disinfecting
-
Cleaning Type:
-
automatic and manual
-
Dimension(L*W*H):
-
1640*1956*2650mm
-
Material:
-
all washing material ,such as clothes,linen,sheet
-
Certification:
-
BV ,ISO9001:2008
Quick Details
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Video technical support
-
Weight:
-
3500kg
-
Size:
-
1640*1956*2650mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BaingQiang
-
Power:
-
11
-
material:
-
304 stainless steel
-
high-speed:
-
350G dewatering
-
low shake:
-
patent technique
-
stability:
-
LG inverter, bearing
-
Use:
-
washing disinfecting
-
Cleaning Type:
-
automatic and manual
-
Dimension(L*W*H):
-
1640*1956*2650mm
-
Material:
-
all washing material ,such as clothes,linen,sheet
-
Certification:
-
BV ,ISO9001:2008

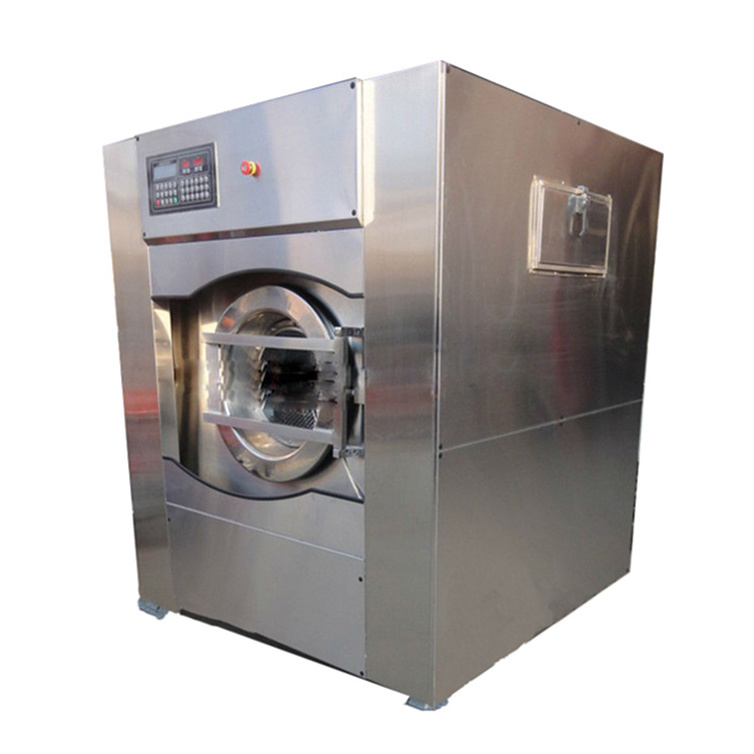

Commercial washer series 80kg industrial washing machine prices industrial cleaning laundry equipment dry cleaner
1.Background: With more than 10 years washing machine developing and manufacturing experience ,our company have successfully develop a new generation machine---high washing extractor.
2.High-dewatering :350G high-dewatering, After dewatering,the rate of water lower than 55%.reduce drying & ironing energy consumption.If use groove type drying machine, the first drying process can be withdrawed.Thus reduce labor intensity and drying time.
3.Low Shake: Adopt patent technique(our patent No.is 201210308696.5) ,even the linen to reduce deviate rate and shake.
4. High Stability:
a: Adopt advanced technology to design the structure,firm and steady . Stainless welding for machine body and base. Strong anti-corrosion Epoxy Resin varnish for inside and outside structure.
b: The inner drum is 3mm mirror stainless steel ,improve the intensity.
c: The important spare parts and pneumatic components use the international top brand.guarantee the stability. Imported LG inverter system, imported TIMKEN bearing
d: 304 stainless steel for outside drum, reduce the iron ion harm to the washing quality.anti-corrosion and long-life.
5. Energy Conservation and Environment Protection:
a : Small water tank,the gap between the inside drum and outside drum is small.reduce the volume,thus save the material and water consumption.
b: After over shaking protection,can execute the dewatering procedure without adding water.thereby reduce the the operation time.
c; If you choose the latest recovery device,(the patent No.is201020192989.8),to recycle water,will reduce 66% water consumption.
6 . Perfect Human-Machine Interface , easy to operate.
a: Big English liquid crystal disply makes washing process visible and willfully option ,the user can observe the inner drum centrifugal factor.
b: Alter the washing speed to change the machine force ,reduce the damage to the linen.
c: Adjust the water level,accoding to the different linen requirement.
d: Full-automatic computer system is simple ,easy,open.
7 .Two He ating Way : Steam heating and Electric heating.
8.Drain :the soft drain-pipe may extend directly to the trench to keep indoor clean.
9.Fed box : Use hot water to flush the washing material , so alkali powder easy to dissolve .no scaling .
10.Safe System :Safety control dehydration function,auto-stop and auto-alarm when the unbalance force is too big.
11.Water Temperature Control : High/Low water level auto-control syatem.the entire computer programmed control and 4 kind of water level manual bottom .
12 . Door Protection : Security door lock and linkage .Refuse to open the door when the machine is working.
Machine Parameter
Model | XGQ-100GJ | XGQ-100G |
Washing Capacity(kg) | 100KG | 100KG |
Inner Drum Dimension(mm) | Φ1200mm*880mm | Φ1200mm*880mm |
Out Drum Dimension(mm) | Φ1268mm*953mm | Φ1268mm*953mm |
Revolution Speed (washing/dewatering) | 27rpm*725rpm | 27rpm*725rpm |
Motor Power(kw) | 11kw | 11kw |
Converter Power | 15kw | 15kw |
Water Pump Power | 1.5kw | |
Steam Consumption Rate(kg/kg) | 0.9kg/kg | 0.9kg/kg |
Water Pipe Diameter(mm) | G1.5" | G1.5" |
Steam Pipe Diameter(mm) | G1" | G1" |
Recycle Water Tank | 650L*3 | |
Dimension(L*W*H mm) | 1640*1956*2650mm | 1640*1956*2000mm |
Total Weight(kg) | 3500kg | 3163kg |
