Wood Pallet Working Sawdust Block Production Line / Sawdust Compress Machine Feet Hot Press / Wood Feet or Log of Wooden Pallet

Wood Pallet Working Sawdust Block Production Line / Sawdust Compress Machine Feet Hot Press / Wood Feet or Log of Wooden Pallet

FOB Reference Price: Get Latest Price

≥1 Sets

US $7980

≥3 Sets

US $7680

≥5 Sets

US $7280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 4800*580*1420mm

Weight:: 1500 KG, 1500kg

Place of Origin:: Henan, China

Voltage:: 380V or customize

Power:: 12-24Kw

Product Type:: Woodworking Machine

Product name:: Wood sawdust block making machine

Model:: Double Head,Four Head,Six head

Raw material:: wood sawdust, wood shaving and glue

Motor Power:: 12-24Kw

Dimension:: 4800*580*1420mm

After-sales Service Provided:: 1 year warranty

Application:: wood pallet feet

Advantage:: PLC Automatic

Quick Details

Machinery Capacity:: 2-8m3/24h

Brand Name:: OEM

Model Number:: CRS-H2, CRS-H4, CRS-H6

Dimension(L*W*H):: 4800*580*1420mm

Weight:: 1500 KG, 1500kg

Place of Origin:: Henan, China

Voltage:: 380V or customize

Power:: 12-24Kw

Product Type:: Woodworking Machine

Product name:: Wood sawdust block making machine

Model:: Double Head,Four Head,Six head

Raw material:: wood sawdust, wood shaving and glue

Motor Power:: 12-24Kw

Dimension:: 4800*580*1420mm

After-sales Service Provided:: 1 year warranty

Application:: wood pallet feet

Advantage:: PLC Automatic

Product Description

Raw Material: Wood Sawdust, wood shavings, wood chips, waste wood, used pallet and so on,
also the glue(Urea formaldehyde resin& UF resin).

Equipment disposition: Generally four hot pressing are a production line, must provide the dryer,the gluing machine,grinder each. (dryer, gluing machine, crusher and so on supporting facilitycustomer buys in addition.

Personnel disposition: Production personnel 4-5 person per shift. And raw material sort (screening), drying, spreads 2-3 people,looked that machine 2 people (a person may look at two machines).

Production cycle: After confirmation order form and payment advanced payment, 40 super craftsmen ship factory delivery. Our factory is responsible for the technical training, and provides the consummation the post-sale service.

Specification

item	value
Condition	New
Brand Name	OEM
Weight	1500KG
Place of Origin	China
	Henan
Automatic Grade	Semi-automatic
Voltage	380V or customize
Machinery Capacity	2-8m3/24h
Key Machines	Press
Product name	Wood sawdust block making machine
Model	Double Head,Four Head,Six head
Raw material	wood sawdust, wood shaving and glue
Usage	Feet or log of wooden pallet
Density	550-600kg/m3
Capacity	2-8m3/24h
Motor Power	12-24Kw
Weight	1500kg
Dimension	48005801420mm
Final product	Different type Wooden pallet block

Machine models

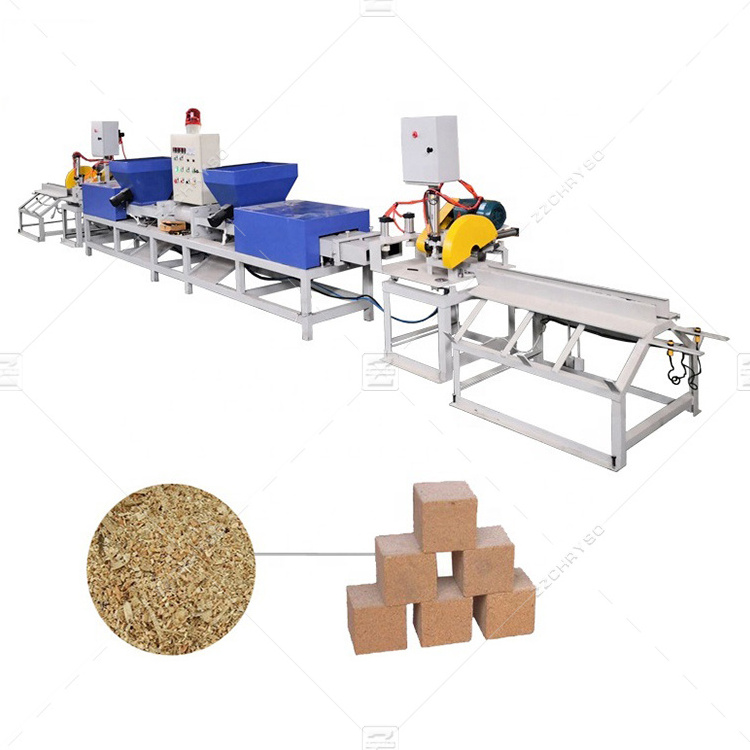

Whole Production Line

Production steps:

1.Crusher or Wood shaving machine

It is used for the raw material with much large size.Please use wood shavings and sawdust to make pallets. If the raw material is not very big, it is unnecessary to crush.
2.Dryer machine
Drying the raw material to keep the 10%-15% moisture.

Airflow dryers and Drum dryers can be selected according to capacity and wood sawdust moisture.

3.Gluing machine.

Mixing the material together tighter for next step.

4.Hot press machine

Main machine of the wood block production line.Three types of models of the hot press machine.

The biggest characteristics will create dust-free workshop after our improved.
