Quick Details
-
Model Number:
-
WY45-30S
-
Frequency:
-
50/60Hz
-
Name:
-
Tubular Motor
-
Usage:
-
Electric Shutter
-
Speed:
-
15/17/19rpm
-
Power:
-
AC180W
-
Color:
-
Depend on your need
-
Protection class:
-
IP44
-
Shape:
-
Tube
-
Characteristic:
-
Green product
-
Certification:
-
CCC, CE
Quick Details
-
AC Voltage:
-
208-230/100-110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WeiYu
-
Model Number:
-
WY45-30S
-
Frequency:
-
50/60Hz
-
Name:
-
Tubular Motor
-
Usage:
-
Electric Shutter
-
Speed:
-
15/17/19rpm
-
Power:
-
AC180W
-
Color:
-
Depend on your need
-
Protection class:
-
IP44
-
Shape:
-
Tube
-
Characteristic:
-
Green product
-
Certification:
-
CCC, CE

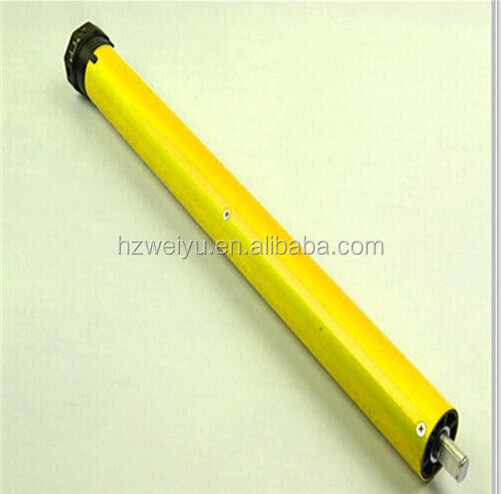

WY45- 30S AC Tubular motor
1.The detail information
|
Model |
WY 45-30S |
WY 45-30S |
|
Rated Torque(N.m) |
30 |
30 |
|
Rated Speed(rpm) |
15/17 |
17/19 |
|
Rated Power(W) |
180 |
180 |
|
Rated Current(A) |
0.8 |
1.2 |
|
Running Time(min) |
>4 |
>4 |
|
Limit Rating(turn) |
30 |
30 |
|
Complete Length(mm) |
570 |
570 |
|
Complete Weight(KG) |
2.1 |
2.1 |
|
Rated Voltage(V) |
220-230 |
100-110 |
|
Rated Frequency(Hz) |
50 |
60 |
|
Tube Diameter(mm) |
45 |
45 |
2.The accessory:
3. The package:
Every one seprate packed in a box; 10 boxes in one carton.
The box dimension: 600*75*75mm
The outer carton dimensions: 660*450*200mm
4. The usage:
it usually can be used for the electric awnings, blinds, roller shutters and so on.
5. The Warranty:
we promise 5 years
!
All of them have passed CE certificate . So you can rest assured the goods quality . the warranty is 5 years . If the tubular motor cannot work normally during the 5 years , we promise we will resend you new ones free of charge .
If there is any question,please let me know…
