Quick Details
-
Brand Name:
-
RC
-
Model Number:
-
RC-GQ01
-
Usage:
-
Pipe Clamp
-
Structure:
-
Saddle Clamp
-
Process:
-
sand casting
-
Size:
-
DN 125
-
DI saddle:
-
DI saddle
-
Type:
-
tee
-
Connection:
-
bolts and nuts
-
Shape:
-
equal
-
Head Code:
-
round
Quick Details
-
Measurement system:
-
Metric
-
Material:
-
Metal
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
RC
-
Model Number:
-
RC-GQ01
-
Usage:
-
Pipe Clamp
-
Structure:
-
Saddle Clamp
-
Process:
-
sand casting
-
Size:
-
DN 125
-
DI saddle:
-
DI saddle
-
Type:
-
tee
-
Connection:
-
bolts and nuts
-
Shape:
-
equal
-
Head Code:
-
round

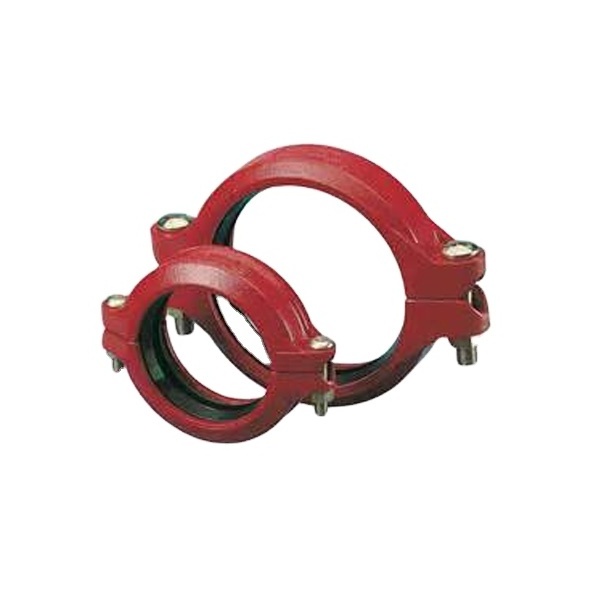

high quality cast iron clamp of pipe clamp with epdm rubber lining
About product:
1) process: sand casting no machining
2) material: GGG40
| C | Si | Mn | P | S | Tensile Strength(n/mm2) | Yield Point(N/mm2) | Hardness(HB) | Elongation(N%) |
| 3.8 | 2.75 | 0.265 | 0.034 | 0.024 | 434 | 260 | 168 | 15.7 |
3) specificaton & dimension: DN 125, 264*245*98mm
4) weight: 4.1KG
5) surface: casting surface no machining, painting is available.
6) tolerance: casting tolerance:0.5mm
machining tolerance:0.05mm
finish machining tolerance:0.005mm
7)used for PVC and PE pipe
8)specification:DN40-DN200
We supply different kinds of saddle clamp, the surface can be painting.
1.The materials of the saddle is ductile iron materials according to GGG40
2. It mainly according to ISO2531,used for ductile iron pipe/PE/PVC pipe.
3.It can used in conjunction with gavanized steel bolts and nuts ,EPDM rubber seal and ductile iron body.
4.It mainly used in water line to connected the pipe to transfer the water.
1.SUPPLIER: DALIAN RUICI INDUSTRY CO.,LTD
|
Company |
manufacturer (more than 20 years' experienced factory) exporter (export from 2005 year) |
|
Main export marker |
• Eastern Europe • Western Europe • North America • Mid East Africa • Central/South America • Asia • Australia long-term cooperated customer:Italy,Germany,Spain,Australia etc. |
|
Company advantage |
• Guarantee/warranty • Product feature • Product performance • Prompt delivery • Quality approval • Service • Small order accepted |
2.ABILITY
|
1 |
material |
Cast iron, grey iron, ductile iron, steel, stainless steel, brass, copper, aluminum, zinc etc |
|
2 |
process |
sand casting, precision casting, investment casting, lost wax casting, die casting, forging, stamping, machining etc |
|
3 |
machine |
lathe, CNC, drilling machine, milling machine, boring machine, planting machine, machining center etc |
|
4 |
tolerance |
casting:0.5mm, machining:0.05mm, finish machining:0.005mm |
|
5 |
capacity |
max diameter:1M, max weight:200KG |
|
6 |
surface treatment |
powder coating, painting, spraying, galvanization |
|
7 |
standard |
JIS, ANSI, DIN, BS, GB |
3. AVAILABLE MACHINING EQUIPMENT
|
EQUIPMENT |
SPECIFICATION |
QUANTITY |
|
Hydraulic valve tesing machine |
|
1 |
|
CNC machine |
CAK6150BJ |
2 |
|
CNC machine |
|
2 |
|
Wire cutting |
|
1 |
|
Universal lift milling machine |
X6132c |
1 |
|
Universal milling machine |
X50 |
1 |
|
Planning machine |
|
1 |
|
Radial drilling machine |
diameter:50mm |
1 |
|
diameter:25mm |
1 |
|
|
diameter:12mm |
4 |
|
|
Multifunction machine |
drilling:16mm, milling groove:12mm |
2 |
|
Lathe |
|
2 |
|
CD6140A |
4 |
|
|
CD6250A |
1 |
|
|
CW6280C |
1 |
|
|
Crane |
3MT |
1 |
|
Forklift |
2T |
1 |
4 . OEM and CUSTOMIZED SERVICE
1).Quality guarantee
• Chemical checking
• NDE after rough machining
• Mechanical testing after heat treatment
• Final NDE,dimension inspected
2).Quality document
• Full Q.A document as per client request
3).Packing and Shipping
• standard export package(carton/wooden case/pallet)
• accept FOB,FAS,CNF,CIF door to door etc or customer designated shipping agent
4).Service
• Drawing: we can translate your original drawing, offer best suggestion on design
• Quality: we have full set quality control system to guarantee the best quality.
• Inspection: inspect in house, all our products must be checked 3 times before packing
5) Inspection
• In-house Foundry
• Third party inspection available upon requirement
6) Our goal
• To be your preferred partner
7) Our values
• Continuously strive to improve
• Enjoy our work
• Treat others the way we wish to be treated with honesty and integrity
• Disciplined people, disciplined thinking, disciplined action
