Quick Details
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
2700-6000K
-
Product Weight（kg）:
-
0.35
-
Input Voltage(V):
-
DC24V/12V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shiji Lighting
-
Model Number:
-
SJ-359
-
Certification:
-
ce&RoHS
-
Diameter:
-
35mm pixel led
-
SMD:
-
5050 RGB LEDs pixel
-
qty of led:
-
6pcs 5050 RGB LEDs pixel
-
IC chip:
-
1903/2811
-
Voltage:
-
24V/ 12V
-
Hole size:
-
35mm
-
Degree:
-
120 degree illuminated
-
body:
-
Clear/Frosted body
-
Product Name:
-
12volt 24 volt 35mm led pixel module light
Quick Details
-
Lamp Luminous Flux(lm):
-
18-20/pixel
-
Lamp Body Material:
-
PVC
-
Application:
-
Warehouse
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
2700-6000K
-
Product Weight（kg）:
-
0.35
-
Input Voltage(V):
-
DC24V/12V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shiji Lighting
-
Model Number:
-
SJ-359
-
Certification:
-
ce&RoHS
-
Diameter:
-
35mm pixel led
-
SMD:
-
5050 RGB LEDs pixel
-
qty of led:
-
6pcs 5050 RGB LEDs pixel
-
IC chip:
-
1903/2811
-
Voltage:
-
24V/ 12V
-
Hole size:
-
35mm
-
Degree:
-
120 degree illuminated
-
body:
-
Clear/Frosted body
-
Product Name:
-
12volt 24 volt 35mm led pixel module light
35mm 14mmamusement e10 cameleon led amusement lights carousel led bulb
1. dc12v/dc24v,1.44w
2. UCS1903/UCS2903IC chip
3. 20pcs/string, 8cm cable spacing and custormized
4. waterproof IP66
5. 35mm hole or 19mm hole pixel led light

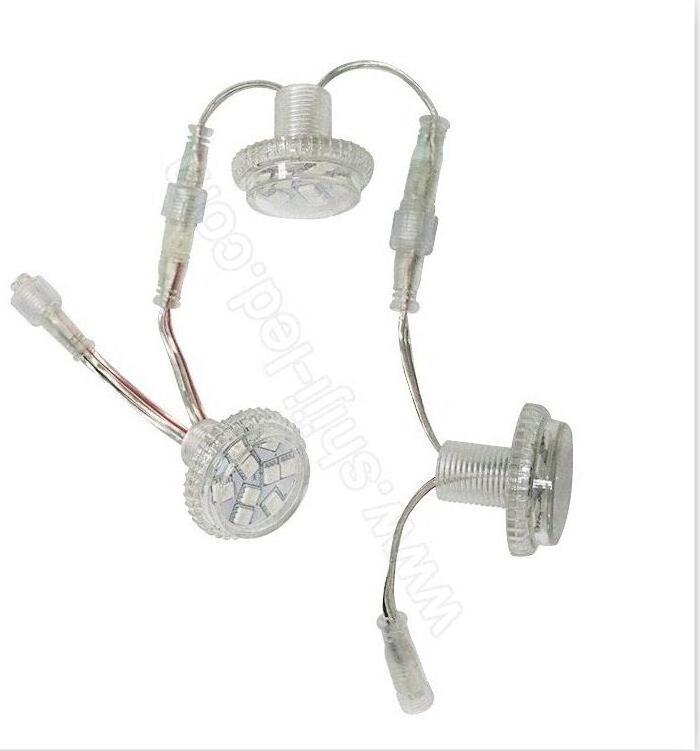

Technical Parameters for 35mm led pixel point light
| Part NO | SJ-359-12V/24V |
| Lighting Source | 9pcs SMD5050 RGB LED |
| Beam Angel | 120 degree |
| Operate Voltage | DC24V/12V |
| Consumption Watt/M | 2.16 Watt (max) |
| Diameter (mm) | 35mm diameter |
| Install hole | 19mm install hole |
| IC chip | UCS1903/2811 full color |
| Cover | Transparent |
| Waterproof Grade | IP66 |
| Lifetime | 50000H |
| Working temperature | -20℃-60℃ |
| Storage temperature | -30℃-80℃ |
SMD5050/SMD3535 led for 35mm led pixel point light
Different shell for 35mm led pixel point light
Product Features for 35mm pixel point light
1. Individually control: 9PCS LED pixel & 1IC (UCS1903).
2. Color and effect: addressable lights you can set to any color, or animate, like running water, chasing and scanning etc.
3. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables.
4. Waterproof IP66, with silicon glue waterproof protection.
5. Easy to install, better drill the hole about 19 - 22mm.
6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
7. Power supply should use a 12V 24V DC power supply to power this pixel, do not use higher than 25V or it will burn the pixel.
8. Connectors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC12V+,DC24V+, GND.
There is 3 Pin JST SM female/male connector and waterproof 3 Pin connector on both end for signal input/output ;
- Controller System
1. SD Controller T400K, T500K, T4000C, K1000C, K8000C; Online Controller; Artnet;Arduino and DMX controller.
2. Software to make program, now we often use LEDEDIT, LED EASY and MADRIX.
3.Contact me for more information.
Normal Controller
- LED Power Supply
Meanwell power supply and chuanglian power supply, waterproof/non-waterproof.
- Connection
1. Signal wire:DC+, DAT, GND.
2. DC+ and GND connect to power supplier; DAT and GND connect to controller.
3. Relative Controller: SPI controller, DMX controller .
4. SPI Signal:LED pixels + LED Power Supply + LED Controller.
5. DMX Control:LED pixels + LED Power Supply + DMX Controller + DMX Decoder.
6. LED Power Supply:meanwell power supply and chuanglian power supply(waterproof/non- waterproof).
The 12volt 24 volt 35mm led pixel module light excellent light and user-friendly design makes LED pixel light perfect for numerous applications.
1.KTV,Disco,Stage
2.Channel letter
3.Advertisements sign
4.Amusement ride,amusement machine
5.LED display screen, painted screen
6.LOGO, advertising billboard,exposed luminous characters
etc...
1.Goods will be delivered within 3-5 working days after the payment received.
2.We ship item via DHL, Fedex,UPS,Door to Door service express or air and sea.
