Quick Details
-
Use:
-
Warehouse Rack,Household, Commercial
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
shibang
-
Model Number:
-
pallet racking
-
Depth:
-
0.6mm
-
Weight Capacity:
-
1350-3000kg/layer
-
Width:
-
100cm
-
Height:
-
350cm
-
Product name:
-

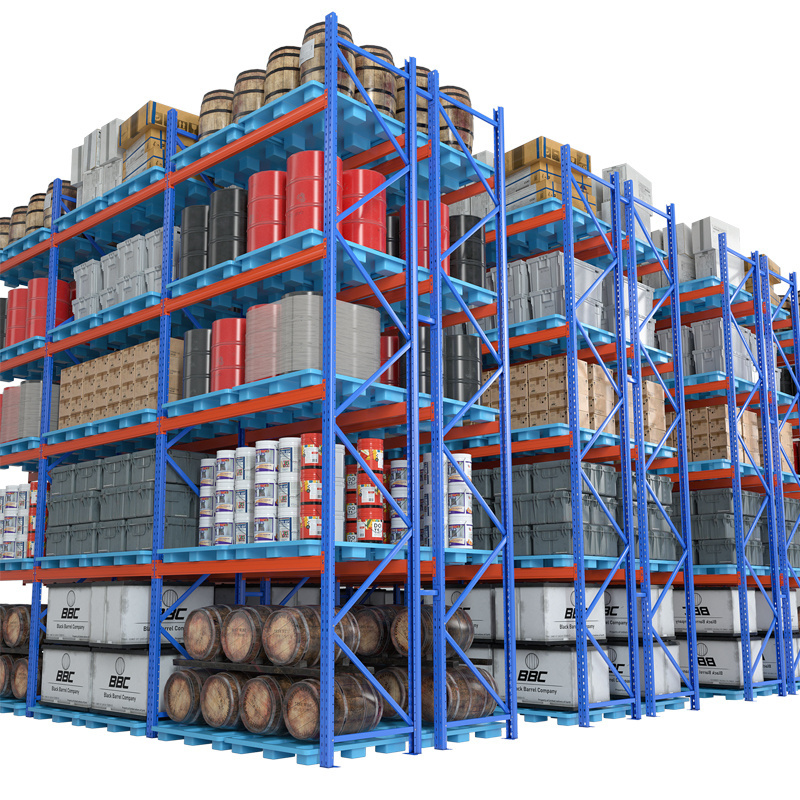

Pallet Racking
-
Color:
-
Custom
-
Usage:
-
Warehouse Rack,Household, Commercial
-
Size:
-
270*100*350cm
-
Layer:
-
Multi-Level
-
Surface treatment:
-
Powder Coating
-
Style:
-
Heavy Duty Selective Shelf
-
Packing:
-
Carton Packing
-
Design:
-
Customized
Quick Details
-
Type:
-
Selective Pallet Rack
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack,Household, Commercial
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
shibang
-
Model Number:
-
pallet racking
-
Depth:
-
0.6mm
-
Weight Capacity:
-
1350-3000kg/layer
-
Width:
-
100cm
-
Height:
-
350cm
-
Product name:
-
Pallet Racking
-
Color:
-
Custom
-
Usage:
-
Warehouse Rack,Household, Commercial
-
Size:
-
270*100*350cm
-
Layer:
-
Multi-Level
-
Surface treatment:
-
Powder Coating
-
Style:
-
Heavy Duty Selective Shelf
-
Packing:
-
Carton Packing
-
Design:
-
Customized
|
Name
|
Inside Diameter（cm）
|
Dead-weight（kg）
|
loading capacity（kg）
|
Remarks（mm）
|
|
Body-frame
|
250*100*350=2 layers
|
97.1
|
1350kg/layer
|
Upright 60*80*2.0 Beam 50*80*1.5
|
|
Sub-frame
|
|
71.6
|
|
|
|
Body-frame
|
250*100*200=1 layer
|
57.2
|
1800kg/layer
|
Upright 60*80*1.5 Beam 50*100*1.5
|
|
Sub-frame
|
|
41.6
|
|
|
|
Body-frame
|
250*100*350=2 layers
|
108
|
|
Upright 60*80*2.0 Beam 50*100*1.5
|
|
Sub-frame
|
|
80
|
|
|
|
Body-frame
|
270*100*350=2 layers
|
118
|
|
Upright 60*80*2.0 Beam 50*120*1.5
|
|
Sub-frame
|
|
89
|
|
|
|
Body-frame
|
300*100*350=2 layers
|
128.2
|
|
|
|
Sub-frame
|
|
97.3
|
|
|
|
Body-frame
|
250*100*350=2 layers
|
117.8
|
2500kg/layer
|
Upright 80*60*2.0 Beam 50*120*1.5
|
|
Sub-frame
|
|
86.9
|
|
|
|
Body-frame
|
270*100*350=2 layers
|
128.1
|
|
Upright 80*60*2.0 Beam 50*140*1.5
|
|
Sub-frame
|
|
97.2
|
|
|
|
Body-frame
|
250*100*350=2 layers
|
130
|
3000kg/layer
|
Upright 90*70*2.0 Beam 50*140*1.5
|
|
Sub-frame
|
|
95.8
|
|
|
|
Body-frame
|
270*100*350=2 layers
|
134.4
|
|
|
|
Sub-frame
|
|
100.2
|
|
|
