Quick Details
-
Weight (KG):
-
7000 KG
-
Product name:
-
die cutting machine
-
Application:
-
cutting paper
-
Cutting area:
-
850*550mm
-
Power:
-
11kw
-
Suitable material:
-
120-600gsm
-
Place of origin:
-
China
-
Automatic grade:
-
automatin
-
Function:
-
Printing Slotting Die Cutting Optional
Quick Details
-
Brand Name:
-
yugong machinery
-
Marketing Type:
-
New Product 2022
-
Type:
-
automatic
-
Weight (KG):
-
7000 KG
-
Product name:
-
die cutting machine
-
Application:
-
cutting paper
-
Cutting area:
-
850*550mm
-
Power:
-
11kw
-
Suitable material:
-
120-600gsm
-
Place of origin:
-
China
-
Automatic grade:
-
automatin
-
Function:
-
Printing Slotting Die Cutting Optional
Product Introduction:

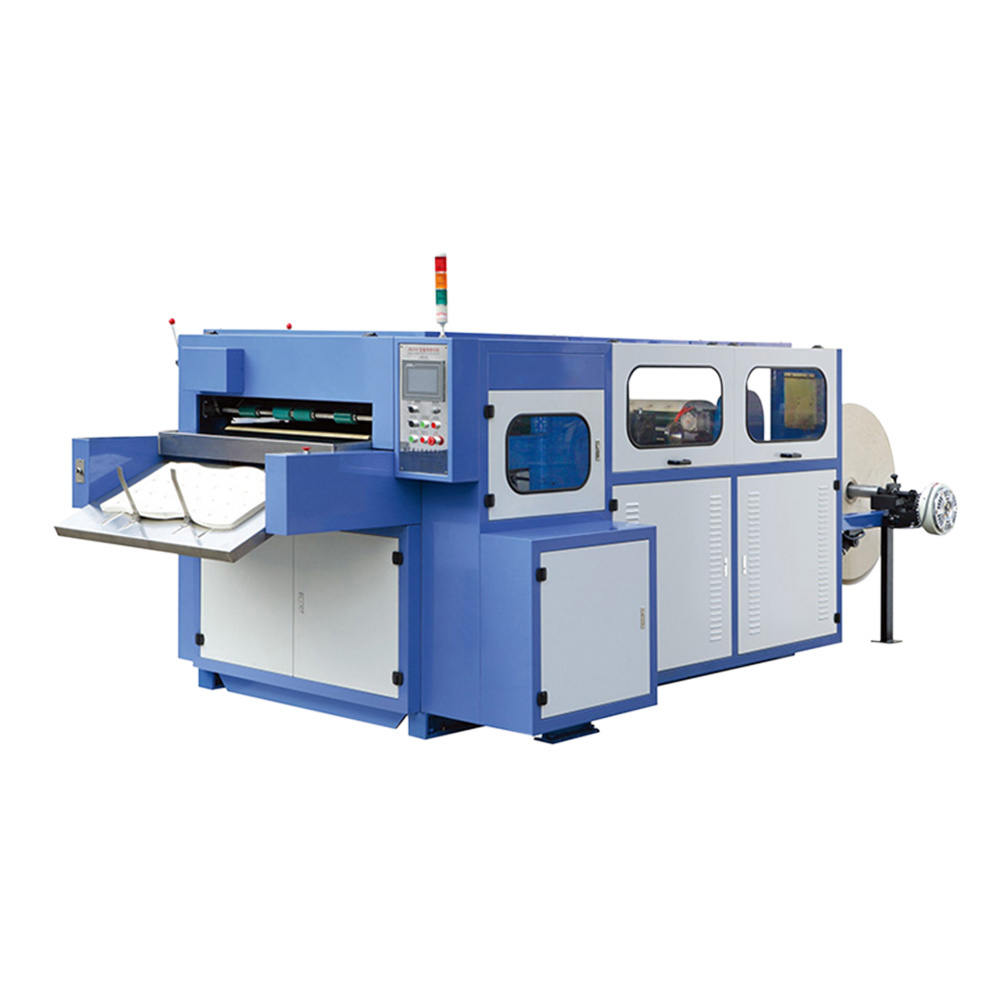

High speed automatic reel paper die cutting machine machine is the professional equipment which uses for cutting various kind of popular paper and PE coated paper, be applicable to printing, packaging,paper cup and other to be the die cutting area,cuttinglength can be adjusted in touch screen, it is convenient and precise. To be controlled by serve motor, and it can die cut the blank paper and printed paper. Clutch is pneumatic clutch,be fast and reliable,it adopts flap method to stack cutted paper,it is in order, regular,safty and fast.
| Punching Machine | |
| Model | YG-CQ850 |
| Punching speed | 150-200 times/min |
| Feed width | 860mm |
| Unwinding diameter | 1400mm |
| Die cutting width | 400*850mm |
| Precise positioning | ±0.15mm |
| Stacking length | 400mm |
| Air pressure | 0.6mp |
| Voltage | 380V |
| Total power | 8.5kw |
| Weight | 3500kg |
| Dimensions | 3500*1600*2000mm |
| Die cutting machine | |
| Model | YG-MR-850 |
| Die Cutting Precision | ± 0.10mm |
| Speed | 100-160times/min |
| Cutting area | 850*550mm |
| Suitable material | 120-600gsm |
| Pressure | 280Mpa |
| Power | 11kw |
| Weight | 7000kg |
| Air source | 0.7Mpa, 1.5m³/min |
| Dimension | 4000(L)*2000(W)*1850(H)mm |
