For the red part, which can make machine looks more beauty.
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fantai
-
Voltage:
-
380v 50Hz
-
Dimension(L*W*H):
-
5.8*1.3*1.5m
-
Weight:
-
4000 kg
-
Raw material:
-
PPGI PPGL GI GL
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
High Grade No.45 Forged
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
Computer Control
-
Machine type:
-
Aluminum Roofing Sheet Making Machine
-
Decoiler:
-
5T Manual Decoiler
-
Color:
-
Client's Request
-
Operate language:
-
English
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze
-
Production Capacity:
-
2-45m
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fantai
-
Voltage:
-
380v 50Hz
-
Dimension(L*W*H):
-
5.8*1.3*1.5m
-
Weight:
-
4000 kg
-
Raw material:
-
PPGI PPGL GI GL
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
High Grade No.45 Forged
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
Computer Control
-
Machine type:
-
Aluminum Roofing Sheet Making Machine
-
Decoiler:
-
5T Manual Decoiler
-
Color:
-
Client's Request
-
Operate language:
-
English
Products Description
0.3-0.8 Color Painted Sheets Tile Making Machine
Tile making machine is used in building constructions, which can using in roof and wall of
Housing Construction ,Villa ,
Factory, Warehouse, Theater, Hangar, Gymnasium, Exhibition hall.
Workflow: (send blank) uncoiling - guide feeding - roll forming - cut to length - finished product out of the board
Manually fix the workpiece, manually roll it up, enter the PLC operation page - press the "start" button - the plate will automatically enter - start to follow the set program - cut off automatically after reaching the set size, the automatic Platen forming is completed.
Details parameters of tile making machine :
PRODUCT SPECIFICATIONS
|
Part details
|
Item Name
|
Specification
|
|
Material
|
Raw material
|
PPGI
|
|
|
Thickness
|
0.3-0.8 mm
|
|
Machine
|
Roller station
|
Depend on customer' drawing
|
|
|
Shaft diameter
|
70 mm
|
|
|
Shaft material
|
45# steel with 0.05mm chrome
|
|
|
Roller material hardness 30-40 HRC
|
45# steel with 0.05mm chrome
|
|
|
Machine size
|
About 6×1.5×1.3 m
|
|
|
Machine weight
|
About 5.5 ton
|
|
|
Machine color
|
As customer' request
|
|
|
Working speed
|
3-8 m/min
|
|
Cutter
|
Hardness
|
50-65 HRC
|
|
|
Cutting tolerance
|
± 1 mm
|
|
|
Material
|
Cr 12
|
|
|
Operate
|
Hydraulic cutting
|
|
Power
|
Driving way
|
Chain 1 inch
|
|
|
Main power
|
5.5 kw
|
|
|
Pump power
|
7.5 kw
|
|
|
Voltage
|
380v/50HZ,3P or customize
as customer' request |
|
Control system
|
PLC brand
|
Delta made in Twaiwan
|
|
|
Screen
|
Touchable screen
|
|
|
Language
|
Chinese and English or add language as customer need
|
|
Decoiler
|
Operation
|
Manual
|
|
|
Weight capicatity
|
5 ton
|
|
|
Price
|
Free as gift
|
|
Receiving table
|
Operation
|
Manual
|
|
|
Length
|
3 m
|
|
|
Price
|
Free as gift
|
Layout of Machine
Details Images

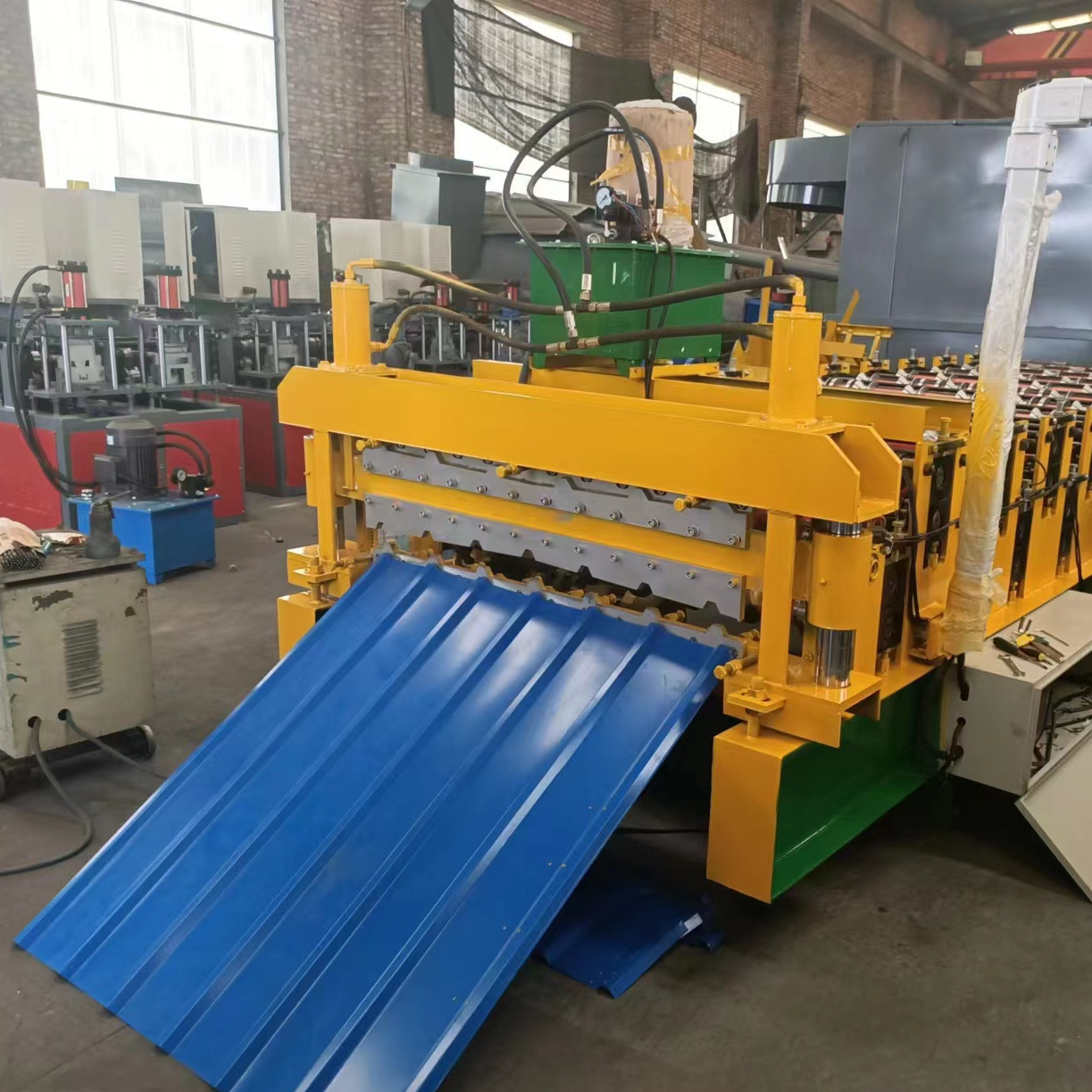

Whole machine body of tile making machine
For the machine color, we all can customized as your prefer color.
Counter of tile making machine
Each machine has a counter, which can accurately calculate how many sheets, which is convenient to use.
Brand PLC control of tile making machine
The tile making machine is with PLC control ,which will be more convenient for you using, and easy to operate.
The PLC is using English and Chinese. If you have other demands, such as Poland, Spanish, Russia, we also can customized for you.
Large pump of tile making machine
It can ensure the machine could using more powerful.
SALES AND SERVICE NETWORK
Other design for common using
Certifications
Company
Henan Fantai Machinery Co., Ltd.
is a manufacturer of automatic production lines for color steel tile forming equipment. For many years, it has been engaged in the production of roof panels and wall panel color steel tile equipment for steel structures. With production equipment and development and design engineers, its products include the original roof panel and wall panel color steel tile equipment. So far, dozens of series of color steel tile equipment production lines have been developed to meet the needs of major customers. Our product series include: sandwich composite panel production line, C/Z steel machine, glazed tile forming machine, roof panel forming machine, wall panel forming machine, double-layer forming machine, corner forming machine, windproof and dust suppression net forming machine, high-speed Guardrail forming machine, floor deck forming machine, several-shaped steel forming machine, W-shaped steel belt forming machine, carriage plate forming machine, roof tile forming machine, advertising decorative gusset forming machine, rolling door forming machine, bottom plate forming machine, bending and shearing board Strip forming machine, eaves panel forming machine, arching forming machine, supporting auxiliary equipment, agricultural greenhouse equipment, environmental protection dust removal and purification equipment, etc.
