Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kiwex
-
Weight:
-
100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
single wall corrugated pipe production line
-
Materials:
-
PVC/HDPE
-
Color:
-
as clients' requirements
-
Diameter:
-
4.5-9/9-32/16-50mm
-
Capacity:
-
10/40/80kg/h
-
Small size:
-
4-6.7mm used in car
-
Automatic Grade:
-
Automatic
-
Marketing Type:
-
New Product 2020
Quick Details
-
Screw Design:
-
single/double screw extruder
-
Screw L/D Ratio:
-
30:1
-
Screw Speed (rpm):
-
90 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kiwex
-
Weight:
-
100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
single wall corrugated pipe production line
-
Materials:
-
PVC/HDPE
-
Color:
-
as clients' requirements
-
Diameter:
-
4.5-9/9-32/16-50mm
-
Capacity:
-
10/40/80kg/h
-
Small size:
-
4-6.7mm used in car
-
Automatic Grade:
-
Automatic
-
Marketing Type:
-
New Product 2020
PHdpe water pipe production line 4.5-9/9-32/16-50mm single wall corrugated tube drip irrigation hose extruder
Main technique parameter
|
Pipe diamter range(mm) |
4.5-9 |
9-32 |
16-50 |
|
Main machine model |
SJ-30 |
SJ-45 |
SJ-65 |
|
Main machine L/D |
30:1 |
28:1 |
30:1 |
|
Production capacity(kg/h) |
10 |
40 |
80 |
|
Main motor(kw) |
4 |
11 |
18.5 |
|
Molding machine motor(kw) |
1.1 |
1.5 |
1.5 |
|
Pair of mouldes |
42 |
38 |
38 |
|
Cooling mode |
Water cooling and fan cooling |
||
|
Production speed(m/min) |
6-10 |
8-12 |
8-15 |
|
Metering mode |
Inducting mode |
||
|

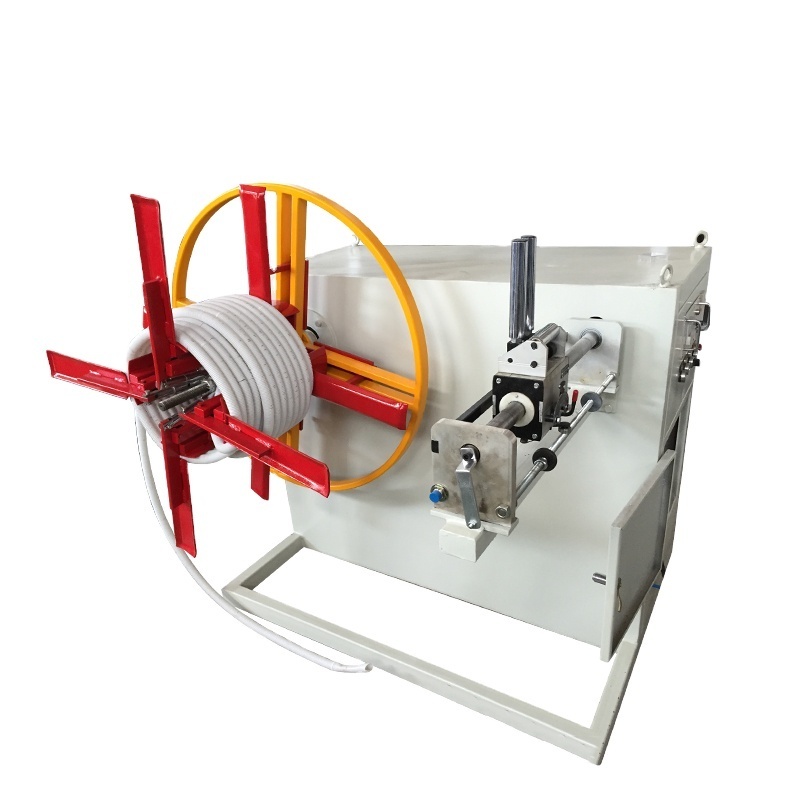

Coiling machine mode |
Motor-driven manually-opera |
||
| BW-IV series | BW-IV A series | |
| Power | 11KW | 15KW |
| Mould speciacation | Ø200mm-Ø400mm | Ø300mm-Ø600mm |
| Mould material | Special aluminum alloy | Special aluminum alloy |
| Mould perimeter | 7m | 7m |
| Mould cooling way | Air cooling | Air cooling |
| Production speed | 0.5m-2m/min | 0.5m-2m/min |
| Production material | PVC/HDPE | PVC/HDPE |
| Main machine | Twin-screw extruder/single screw extruder | Conical Twin-screw extruder/single screw extruder |
Q1: Are you a factory or trading company?
A:We are the manufacturer and we have 15 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
Q2: How long is the delivery time?
A:For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 25 to 35 working days .
Q3: How should I pay for my order ? what is the procession of this purchase?
A:You can do 30% prepayment at first, then we will start to make production. When the machines are ready , we will take pictures and videos to you, and then you can do the balance . A fter we got your payment. We will send the machine to you.
Q4: How is the machine warranty and after-sale service ?
A: All our machine would have a warranty of 12 months since the date of machine installation in client's factory. And beyond warranty period, we can offer s pare parts or repa ir service with or without charges
