Quick Details
-
Place of Origin:
-
Tianjin, China
-
Certification:
-
CE FCC ROHS
-
Read Distance:
-
30-230mm
-
Scan Card Support:
-
ISO14443A/B, Support ID physical ID
-
Scan Code Feedback:
-
Buzzer; The light indicates code scanning
-
Interface:
-
Wiegand,RS232,RS485
-
Voltage:
-
DC 9-12V
-
Size:
-
114mm*76mm*16mm
-
Weight:
-
about 190g
-
Working current:
-
≤100mA
-
Color:
-
white/black
Quick Details
-
Type:
-
Business Card Scanner
-
Scan Element Type:
-
CMOS
-
Brand Name:
-
WCMI
-
Place of Origin:
-
Tianjin, China
-
Certification:
-
CE FCC ROHS
-
Read Distance:
-
30-230mm
-
Scan Card Support:
-
ISO14443A/B, Support ID physical ID
-
Scan Code Feedback:
-
Buzzer; The light indicates code scanning
-
Interface:
-
Wiegand,RS232,RS485
-
Voltage:
-
DC 9-12V
-
Size:
-
114mm*76mm*16mm
-
Weight:
-
about 190g
-
Working current:
-
≤100mA
-
Color:
-
white/black
Product Description
Specification
|
Product Prameters
|
|
|
||
|
General
|

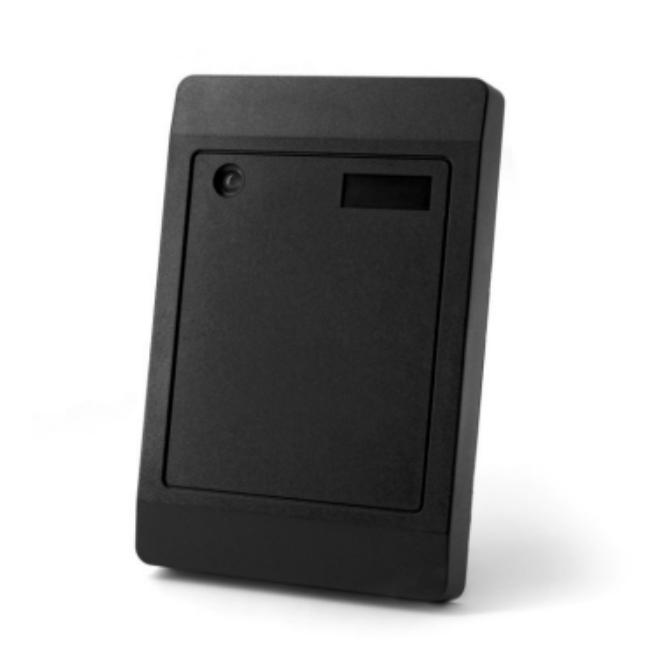

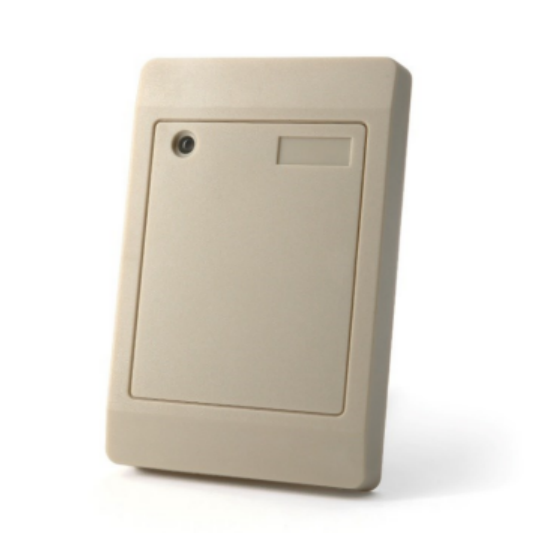

Type
|
Card reader
|
||
|
|
Product model
|
AD1
|
||
|
|
Brand Name
|
WCMI
|
||
|
|
Products Status
|
Stock
|
||
|
|
Place of Origin
|
Tianjin,China
|
||
|
|
Private Model
|
Yes
|
||
|
|
Warranty
|
15 Months
|
||
|
|
After-sales Service
|
Return and Replacement; Free spare parts
|
||
|
|
Certification
|
RoHS、FCC、CE
|
||
|
|
Color
|
Black/White
|
||
|
|
Language Supported
|
English/Customized
|
||
|
|
Scan Element Type
|
CMOS
|
||
|
Scan Code Performance
|
Image (Pixels) Sensor
|
640 X 480 CMOS @ 30fps
|
||
|
|
View Angle
|
Horizontal 63°, Vertical 51°
|
||
|
|
Working voltage
|
DC9~12V
|
||
|
|
|
|
||
|
|
Read Distance
|
30-230mm
|
||
|
|
Scan Angle
|
Rotation: 360°, Pitch±60°, Deflection±50°
|
||
|
|
Scan Mode
|
Active/Passive, Support induction mode
|
||
|
|
Precisions
|
1d ≥5mil / 2d ≥10mil
|
||
|
|
Symbol Contrast
|
≥25%
|
||
|
|
Scan Card Support
|
ISO14443A/B, Support ID physical ID
|
||
|
|
Scan Code Feedback
|
Buzzer; The light indicates code scanning
|
||
|
Physical Parameters |
Weight
|
190
|
||
|
|
Dimensions
|
114mm×76mm×16mm
|
||
|
|
Interface
|
Wiegand，RS232，RS485
|
||
|
|
Prompt Mode
|
LED prompt and buzzer
|
||
|
|
Voltage
|
DC9~12V
|
||
|
|
Current
|
≤100mA
|
||
|
Environmental Parameter
|
Operating temperature
|
-20℃ ~ 60℃
|
||
|
|
Storage Temperature
|
-40℃ ~ 80℃
|
||
|
|
Operating Humidity
|
5%RH~95%RH (Non-condensing)
|
||
|
|
Environmental light
|
0-80000Lux
|
||
|
|
Electrostatic Protection
|
Contact discharge ±6KV, Air discharge ±12KV
|
||
|
|
|
|
||
|
|
Material
|
Plastic
|
||
