Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xin Qunli
-
Power (kW):
-
1.74
-
Weight (KG):
-
1300 KG
-
Applicable Industries:
-
sofa, mattress
-
Model:
-
ESF011A-4
-
Inner worktable size:
-
1720*2290mm
-
Outer worktable size:
-
2000*2290mm
-
Cutting height:
-
1200mm
-
Motor power:
-
1.74kw
-
Cutter band length:
-
8900mm
Quick Details
-
Max.Product Size(L)(mm):
-
3750 mm
-
Max.Product Size(W)(mm):
-
2400 mm
-
Max.Product Size(H)(mm):
-
4000 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xin Qunli
-
Power (kW):
-
1.74
-
Weight (KG):
-
1300 KG
-
Applicable Industries:
-
sofa, mattress
-
Model:
-
ESF011A-4
-
Inner worktable size:
-
1720*2290mm
-
Outer worktable size:
-
2000*2290mm
-
Cutting height:
-
1200mm
-
Motor power:
-
1.74kw
-
Cutter band length:
-
8900mm
Product Types
XINQUNLIN MACHINERY Co., Ltd
PIONEER OF THE SOFA & SOFT BED MAKING MACHINERY INDUSTRY
Automatic Woodworking Machinery
Sponge/Foam Cutting Machinery
Fiber Opening &Filling Machinery
Product Details
Product Components
A. Cutter Frame
----------- fix the cutting knife and control its movement direction and depth .
----------- fix the cutting knife and control its movement direction and depth .
B.
Cutting Blade Belt
----------- cutting foam/sponge or other soft materials, it's wear-resistant, tensile resistant, and slip resistant.
----------- cutting foam/sponge or other soft materials, it's wear-resistant, tensile resistant, and slip resistant.
C.
Calibration Plate
-----------c heck and calibrate the position and angle of the cutting tool .
-----------c heck and calibrate the position and angle of the cutting tool .
D.
Cutting Worktable
----------- support and fix the foam/sponge material to be processed .
----------- support and fix the foam/sponge material to be processed .
E.
Rail
-----------u sed for left and right movement of the workbench .
-----------u sed for left and right movement of the workbench .
F
.
Switch Button
-----------
control the start and stop of machinery
.
G. Positioning Wheel
----------- adjusting and fixing the cutting position.
----------- adjusting and fixing the cutting position.
H.
Grinding
System
-----------g rind and maintain cutting tools to ensure good cutting effect and lifespan .
-----------g rind and maintain cutting tools to ensure good cutting effect and lifespan .
Product Usage
●

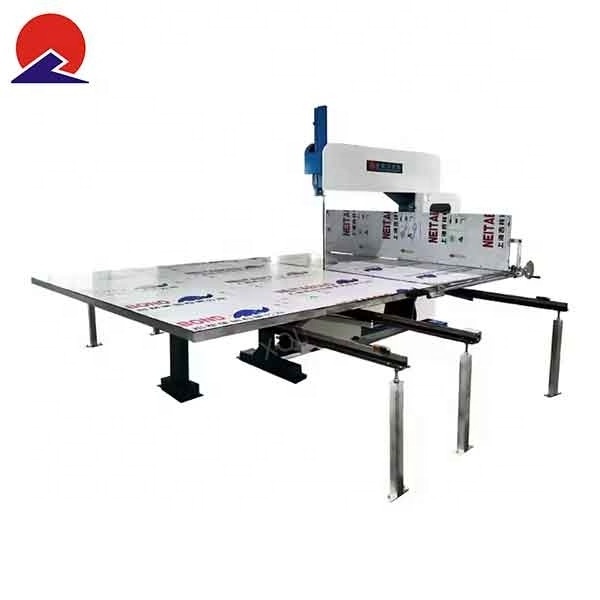

This machine is mostly used for foam rubber’s upright slicing and mould slicing work
.
●
This machine may synchronously manufacture all kinds of EVA and pearl rubber sections.
Parameter
|
Machine Name
|
Foam upright cutting machine
|
STYR-ZS4/5
|
|
|
Model Number
|
ESF011A-4
|
single spring buckle with 4 claws
|
|
|
Outer Worktable Size
|
2000x2290mm
|
0-3.5rpm/min
|
|
|
Inner Worktable Size
|
1720x2290mm
|
5(pcs)x2000x3000x1200mm
|
|
|
Cutting Height
|
1200mm
|
3-150mm
|
|
|
Cutter Band Length
|
8900mm
|
8.92KW
|
|
|
Motor Power
|
1.74KW
|
7500x7000x2550mm
|
|
|
We have 4 kinds of Foam upright cutting machine in standard, if you need customize, welcome to inquire!
|
|
|
|
|
|
|||||
|
Model NO.
|
Inner Worktable Size
|
Outer Worktable Size
|
Cutting Height
|
Cutter band length
|
Motor Power
|
|||||
|
ESF011A-1
|
500x1000mm
|
1000x1000mm
|
600mm
|
4620mm
|
1.74Kw
|
|||||
|
ESF011A-3
|
1200x2400mm
|
1500x2400mm
|
680mm
|
6640mm
|
1.74Kw
|
|||||
|
ESF011A-4
|
1720x2290mm
|
2000x2290mm
|
1200mm
|
8900mm
|
1.74Kw
|
|||||
|
ESF011A-5
|
1200x2400mm
|
2000x2400mm
|
680mm
|
6640mm
|
1.74Kw
|
|||||
Application
Sofa & Mattress & Cushions
Sound insulation materials & Medical sponge pad & Yoga Mat
