5 kw 7.5kw small co2 air compressor for 380v 220v 416v used in labroary

5 kw 7.5kw small co2 air compressor for 380v 220v 416v used in labroary

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

≥2 Sets

US $9800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V/415V(customizable)

Dimension(L*W*H):: Customized

Weight:: Customized

Working Pressure:: 0.1-7.8mpa

Marketing Type:: Standardized Product

Gas Type:: nitrogen or air

Compressor types:: vertical or balanced

cooling way:: water/air

Lubricating:: Oil-free

Connecting ways:: direct or belt

technology:: reciprocating

Quick Details

Place of Origin:: Henan, China

Brand Name:: YJ

Model Number:: W Z L D M

Voltage:: 220V/380V/415V(customizable)

Dimension(L*W*H):: Customized

Weight:: Customized

Working Pressure:: 0.1-7.8mpa

Marketing Type:: Standardized Product

Gas Type:: nitrogen or air

Compressor types:: vertical or balanced

cooling way:: water/air

Lubricating:: Oil-free

Connecting ways:: direct or belt

technology:: reciprocating

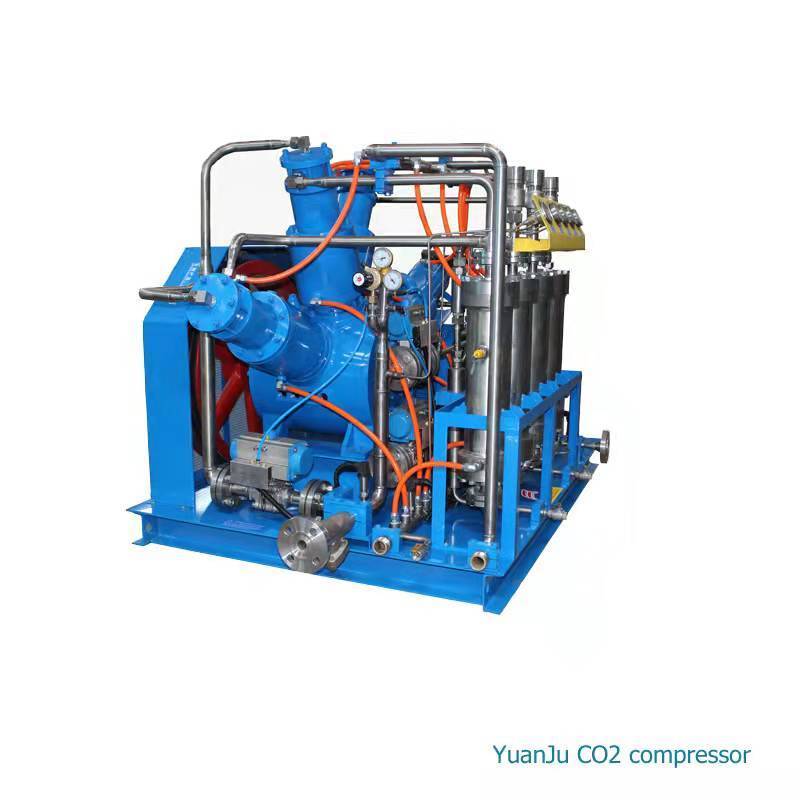

Yuanju CO2 Compressor

Thanks to decades years of the rapid industry development in china ,the reciprocating technology is

propelled and our clients can benefit from the competitive price, and diverse range of standardized

compressor , highly quality compressed process gas is achieved including ,but not limited to :air
,oxygen ,nitrogen ,natural gas ,mixed gas.

Special design for co2 compressor
Dew to Large molecular weight of co2 and along with the relative humidity ,Special design for co2 compressor

is a must to ensure the reliable operation, low maintenance cost,highly economic efficiency and low downtime.
- Low piston linear velocity
-CO2 piping, coolers and separators in stainless steel
-inlet and outlet buffer vessels for each stage

Compressor Technical Parameters

Standardized compressor structure portfolio

Benefits
* Pre-assembled package only to be connected with water pipe,gas pipe and wire on the site
* More than 14 models with standard sizes are available for countless variation
*Easy installation and maintenance
*Maximize the reliability ,efficiency and quality
*Connect modular structure portfolio with the suitable component

Technical parameter of co2 compressor
Minimum Inlet pressure:	micro-postive
outlet pressure:	0.1 ~ 7.8 MPa
capacity:	0.1 ~ 200m3 / min ;
power:	5.5kw-2000kw
piston force:	1.5 ~ 50T
compression stage:	2-6

Manufacturing Technique

^{Fully compliance with various standards}

^{All yuanju compressor are ce marked to meet} clients

request , be designed according to Machine Directive ,

PED and ATEX requirements and in compliance with

the API 618 or API 617 standard.Vessels can be made

_{base on ASME standards.}

Flexible compressor solution
put together an optimal compressor , from our

wide range of modular portfolio. combine the basic

structure of running gear with suitable size of

cylinder and piston stroke .

High durable proven design

Rigid piston rod and piston
--Piston ring and guide ring are made of composite

PTFE or peek for long life.
--Piston are made of composite aluminum,stainless

steel or other materials according to the process.
--Piston rod in stainless steel or nitriding steel

(38CrMoAIA, 3Cr13,40Cr) according to the gas

the discharge pressure.

Durable cylinder

--Cooled by forced water circulation to minimize

temperature,increasing efficiency and reliability

-- Generally discharge valves on the bottom

in accor dance with API 618

--Material of cylinder is wear -resistant cast iron

or stainless steel ,base on the media gas

and discharge pressure

Efficient valve
-Stainless steel plate type valve or other types.
-Customized discs (peek or stainless steel ) for different applications
-Design of wide channel and low speed ensure minimum pressure loss and extend service life.

Rugged crankcase
--- Crankcase in high strength cast iron or forged steel ensure

the highly rigidity, wear resistance and fatigue strength
--Designfor long service life.
-- Forced lubrication is carried out by a crank mounted oil

pump or motor

Spare parts and maintenance

Low maintenance cost and safety
--Low piston speed and low revolution speed ensure

long component life

--Excellent cooling of cylinder and inter-stage coolers

for low gas temperature.

--High efficiency motor used to increase reliability

and reduce maintenance cost and less down time
--Vertical or horizontal design for reducing forces and torques.

Excellent after sales service

-- We provide a complete service from the first

customer contact, designing,manufacturing to

installation and commissioning, as well as the

excellent after sales support.

-- Engineer service

--Training

--Field service and parts on stock.

Application

Application

Fertilizer plant
Iron and steel
Cement
Petrochemical plant
lime kiln tail gas recovery
Liquefaction plant
Hydrogen production
Oil & gas
Ethylene oxide production
Beverage
Beer
