Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Free spare parts
-
Product name:
-
IQF Tunnel Quick Freezer
-
Application:
-
Frozen Food
-
Capacity:
-
Clients' Requirements
-
Material:
-
Stainless Steel
-
Function:
-
Individual Quick Freezing
Quick Details
-
Voltage:
-
380V, can be customized
-
Power:
-
according to customization
-
Cooling Capacity:
-
500~2000kg, can be customized
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Free spare parts
-
Product name:
-
IQF Tunnel Quick Freezer
-
Application:
-
Frozen Food
-
Capacity:
-
Clients' Requirements
-
Material:
-
Stainless Steel
-
Function:
-
Individual Quick Freezing

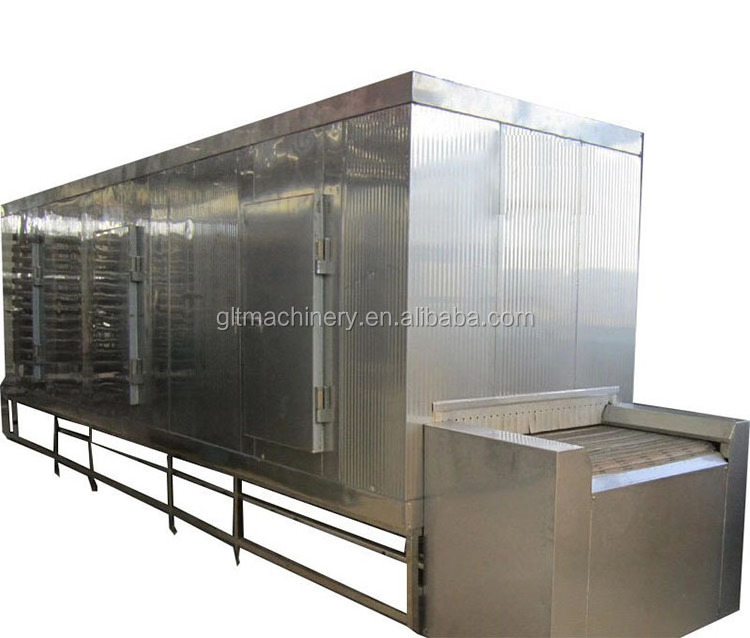

Food meat strawberry tunnel quick freezing machine
Tunnel freezers have been used in large scale production lines for decades. The base design of the air based tunnel freezer has stayed, for the most part, un-changed. With the main concept of it still being inputting the product in one side and extracting the frozen product at the end. This process allows business to continue freezing for a long period of time with the use of overall less labor in the process compared to regular batch style freezers.
| Model | GRT-SDJ-500 | GRT-SDJ-1000 | GRT-SDJ-1500 | GRT-SDJ-2000 |
| Capacity(kg/h) | 500 | 1000 | 1500 | 2000 |
| Freezing time(min) | 9~60 | |||
| Feeding temperature (degrees Celsius) | 15 | |||
| Discharge temperature ( degrees Celsius) | -18 | |||
| Freezing temperature ( degrees Celsius) | -35~40 | |||
| Refrigerant | R717, R22 | |||
| Cold consumption(kw) | 95 | 185 | 265 | 345 |
| Mesh belt width(mm) | 1000 | 1200 | 1500 | 1500 |
| Dimension(m) | 8.0*3.5*3.0 | 11.0*4.0*3.0 | 15.0*4.0*3.0 | 18.5*4.4*3.0 |
Please note:
This machine is customized according to client's requirements. Above info is just for reference.
Pre-sales Service
-Inquiry and consulting support within 24 hours.
-Sample testing support, testing video guildance.
-View our Factory.
After-sales Service
-Training how to instal the machine, training how to use the machine.
-One year warranty for repairing replaceing and returning.
-Engineers available to service machinery overseas.
