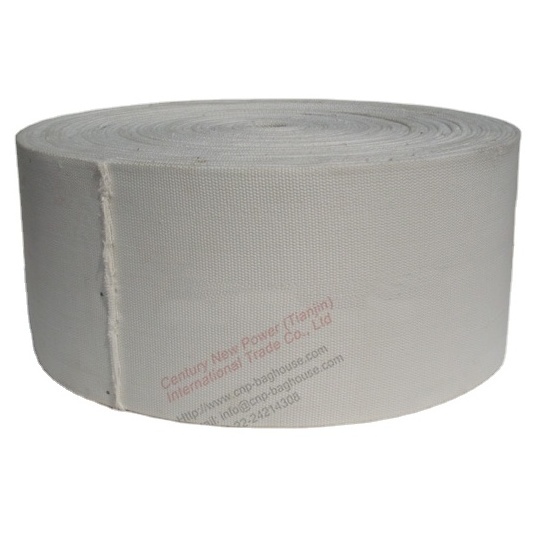

Silo dome storage fluidised floor open cloth Air slide fabric

INTRODUCTION

We provide Airslide belt for conveying bulk material by air gravity. The main use of Airslide belt is discharging, declining transportation or homogenizing the powder or small granular material in quiescent condition. Our airslide belt is named as Airslide fabric, Airslide membrane, Air slide cloth, Air slide canvas, Air permeable fabric, and Fluidization cloth, fluidising fabric, etc by our customer. We adopt 100% polyester for airslide fabric material.

Our fabrics can be used at temperatures between -60°C and +150°C. The airslide fabrics are made from polyester yarns.
We are also, however, able to weave fabrics to our customers' specific demands for air permeability and mechanical strength.

Advantages

• No moisture absorption
• No caking
• Resistant to rotting and decomposition
• Complete unloading without residues
• Consistent fluidization over the complete surface
• Good resistance to abrasion
• Low wear and therefore longer life
• Low shrinkage even when used under hot and humid conditions

Working principle

In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.

In fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.

Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.

In cement vessel's hold:
The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Flat silo dome storage fluidised floor system bottom, the Air slide fabric airslide cloth canvas for material unloading

Working occasions

In industry

Power Stations
Filtered dust
Flue ash, discharging flue ash
Coal dust
Building and Construction
Cement, furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals,
Pure clay, phosphates, magnesite concentrate, finely ground
fluorid, production of aluminum
Chemical Industry
Thomas meal (Fertilizer)
Rubber compounds, sinter dust, catalysts
Sodium sulfate
Soap powder

In machinery:

Silos / Tanks
Discharging systems
Warehouse units
Mixing equipment
Homogenizing systems
Chute Bottoms
Conveyor systems
Ventilator systems
Aeration systems
Vehicles
Silo truck discharging cones
Railway wagon discharging cones
Vessel aeration & discharging bottoms
Container aeration & discharging bottoms
Powder Coating Machinery
Bottoms for sinter basin

Specification data:

Raw Material =100% spun fiber polyester

Weight in average = 4000 g/m ²
Thickness = 5mm
Mean Air Permeability = 400 m ³ /m ² h @350H ₂ O

Pressure: 2000pa for middle air resistance

4000pa for high air resistance

Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%

Max Width: 2800mm

Operating Temperature  < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C
