Quick Details
-
Product name:
-
entrance turnstile
-
Framework:
-
Standard 304 stainless steel housing
-
Gate opening/closing time:
-
<0.8s
-
Width:
-
<550mm
-
Interface:
-
RS485;
-
Speed:
-
30 people per minute
-
Power consumption:
-
100W
-
Thickness:
-
8-12mm
-
Length:
-
275-400
-
Traffic Speed:
-
30 people/minute (normally open), 25-30 people/minute (NC)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HFSecurity
-
Model Number:
-
S03 Swing turnstile
-
Product name:
-
entrance turnstile
-
Framework:
-
Standard 304 stainless steel housing
-
Gate opening/closing time:
-
<0.8s
-
Width:
-
<550mm
-
Interface:
-
RS485;
-
Speed:
-
30 people per minute
-
Power consumption:
-
100W
-
Thickness:
-
8-12mm
-
Length:
-
275-400
-
Traffic Speed:
-
30 people/minute (normally open), 25-30 people/minute (NC)

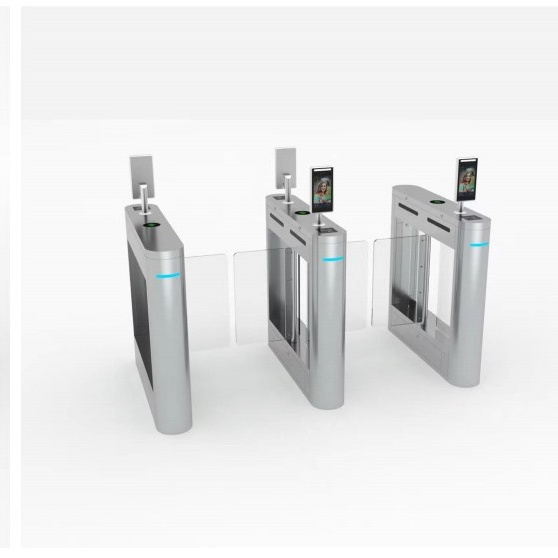

HFSecurity S03 Automatic Security Barrier Gate System Swing Turnstile Gate
HFSecurity offer pendulum gates, wing gates, stick gates, full height gates.
Also manufacture facial recognition access control, QR code scanner and rfid card scanner for complete access control system.
Box-type circular arc small swing gate is an intelligent channel management equipment carefully developed, developed and produced by our company. It is a high-tech product mainly for intelligent management of personnel channel. The equipment organically integrates mechanical, electronic, control and various identification technologies. Through the selection of various identification system equipment and the use of reliable security protection device, alarm device, direction indication, and extended-friendly LED count display interface, the intelligent control and management of the channel is coordinated.
Intelligent switch can be easily compatible with the use of IC card, ID card, barcode card, fingerprint and other card reading and identification equipment, to provide civilized and orderly access mode, effectively manage personnel in and out. It can be widely used in stations, docks, subways, factories, buildings, intelligent communities, hotels, clubs, enterprises and institutions and other occasions that need to realize intelligent management of the channel.
Details
|
Technical Parameters
|
|
|
|
|
|
|
|||
|
Gate opening and closing time
|
<0.8S
|
Channel width
|
≤550mm
|
|
|
|
|||
|
Voltage
|
AC220±10%V 50±10%HZ
|
Framework
|
Standard 304 stainless steel housing
|
|
|
|
|||
|
Supply Voltage
|
DC5v±0.25
|
Working environment
|
Suitable for indoor and outdoor
|
|
|
|
|||
|
Working temperature
|
-40℃~125℃
|
Protection level
|
IP10
|
|
|
|
|||
|
Relative humidity
|
40%~90%
|
Service life
|
>3 Million times
|
|
|
|
|||
|
Working current
|
150mA
|
Traffic direction
|
Support one-way and two-way (optional)
|
|
|
|
|||
|
Input interface
|
≤30 people/minute
|
Swivel angel of brake lever
|
120℃
|
|
|
|
|||
|
Iterm
|
Switch signal or 12V pulse signal
>100MS |
Communication interface（customizable)
|
RS485
|
|
|
|
|||
1. Power supply: AC220V± 20%V, 50Hz;
2. Temperature of the working environment: -40 ~70;
3. Relative humidity: less than 95%, no condensation;
4. Traffic speed: 30 people / minute (IC card);
5. Input interface: standard switch signal;
6. Communication interface: RS485 electrical appliance standard communication distance: <1200 meters.
functional characteristics:
7. Case adopts 304 stainless steel process;
8. Electronic control with electromagnet drive safe and reliable;
9. Power opening function: the gate lever automatically unlock, into a free passage mode, convenient
evacuation of people;
10. Anti-rotation function: after the gate rod rotates at a certain Angle, the strong reverse rotating gate rod will be regarded as driving the wrong way, and the system will automatically lock to prevent pedestrians from driving the wrong way
2. Temperature of the working environment: -40 ~70;
3. Relative humidity: less than 95%, no condensation;
4. Traffic speed: 30 people / minute (IC card);
5. Input interface: standard switch signal;
6. Communication interface: RS485 electrical appliance standard communication distance: <1200 meters.
functional characteristics:
7. Case adopts 304 stainless steel process;
8. Electronic control with electromagnet drive safe and reliable;
9. Power opening function: the gate lever automatically unlock, into a free passage mode, convenient
evacuation of people;
10. Anti-rotation function: after the gate rod rotates at a certain Angle, the strong reverse rotating gate rod will be regarded as driving the wrong way, and the system will automatically lock to prevent pedestrians from driving the wrong way
