Quick Details
-
Dimension(L*W*H):
-
9550*1000*1650
-
Application:
-
wood processing factories, wooden packaging factories, furniture factories, Manufacturing factories
-
Weight (KG):
-
1250 KG
-
Power (kW):
-
6.25kw/8.25kw/6.8kw/8.8kw
-
Marketing Type:
-
Hot Product
-

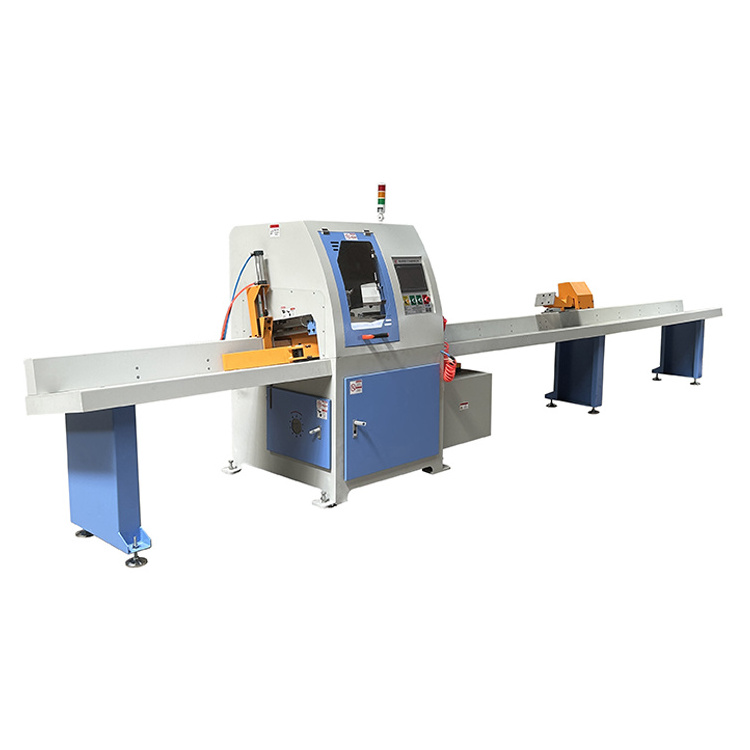

Product name:
-
Wood Cross Cut Saw
-
Feeding Table Length:
-
4000mm/6000mm(optional)
-
Cutting Width:
-
20-200mm/20-300mm/20-500mm(optional)
-
Cutting height:
-
10-120mm/10-150mm/10-160mm(optional)
-
Feeding speed:
-
35m/min
-
Cutting Motor Power:
-
5.5kw/7.5kw(optional)
-
Working mode:
-
Automatic feeding, automatic cutting
-
Saw Blade:
-
450mm/550mm(optional)
-
Sawing accuracy:
-
±1mm/±0.3mm(optional)
-
Pushing transmission mode:
-
Timing belt/Rack and pinion(optional)
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Bunching
-
Voltage:
-
380;220;415
-
Dimension(L*W*H):
-
9550*1000*1650
-
Application:
-
wood processing factories, wooden packaging factories, furniture factories, Manufacturing factories
-
Weight (KG):
-
1250 KG
-
Power (kW):
-
6.25kw/8.25kw/6.8kw/8.8kw
-
Marketing Type:
-
Hot Product
-
Product name:
-
Wood Cross Cut Saw
-
Feeding Table Length:
-
4000mm/6000mm(optional)
-
Cutting Width:
-
20-200mm/20-300mm/20-500mm(optional)
-
Cutting height:
-
10-120mm/10-150mm/10-160mm(optional)
-
Feeding speed:
-
35m/min
-
Cutting Motor Power:
-
5.5kw/7.5kw(optional)
-
Working mode:
-
Automatic feeding, automatic cutting
-
Saw Blade:
-
450mm/550mm(optional)
-
Sawing accuracy:
-
±1mm/±0.3mm(optional)
-
Pushing transmission mode:
-
Timing belt/Rack and pinion(optional)
Product Overview
FEATURES AT A GLANCE
The upper end is equipped with a pressing device, and both the feeding and discharging ends are equipped with pressing rollers to achieve all-round pressing and ensure stable sawing
Add an upper pressing roller at the discharge end to ensure stable sawing accuracy.
Simply input the size on the touch screen, intelligently calculate the fixed length sawing, and the same raw material can be sawed into up to 40 different arbitrary sizes.
Adopting high-quality electrical appliances and PLCs, with diverse functions and stable performance.
Adopting gear and rack cooperation, the servo motor drives the reducer to push wood, which is durable and improves the pushing accuracy.
Equipped with a dust blowing air gun, it is convenient to clean wood slag and dust at any time.
PRODUCT SPECIFICATIONS
|
Modle
|
BC-450
|
BCC-450
|
BC-550
|
BCC-550
|
|||
|
Feed pushing servo motor
|
0.75kw
|
1.3kw
|
0.75kw
|
1.3kw
|
|||
|
Saw blade type
|
450*3.6*3.0*100T
|
450*3.6*3.0*100T
|
550*4.8*4.6*120T
|
550*4.8*4.6*120T
|
|||
|
Sawing size
|
200*120(mm)
|
200*120(mm)
|
300*150(mm)
|
300*150(mm)
|
|||
|
Sawing accuracy
|
±1mm
|
±0.3mm
|
±1mm
|
±0.3mm
|
|||
|
Pushing conveyor mode
|
Timing belt
|
Rack and pinion
|
Timing belt
|
Rack and pinion
|
|||
|
Saw blade motor
|
5.5kw
|
5.5kw
|
7.5kw
|
7.5kw
|
|||
|
Main engine size(mm)
|
1000*900*1650
|
1000*900*1650
|
1100*1000*1700
|
1100*1000*1700
|
|||
|
Feed platform length
|
3m/5m/7m(Optional)
|
|
|
|
|||
|
Discharge platform length
|
1.5m(Optional)
|
|
|
|
|||
|
Saw blade speed
|
3060r/min
|
|
|
|
|||
|
Feeding speed
|
0-60m/min
|
|
|
|
|||
|
Reverse speed
|
0-70m/min
|
|
|
|
|||
|
Voltage
|
380v 50hz 3phase
|
|
|
|
|||
SUCCESSFUL PROJECT
Sawing pallet material
Solid wood preparation
Sawing bed board material
APPLICATION EXAMPLES
SIMILAR PRODUCTS
BC-450
The material pushing method adopts synchronous belt transmission, which is suitable for sawing processing with less strict precision requirements, and is economical and affordable.
BCX-4000
It can not only cut horizontally, but also cut 45 degree triangles, trapezoids, parallelograms, and right angled trapezoids, making it versatile for one machine.
BCT-4000
Pushing type optimal saw, using fluorescence sensors to identify and cut lines, remove scars, optimize size, and maximize wood savings.
