Quick Details
-
Productivity:
-
180 / 125m³/h
-
Place of Origin:
-
China
-
Brand Name:
-
Volvo FM500 84R B
-
Weight:
-
56000 kg
-
Dimension(L*W*H):
-
13860*2550*4000mm
-
Product Name:
-
concrete pump truck
-
model:
-
SYM5446THBF 560C-8A
-
Emission Standards:
-
Country VI
-
Maximum speed:
-
90km/h
-
After Warranty Service:
-
Video technical support, Online support,
-
After-sales Service Provided:
-
Video technical support, Online support
-
Model:
-
SYM5446THB 560C-8A
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
56m
-
Max. horizontal conveying distance:
-
51m
-
Productivity:
-
180 / 125m³/h
-
Place of Origin:
-
China
-
Brand Name:
-
Volvo FM500 84R B
-
Weight:
-
56000 kg
-
Dimension(L*W*H):
-
13860*2550*4000mm
-
Product Name:
-
concrete pump truck
-
model:
-
SYM5446THBF 560C-8A
-
Emission Standards:
-
Country VI
-
Maximum speed:
-
90km/h
-
After Warranty Service:
-
Video technical support, Online support,
-
After-sales Service Provided:
-
Video technical support, Online support
-
Model:
-
SYM5446THB 560C-8A

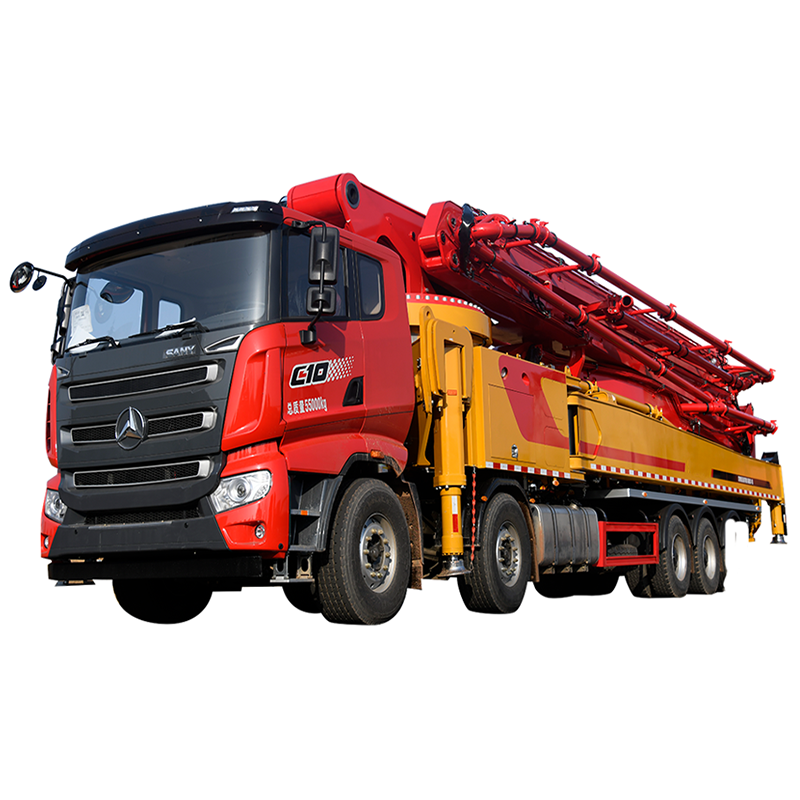

Hot 56m 4-Axle Concrete Pump Truck SYM5446THBF 560C-8A Hydraulic Concrete Pump High Performance Chassis For Sale
|
Vehicle parameters |
|
|
full length |
13860mm |
|
Total width |
2550mm |
|
Total height |
4000mm |
|
Gross weight |
44000kg |
|
Vertical height of boom |
56m |
|
Horizontal length of boom |
51m |
|
Vertical depth of boom |
36.6m |
|
Minimum expansion height |
15.2m |
|
Length of first section arm |
11390mm |
|
First section arm angle |
89 |
|
Length of the second section |
9230mm |
|
The second section of the arm angle |
180 |
|
Third section arm length |
8750mm |
|
Third section arm angle |
180 |
|
Fourth section arm length |
11070mm |
|
The fourth section of the arm angle |
240 |
|
The fifth section arm length |
8080mm |
|
The fifth section of the arm angle |
210 |
|
Sixth section arm length |
3350mm |
|
The sixth section of the arm angle |
110 |
|
Turntable rotation angle |
±360 |
|
Seventh arm |
\mm |
|
Width of front outrigger |
9470mm |
|
Width of rear outrigger |
12680mm |
|
Theoretical displacement of concrete is low |
180m³/h |
|
Theoretical displacement of concrete at high pressure |
125m³/h |
|
Theoretical pumping pressure is low |
8.3Mpa |
|
Theoretical pumping pressure is high |
12Mpa |
|
Theoretical pumping times |
29 times/minute |
|
Theoretical pumping times |
19 times/minute |
|
Inner diameter of delivery cylinder |
260mm |
|
Conveying cylinder stroke |
2100mm |
|
Hydraulic system |
Open |
|
System oil pressure |
32Mpa |
|
Fuel tank capacity |
680L |
|
Water tank volume |
620L |
|
Conveying pipe diameter |
125mm |
|
End hose length |
3m |
|
End hose diameter |
125mm |
|
Chassis brand |
Vo-lvo |
|
Chassis model |
FM500 84R B |
|
engine model |
D13K500EU6 |
|
Maximum net engine power |
375/1800kW/rpm |
|
Emission Standards |
Country VI |
|
Fuel tank volume |
400L |
|
Displacement |
12.777L |
|
Maximum speed |
90km/h |
